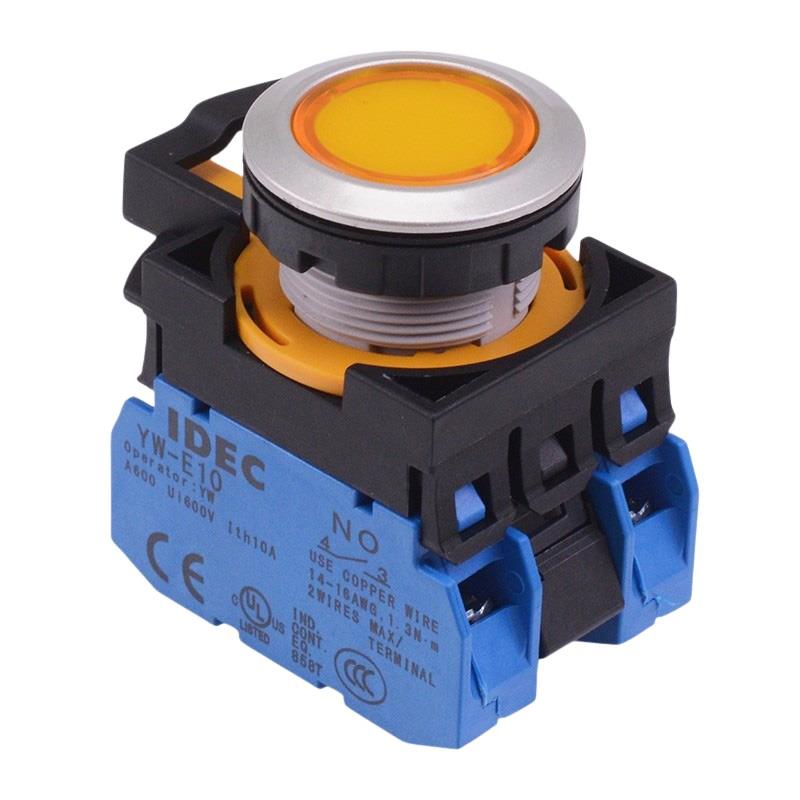

CW4L-M1E20Q3Y Yellow 12V illuminated Metallic Momentary Push Button Switch 2NO IP65 IDEC

The CW4L-M1E20Q3Y is a flush mount industrial push button switch featuring a sleek and compact metallic design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The metallic design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek metallic design makes the switch perfect for use with industrial machines and control panels.

Yellow Button

12V LED illumination

2NO contacts

Screw contact blocks

Momentary operation

22.3mm mounting hole

IP65 protection level

2.5mm thick bezel

39.9mm depth behind the panel

Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
