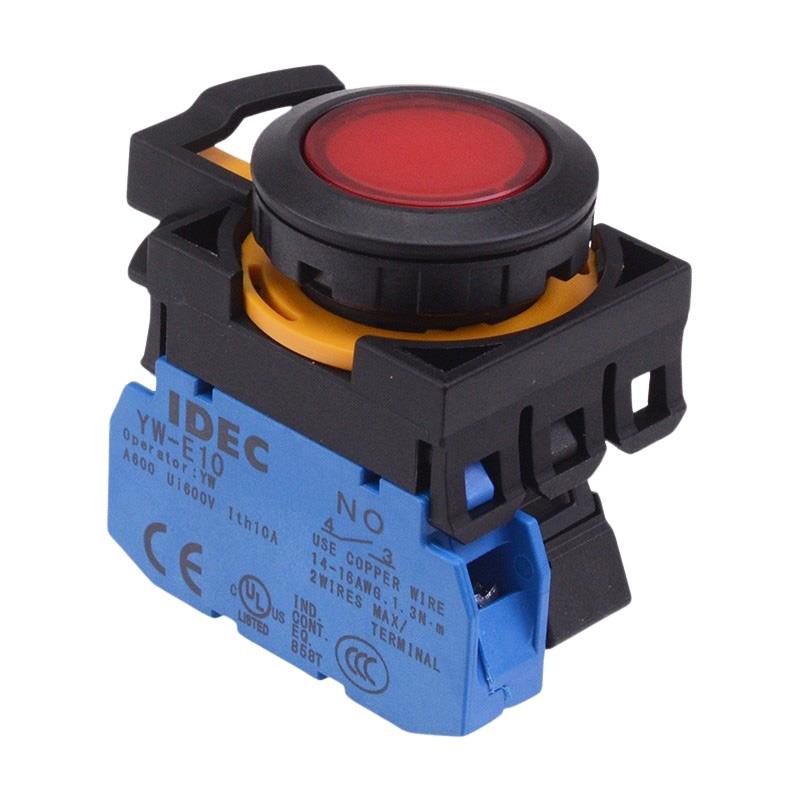

CW1L-M1E10Q4R Red 24V illuminated Momentary Push Button Switch 1NO IP65 IDEC

The CW1L-M1E10Q4R is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

Red button

24V LED illumination

1NO contacts

Screw contact blocks

Momentary operation

22.3mm mounting hole

IP65 protection level

2.5mm thick bezel

39.9mm depth behind the panel

Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
