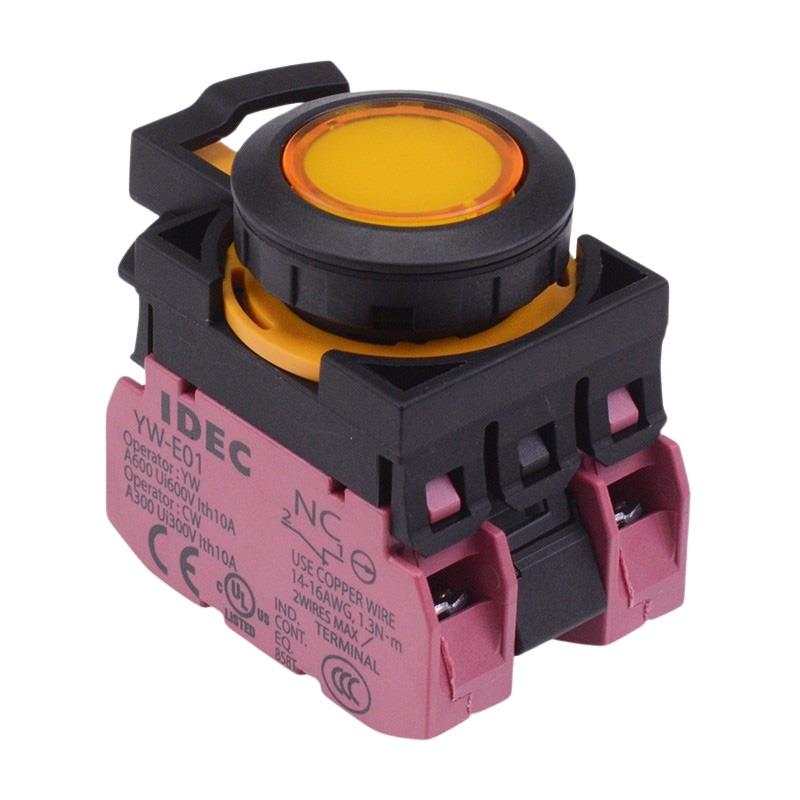

CW1L-A1E02Q4Y Yellow 24V illuminated Maintained Push Button Switch 2NC IP65 IDEC

The CW1L-A1E02Q4Y is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

Yellow Button

24V LED illumination

2NC contacts

Screw contact blocks

Maintained operation

22.3mm mounting hole

IP65 protection level

2.5mm thick bezel

39.9mm depth behind the panel

Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
