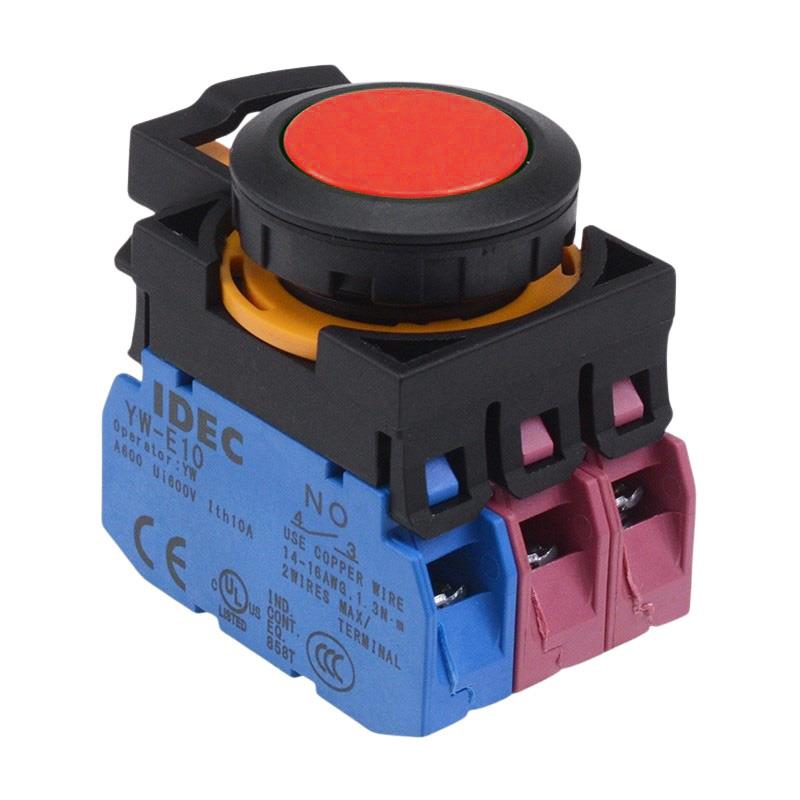

CW1B-A1E12R Red Maintained Push Button Switch 1NO-2NC IP65 IDEC

The CW1B-A1E12R is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

Red button

1NO-2NC contacts

Screw contact blocks

Maintained operation

22.3mm mounting hole

IP65 protection level

2.5mm thick bezel

39.9mm depth behind the panel

Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
