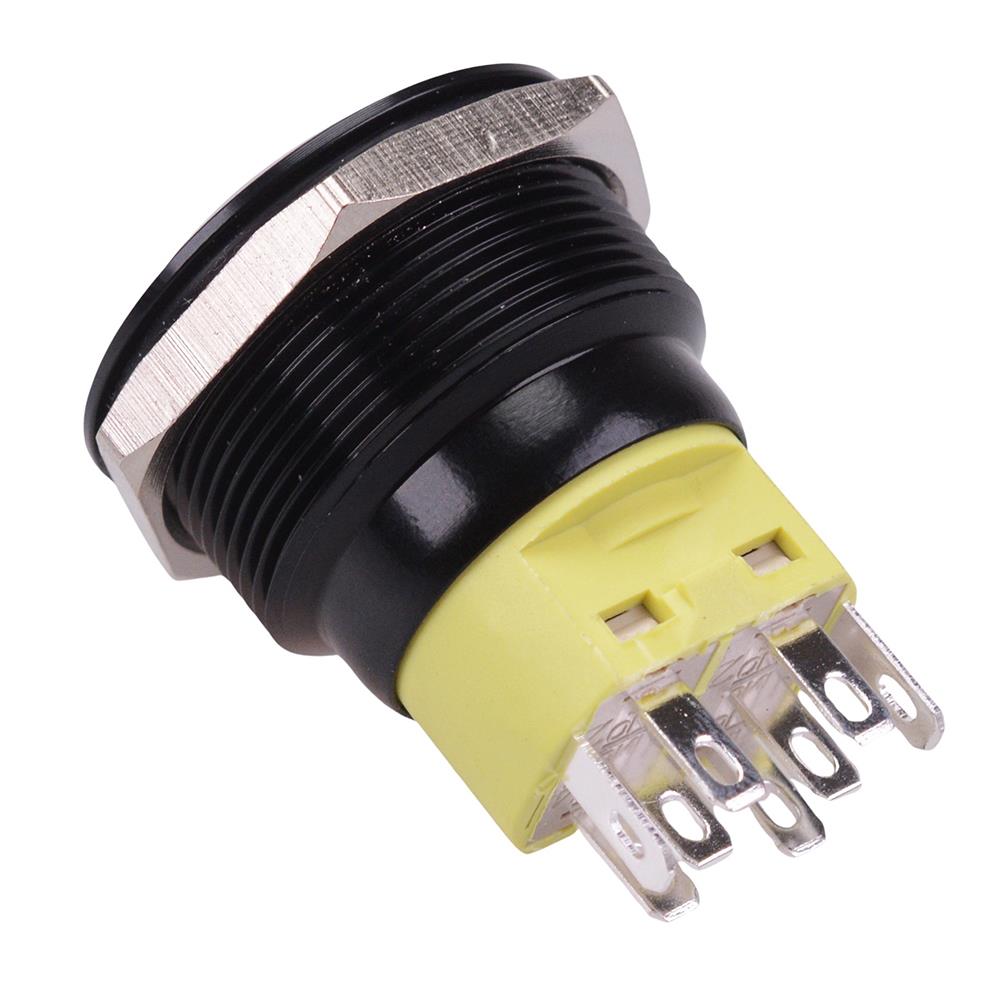

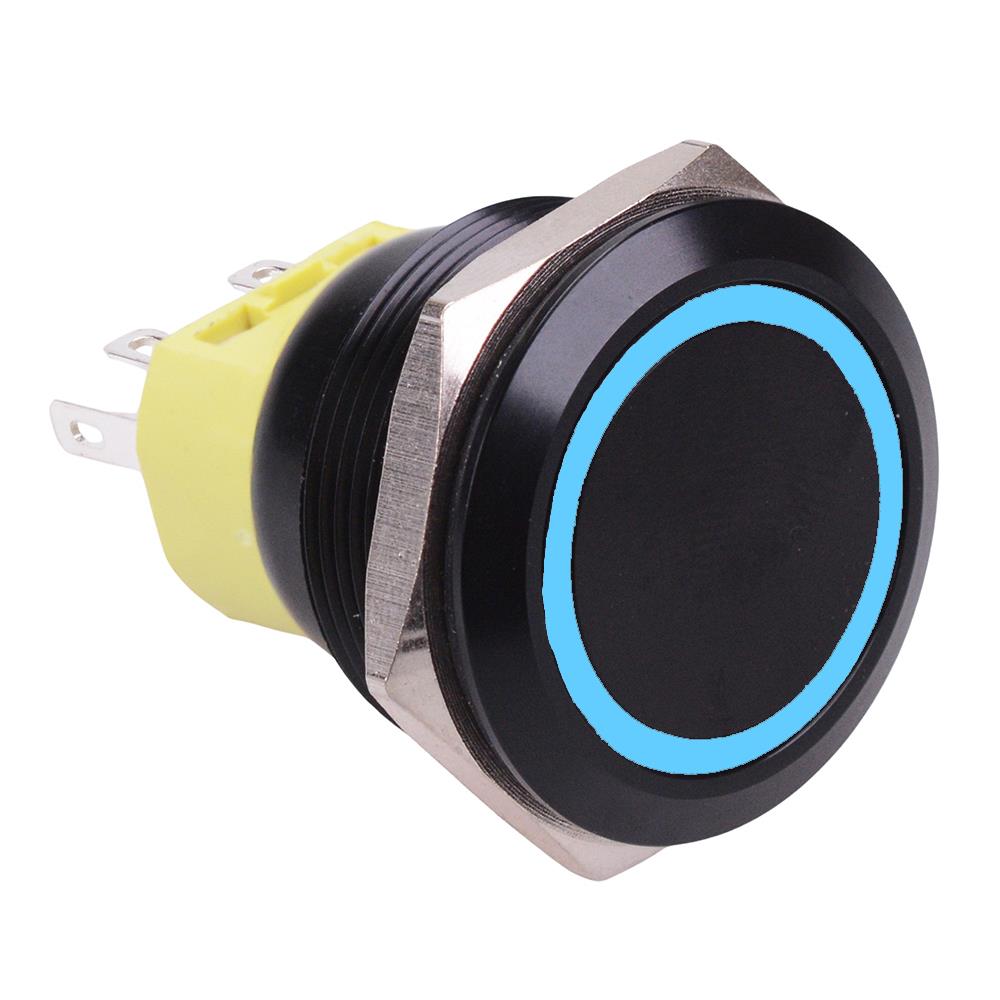

Blue On-On 25mm Black Vandal Latching Push Button Switch DPDT 12V

Latching vandal resistant 25mm push button switch featuring a blue 12V LED and DPDT contacts. The switch is manufactured from zinc and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.

Latching action

Blue LED

12V illumination voltage

IP67 protection rating

25mm panel cut-out diameter

2NO/2NC contacts

2.8mm terminals

Rating: 5A 250VAC

Dimensions: 35.6 x 28mm (length x diameter)
