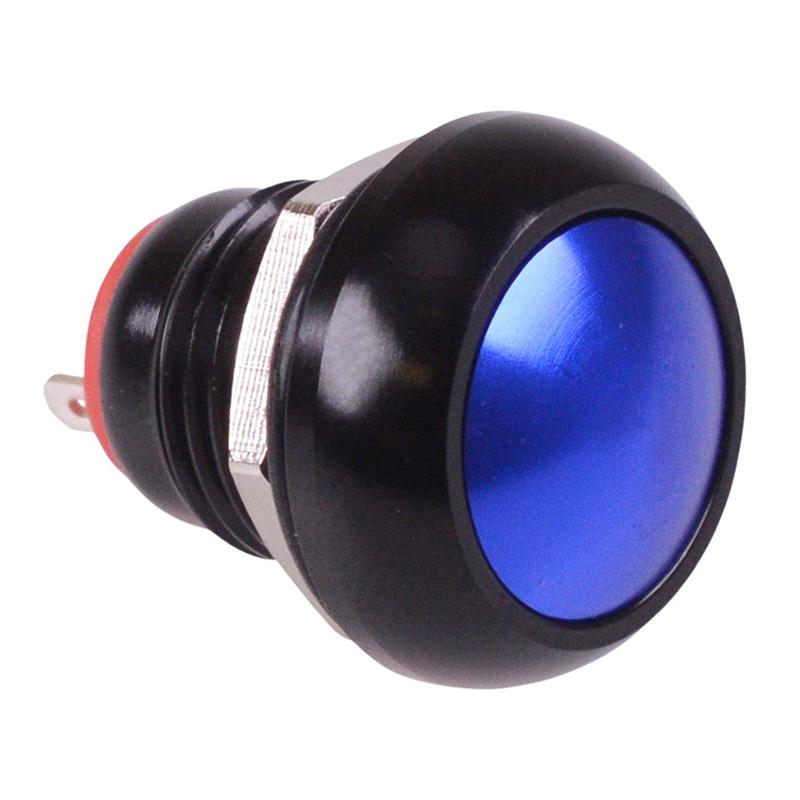

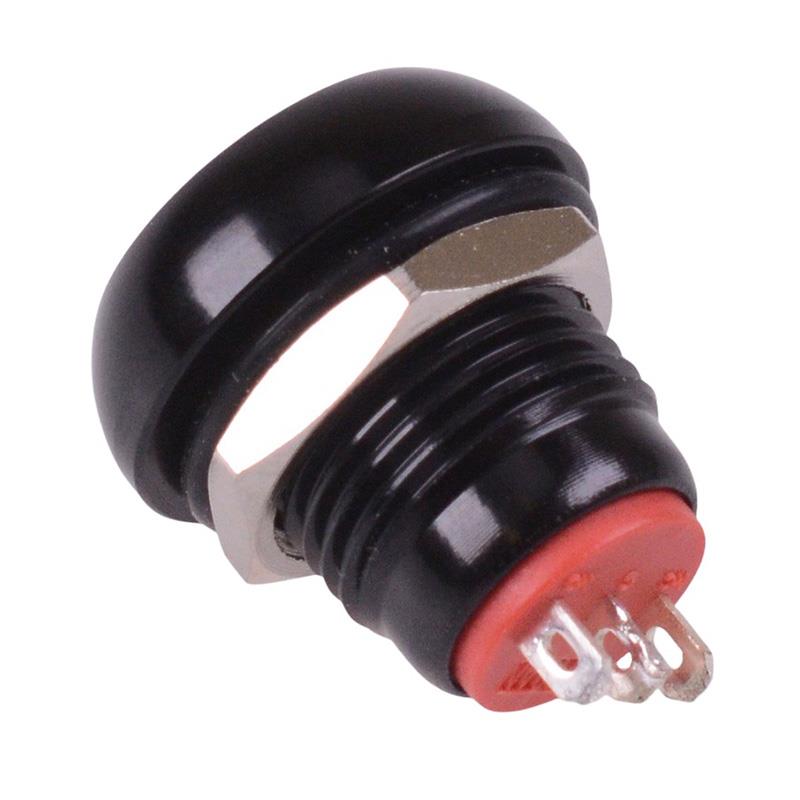

Blue Latching 12mm Metal Round Push Button Switch NO/NC

Blue latching push button switch featuring a round actuator and normally open contacts. The switch features an aluminium housing and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

Latching operation

NO/NC contacts

IP40 protection rating

Solder terminals

Panel cut-out: 12mm

Panel thickness: 4mm max

Rating: 0.1A 12V

Dimensions: 22.3 x 17.8mm (height x diameter)
