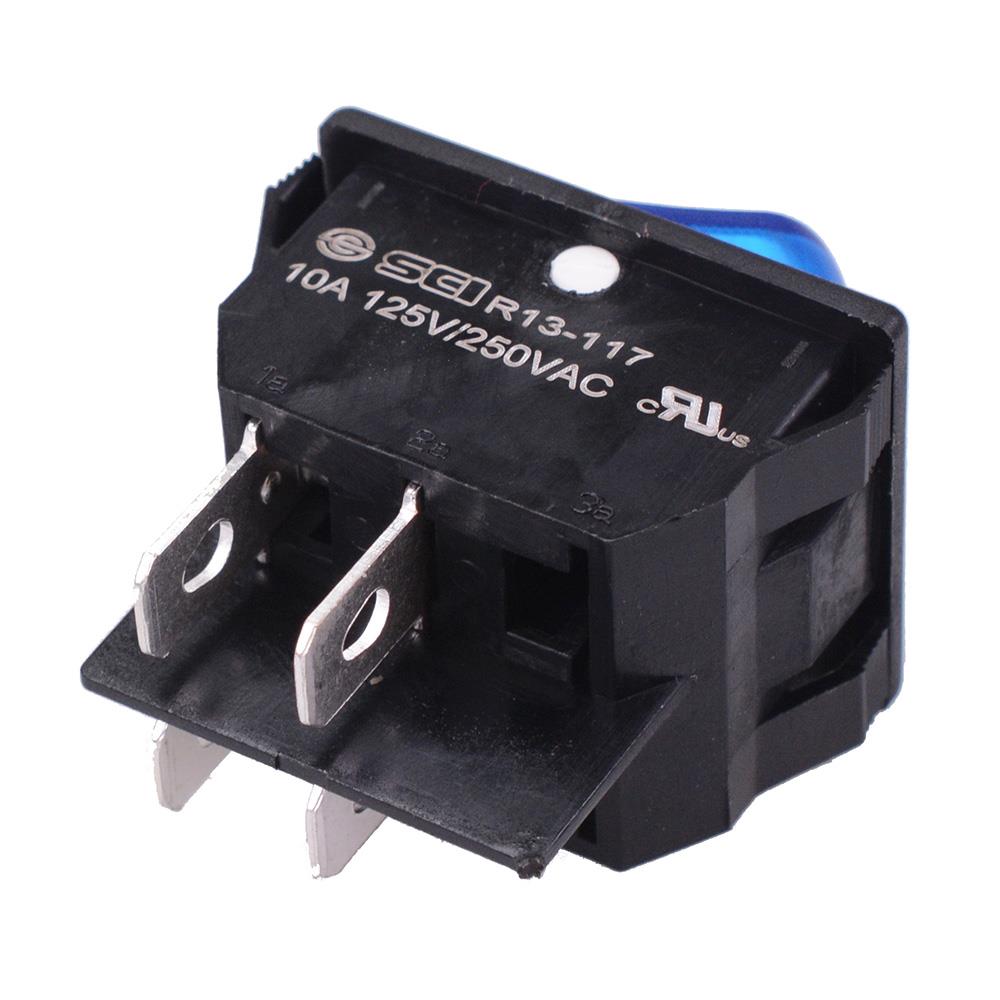

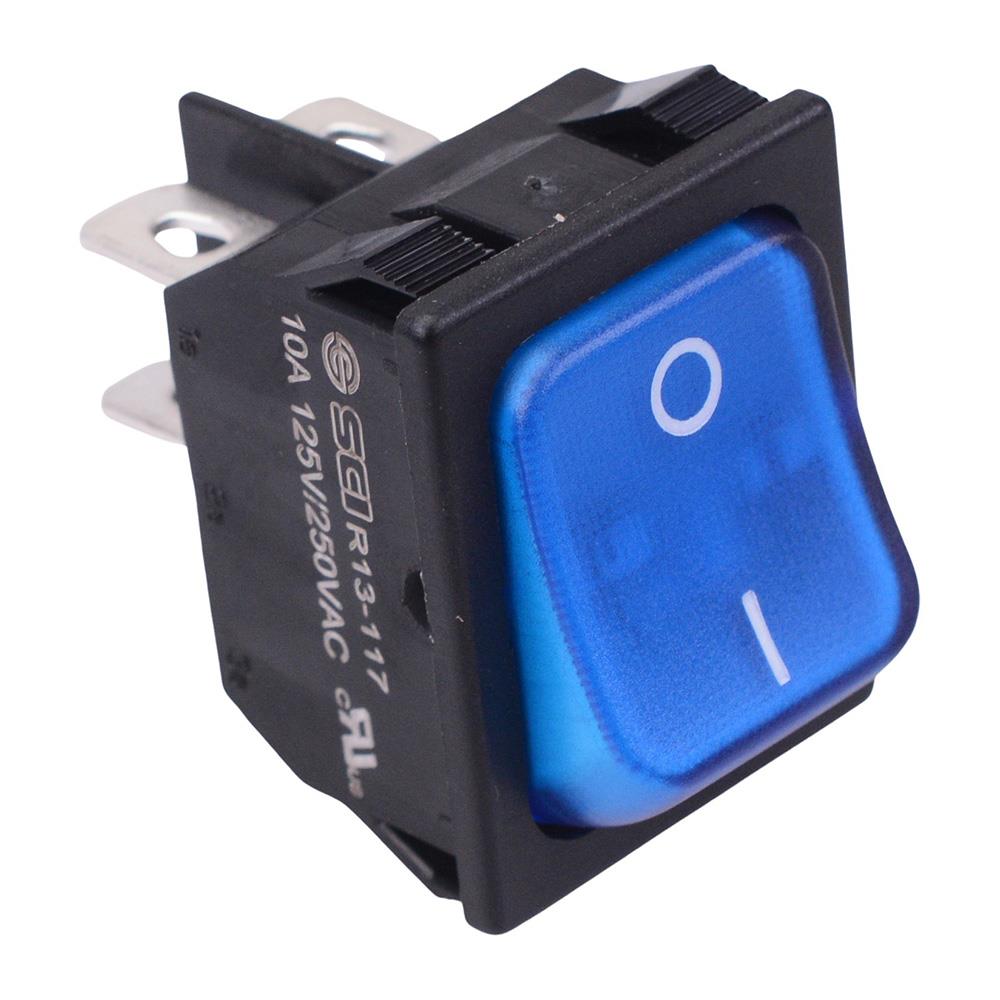

Blue 230V illuminated On-Off Rectangle Rocker Switch DPST 10A R13-117B-01

Blue illuminated rectangle rocker switch featuring DPST contacts and On-Off function. The switch requires a 30.2x22.2mm panel cut-out and features quick connect 6.3mm terminals. The switch is rated up to 16A making it suitable for a wide range of AC applications including appliances and industrial.

Blue neon illumination

illumination voltage: 230VAC

Function: On-Off

Contacts: DPST

Panel cut-out: 30.2x22.2mm

Panel thickness: 0.75-3mm

Rating: 10A 250VAC, 16A 125VAC

6.3mm quick connect terminals

Dimensions: 36.3 x 25.2 x 31.5mm (height x width x length)
