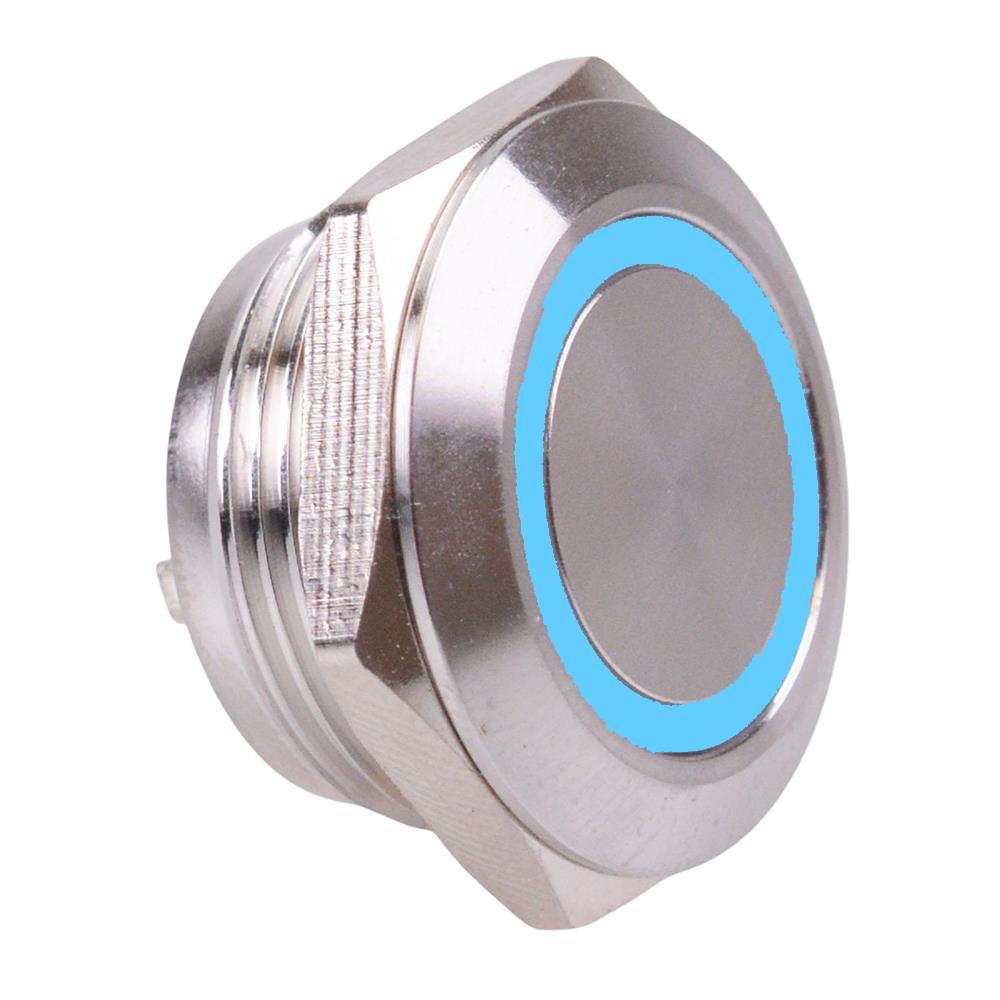

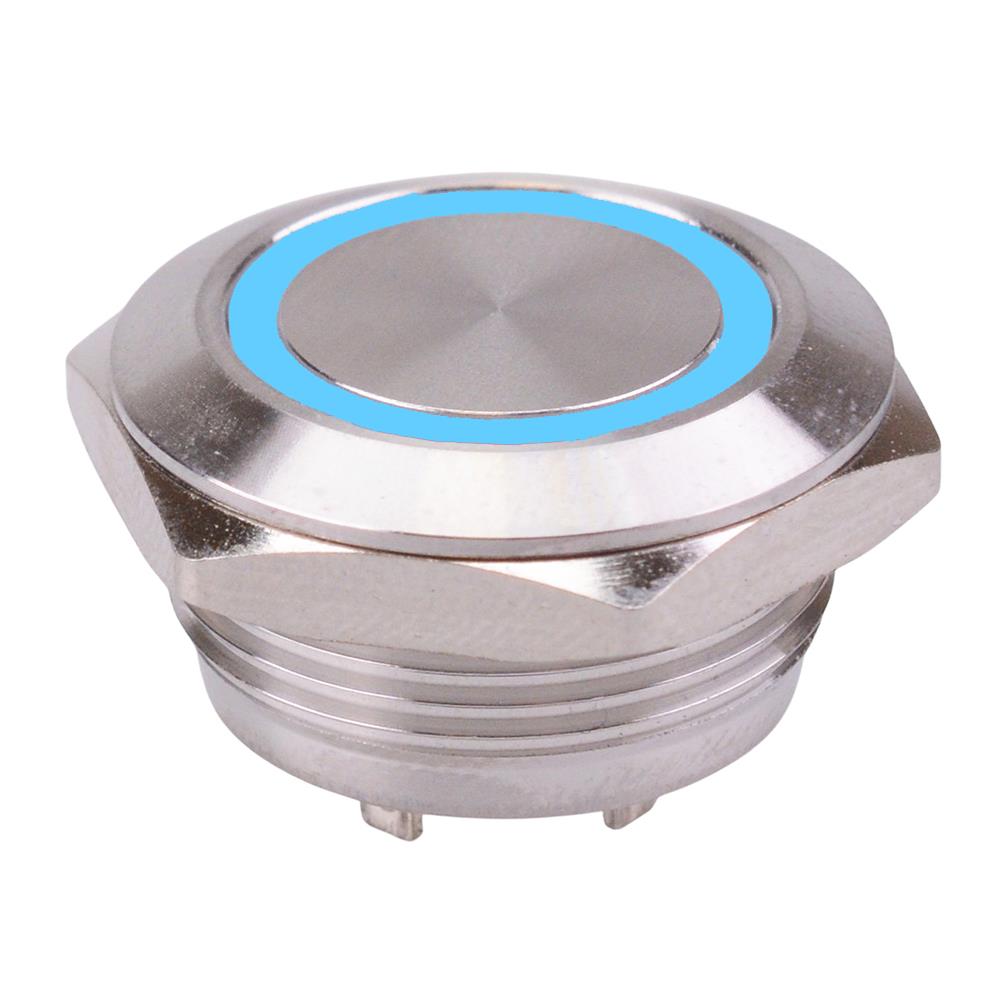

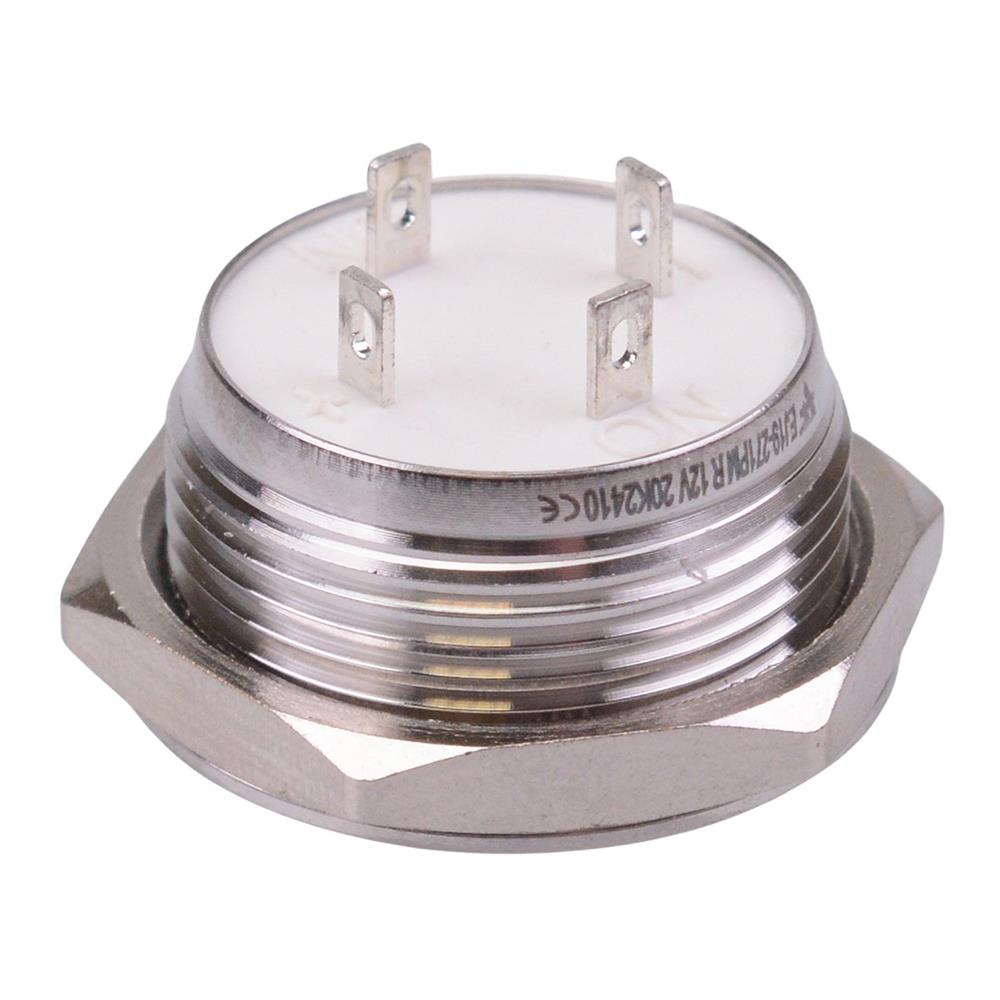

Blue 12V Vandal Off-(On) Momentary 19mm Short Push Button Switch SPST

Short body anti vandal momentary push button switch manfuactured from stainless steel, featuring a blue LED. The switch features NO / NC contacts and requires a 19mm panel cut-out making it suitable for 12V applications with limited space behind the panel.

Momentary switch action

SPST-NO contacts

Blue 12V LED

Panel cut-out: 19mm

Maximum panel thickness: 3mm

Rating: 50mA 24VDC

Protection rating: IP67

Solder terminals

Dimensions: 14.1 x 22mm (Length x Diameter)
