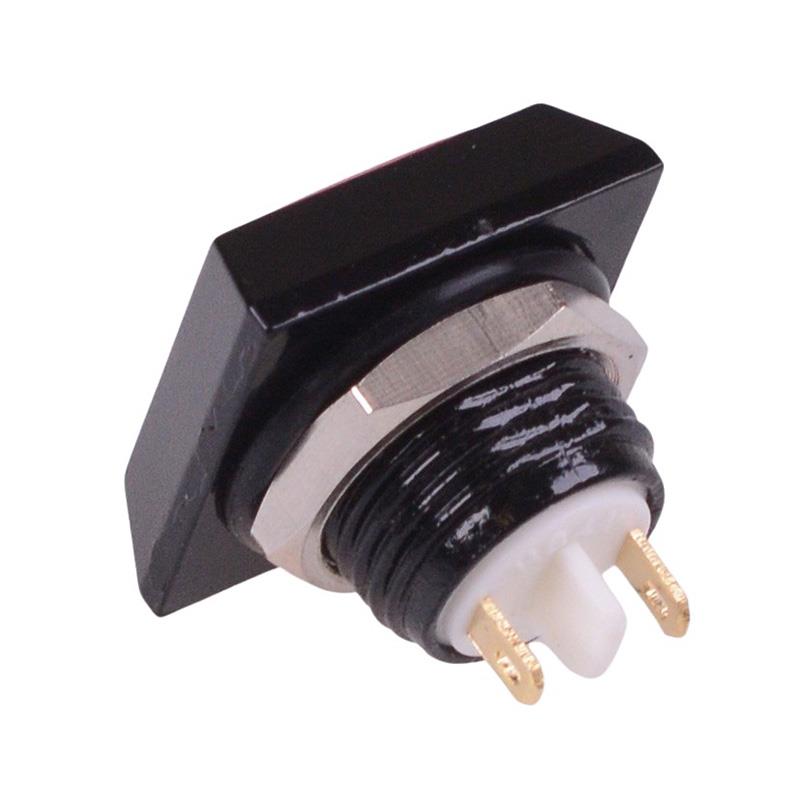

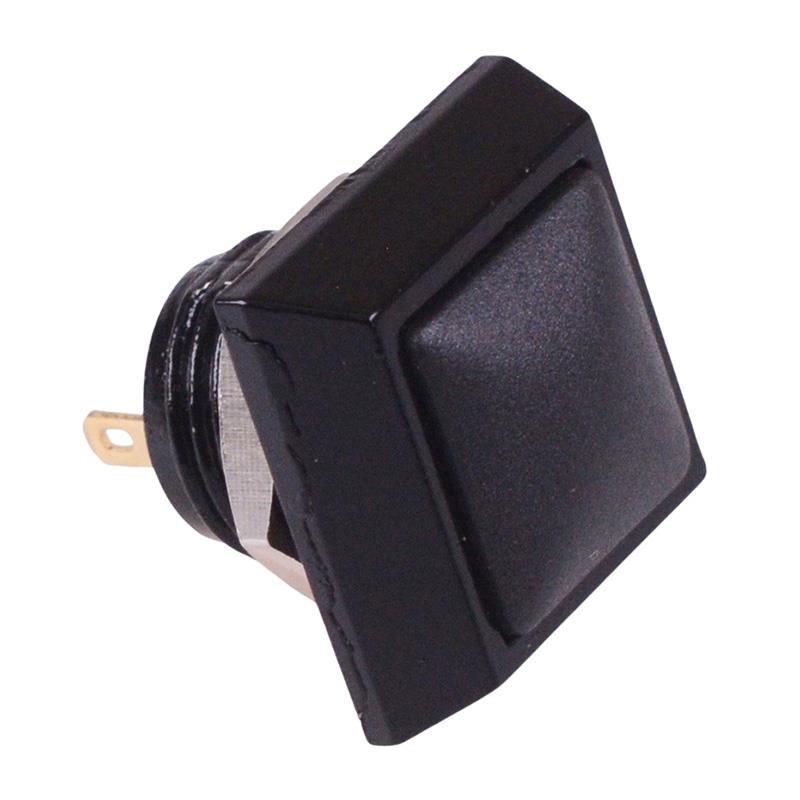

Black Square Off-(On) Momentary 12mm Metal Push Button Switch IP65 SPST

Black momentary push button switch featuring a square actuator and normally open contacts. The switch features a zinc alloy housing and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

Momentary operation

SPST-NO contacts

IP65 protection rating

Solder terminals

Panel cut-out: 12mm

Panel thickness: 5mm max

Rating: 3A 250V

Dimensions: 20.2 x 17.6 x 17.6mm (height x width x length)
