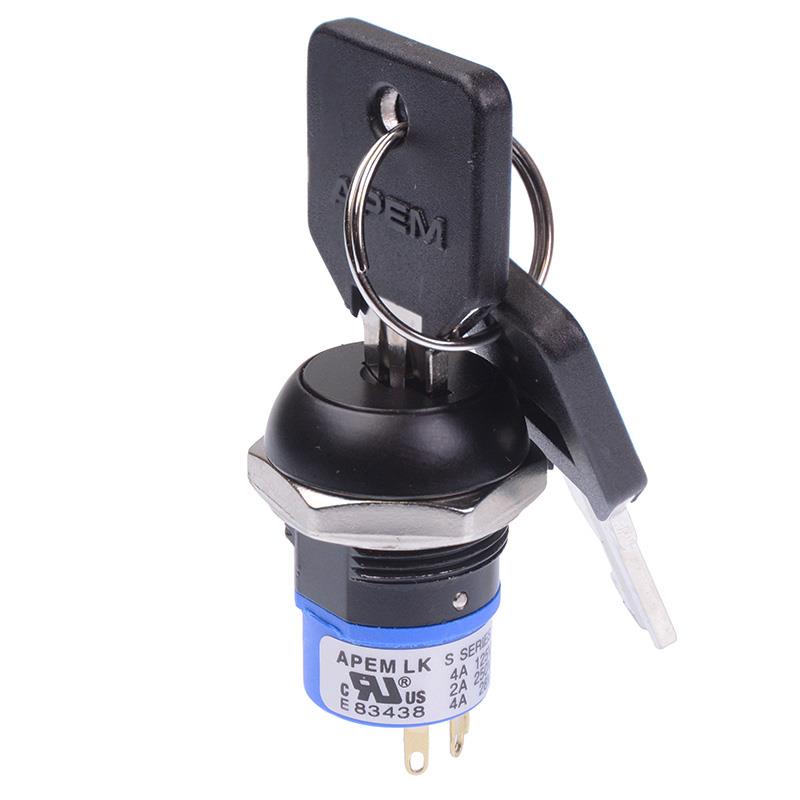

Black On-(On) 2 Way Momentary 19mm Key Switch SPDT 4A LK5AGB126M3

Black On-(On) 2 Way Momentary 19mm Key Switch SPDT 4A LK5AGB126M3

£20.25
£16.97 £20.25
Sale Sold out

Order Code: 485821

Delivery calculated at checkout.
Available Online Only

20 in stock
View full details

Product Description

The LK5AGB126M3 is a high quality key operated switch from the LK series manufactured by APEM. The switch features SPDT contacts and 2 positions with key withdrawal in position 1. The switch has a black finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

  • 2 positions
  • Momentary switching in position 2
  • SPDT contacts
  • Black finish
  • Key withdrawal in position 1
  • Panel cut-out: 19mm
  • Indexing: 45°
  • Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC
  • Mechanical and electrical life: 6000 cycles at full load
  • Dimensions: 28.8 x 22mm (length x diameter)
