Black On-Off Latching 12mm Red LED Push Button Switch IP65 SPST

Black On-Off Latching 12mm Red LED Push Button Switch IP65 SPST

£5.00
£3.52 £5.00
Sale Sold out

Order Code: 490280

Delivery calculated at checkout.
Available Online Only

Low stock: 1 left
View full details

Product Description

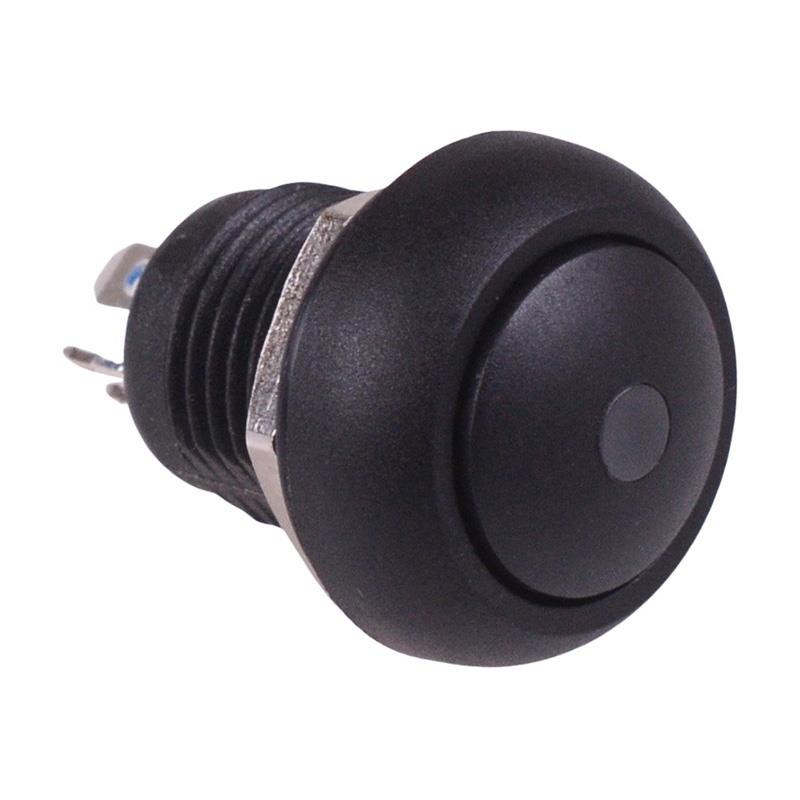

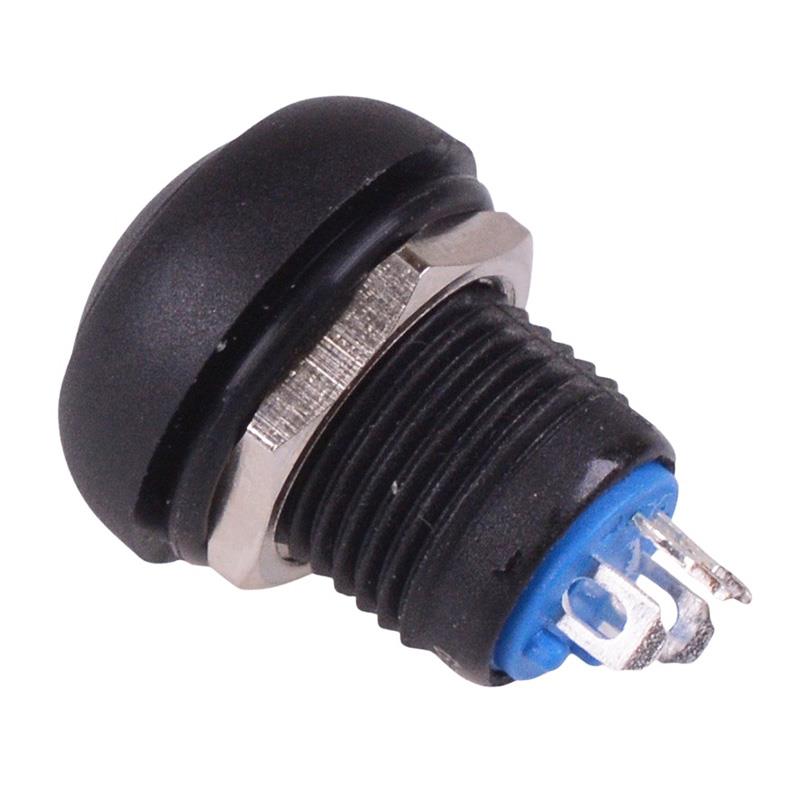

Black latching push button switch featuring a round actuator and red LED. The switch features IP65 protection rating and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

  • Latching operation
  • SPST contacts
  • IP65 protection rating
  • 2.8x0.5mm quick connect terminals
  • LED voltage: 3V
  • Rated current: 20mA
  • Panel cut-out: 12mm
  • Panel thickness: 6mm max
  • Rating: 2A 250V
  • Dimensions: 24.75 x 18mm (height x diameter)
