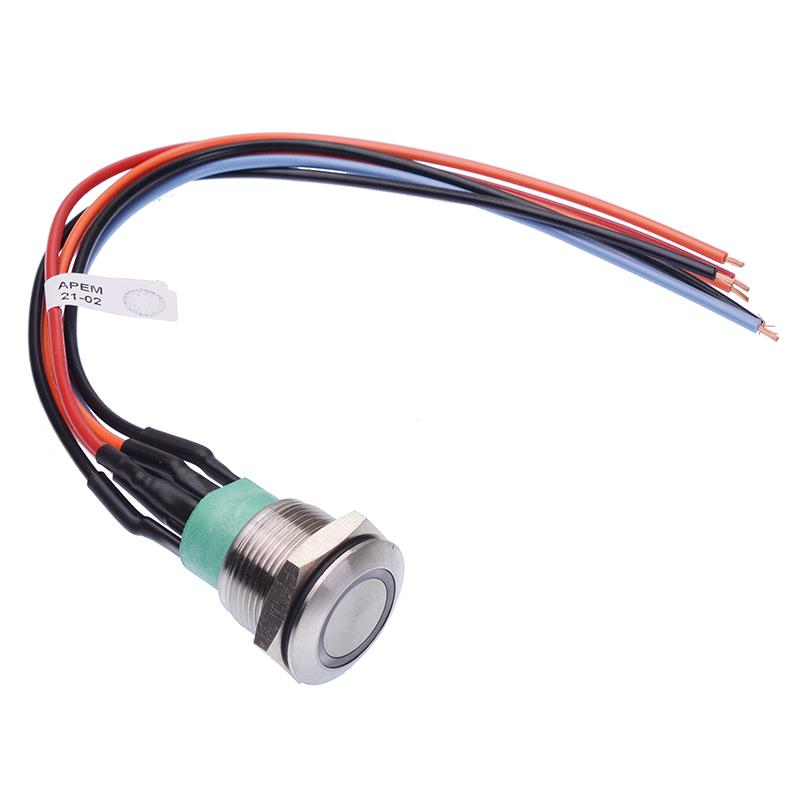

AV9V12F1020840K Momentary 19mm Green 12V LED illuminated Vandal Push Button Switch IP67 APEM

The AV9V12F1020840K is a security vandal resistant push button switch with green illuminated ring and momentary NO/NC contacts. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.

Momentary NO/NC contacts

Green illuminated ring LED

12V illumination voltage

Flat actuator

Long life

20cm flying leads

Stainless steel brushing

IP67 protection level

Panel cut-out: 19.2mm

Rating: 1A 30VDC

Panel thickness: 1-6mm

Dimensions: 25.9 x 22mm (length x diameter)
