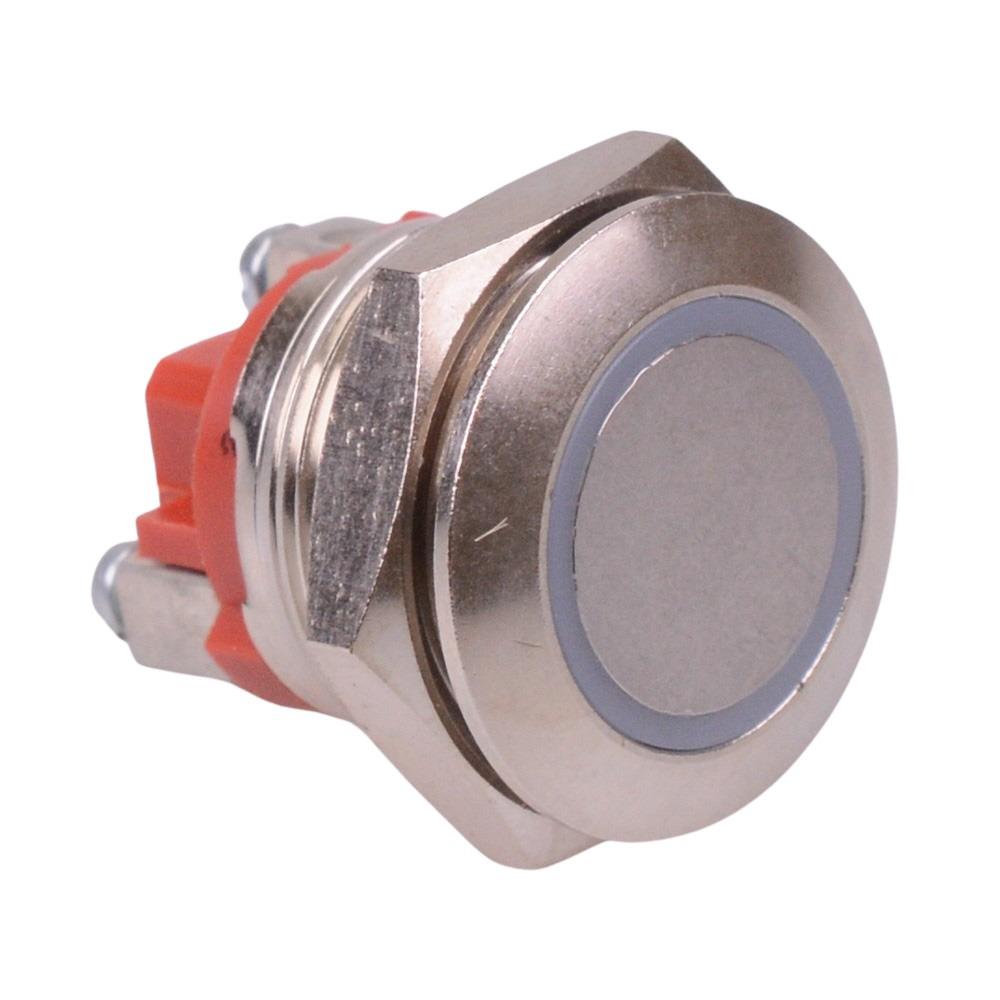

AV9SLD9086002 APEM Momentary 19mm Red LED illuminated Vandal Push Button Switch

The AV9SLD9086002 is a security vandal resistant push button switch with illuminated ring and momentary NO/NC contacts. The switch features a stainless steel bushing, suitable for applications requiring a reliable and durable switch over a long lifespan.

Momentary NO/NC contacts

Red LED illumination

LED voltage: 1.95V

Flat actuator

Long life

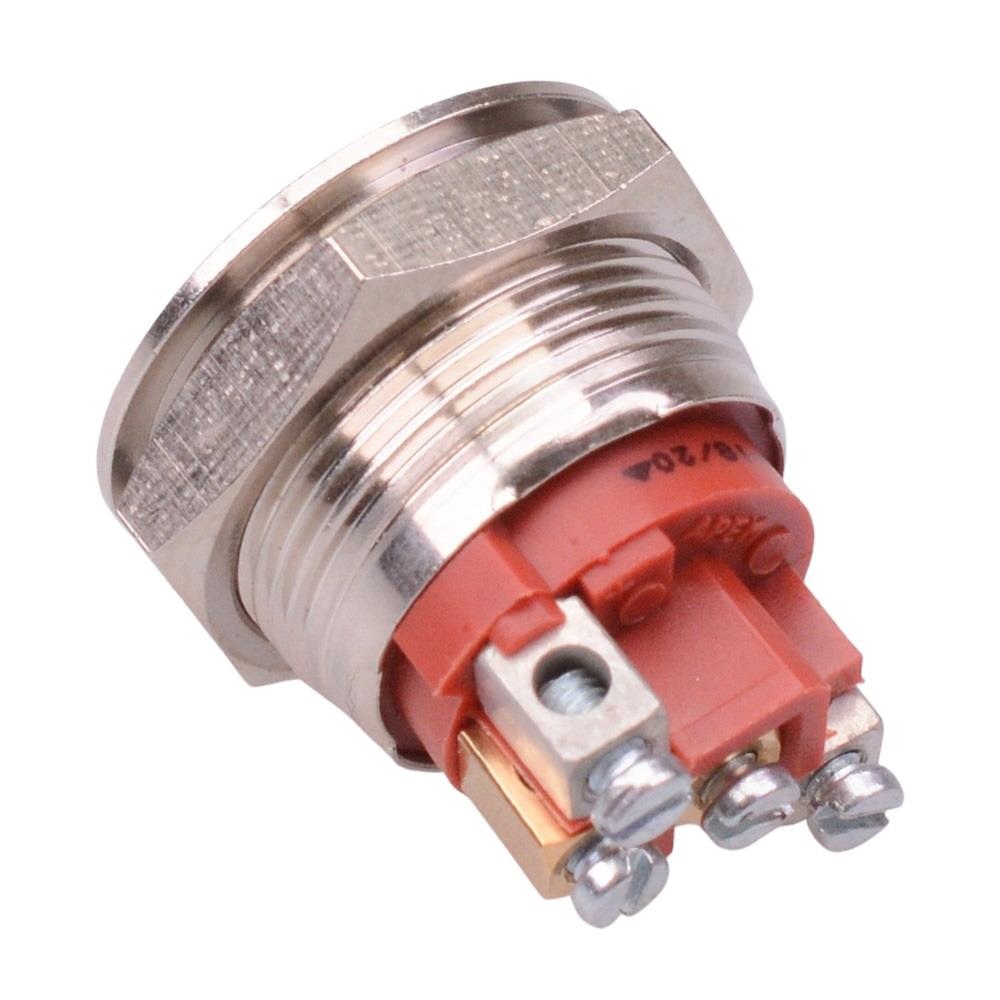

Screw terminals

Gold plated contacts

Nickel plated brass brushing

IP67 protection level

Panel cut-out: 19.2mm

Rating: 50mA 24VDC

Panel thickness: 1-6mm

Dimensions: 27.1 x 22.0mm (length x diameter)
