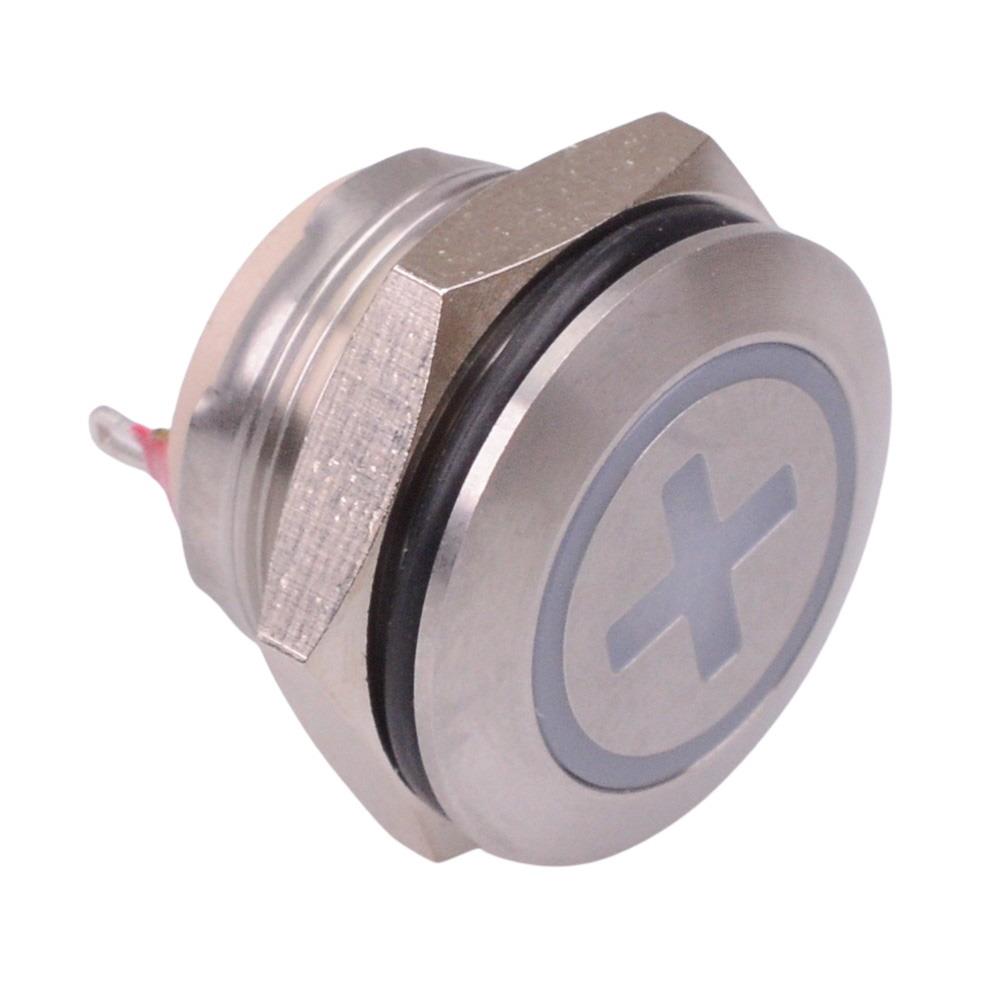

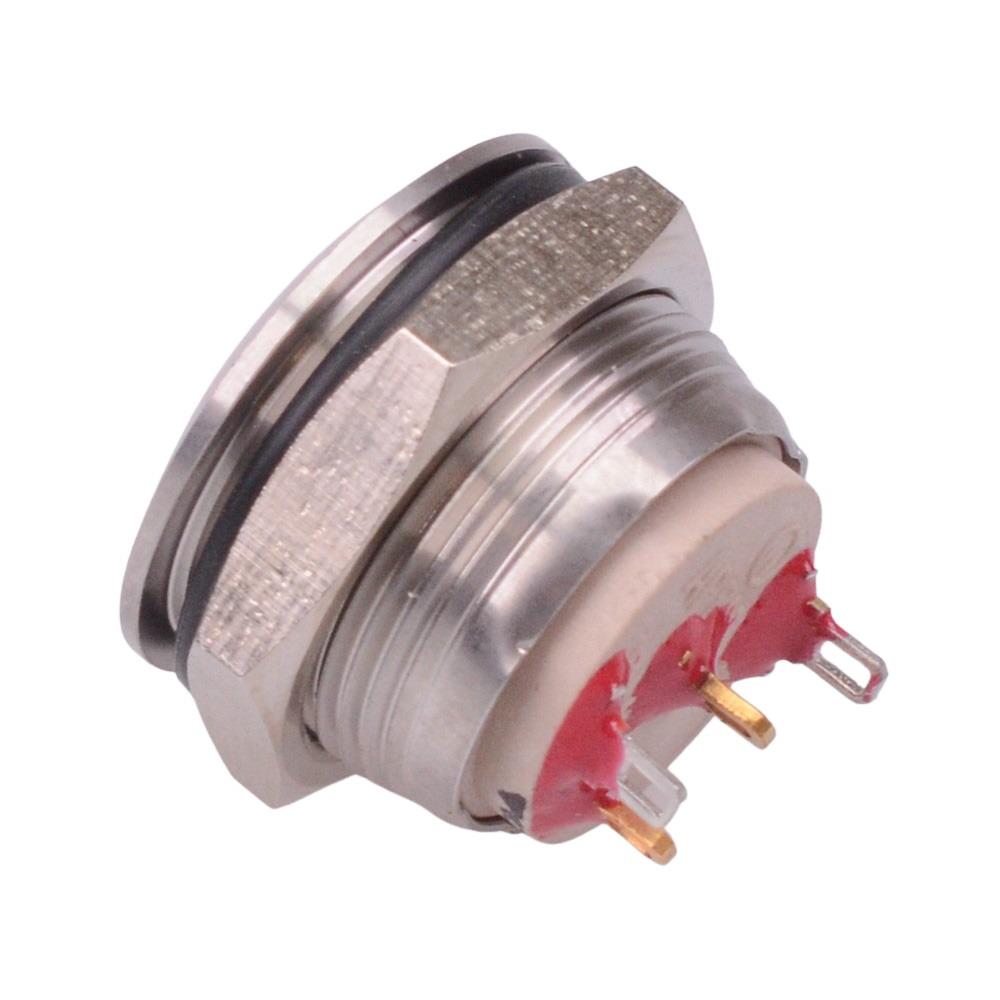

AV9SLD2482010K APEM Momentary 19mm Red/Green LED illuminated Vandal Push Button Switch IP67

The AV9SLD2482010K is a security vandal resistant push button switch with illuminated ring and momentary NO/NC contacts. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.

Momentary NO/NC contacts

Red / green LED illumination

LED voltage: red 1.95V, green 4V

Flat actuator with Cancel symbol

Long life

Solder terminals

Gold plated contacts

Stainless steel brushing

IP67 protection level

Panel cut-out: 19.2mm

Rating: 50mA 24VDC

Panel thickness: 1-6mm

Dimensions: 18.0 x 22.0mm (length x diameter)
