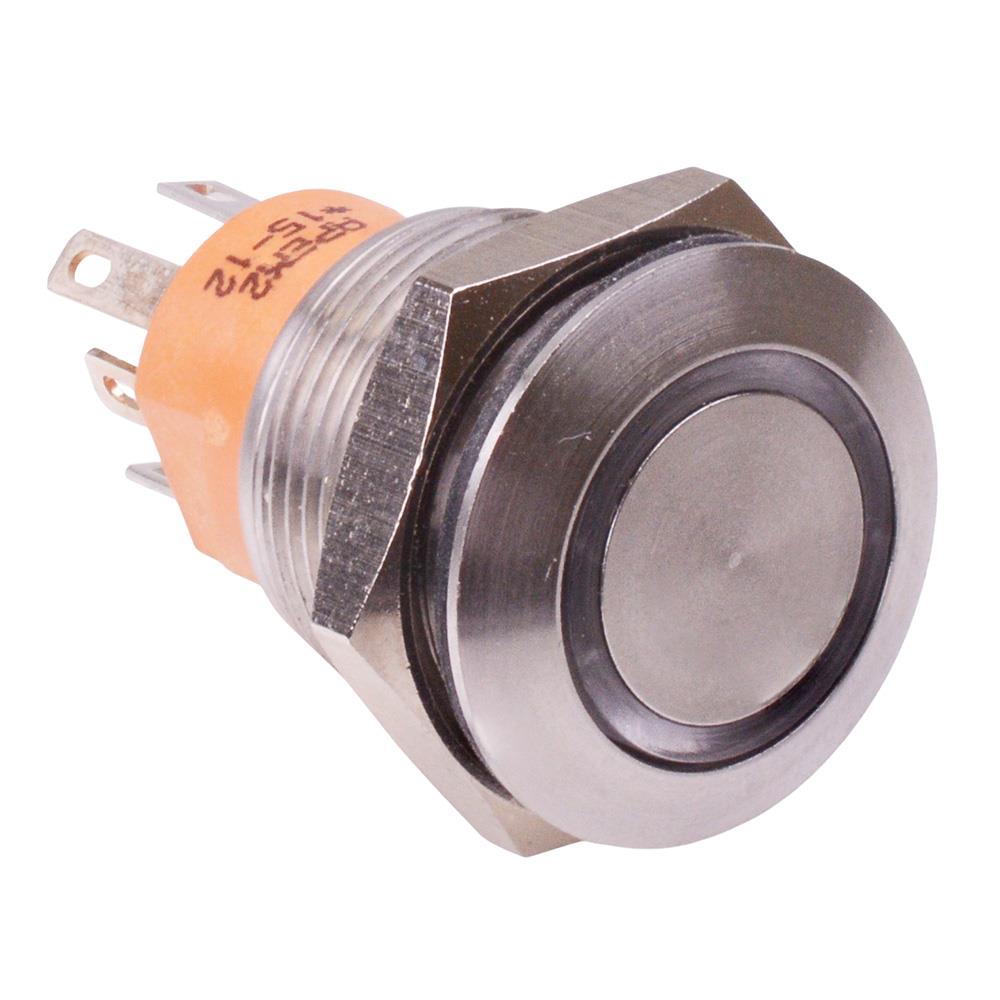

AV990220000840K APEM Amber LED 19mm Momentary Anti Vandal Push Button Switch NO/NC

The AV990220000840K is an illuminated ring 19mm anti vandal push button switch featuring IP67 sealing and NO/NC contacts. The switch features an attractive and durable stainless steel design making it suitable for a wide range of applications including security.

NO/NC contacts

Momentary function

Amber 2.3V 20mA LED

Panel cut-out: 19.2mm

Solder/quick connect terminals

Rating: 1A 30VDC

Panel thickness: 1-6mm

Material: stainless steel

Protection level: IP67
