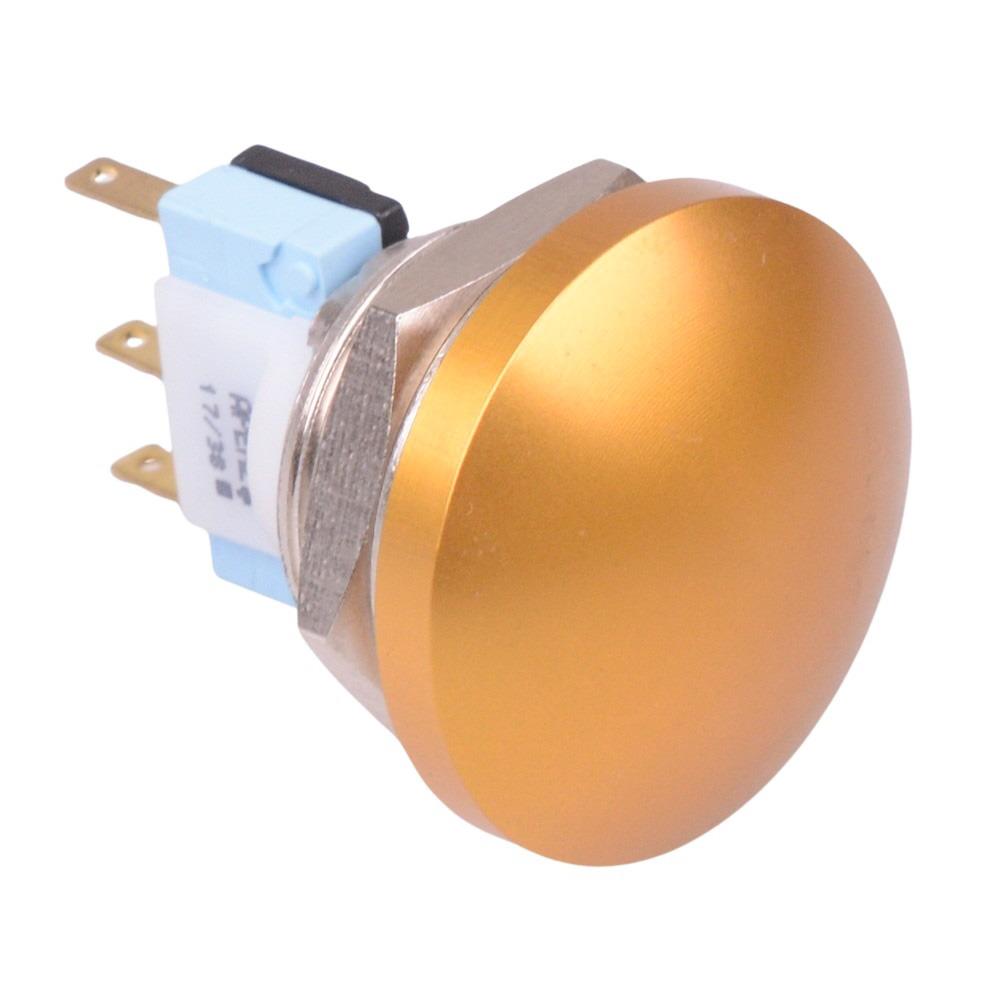

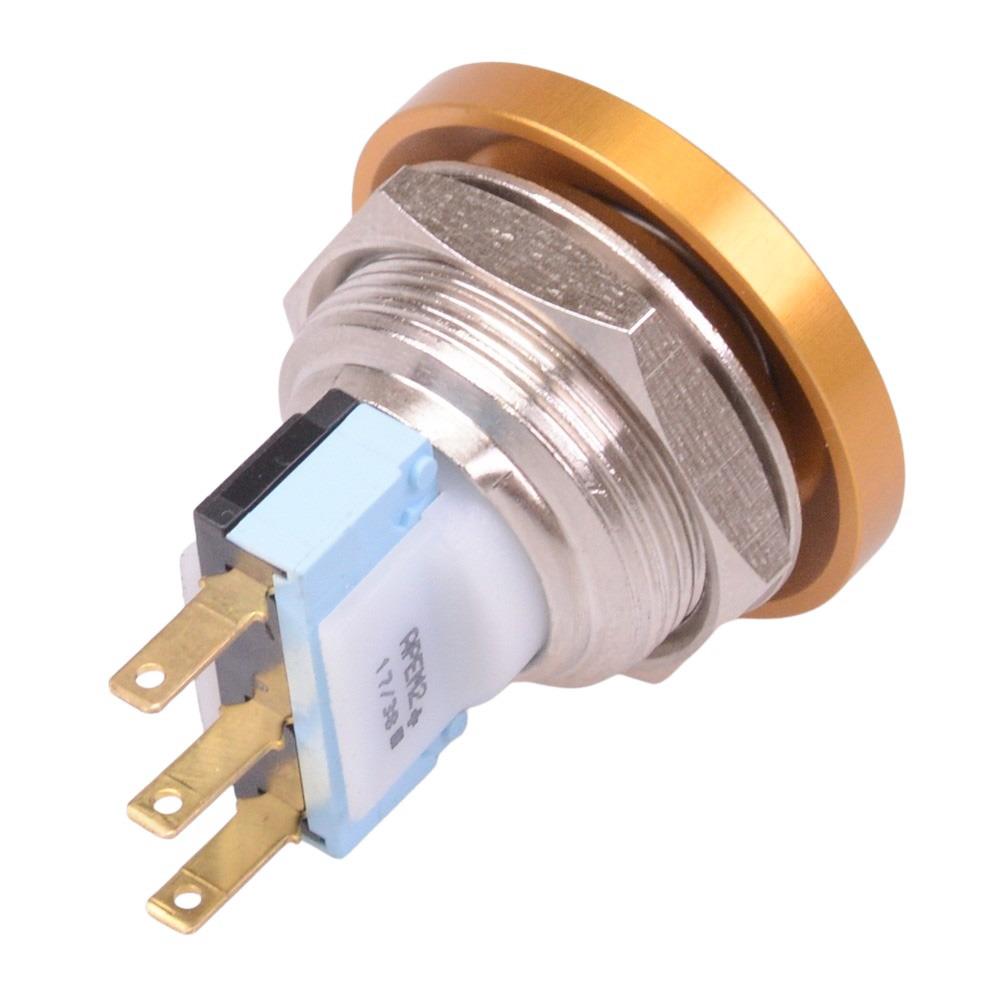

AV22PNA54 APEM Gold Mushroom 22mm Security Push Button Switch SPST

The AV22PNA54 is a gold anodized mushroom head push button switch featuring combined NO and NC contacts and momentary operation. The switch features a 22mm bushing and is sealed to IP65 making it suitable for a wide range of applications. The switch features quick connect terminals and 5A 250VAC rating making it ideal for applications requiring an attractive, robust and durable switch.

Large 30mm mushroom head

Combined NO/NC contacts

Gold anodized actuator

Long life

Sealed to IP65

Rating: 5A 250VAC

Panel cut-out: 22.2mm

Panel thickness: 1-6mm

Quick connect 2.80.5mm terminals

Dimensions: 35.8 x 30mm (height x diameter)
