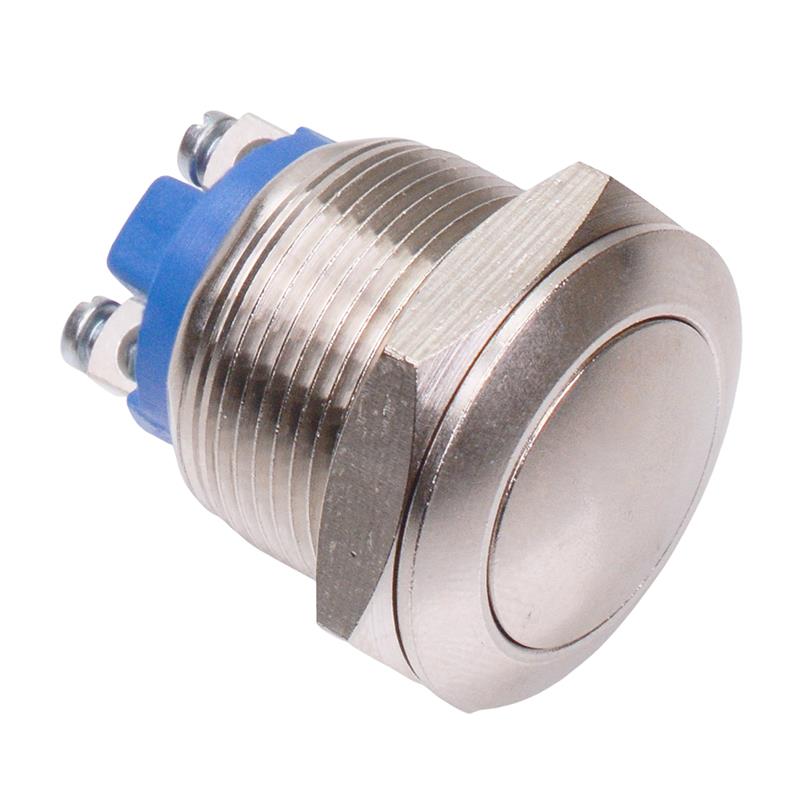

AV191003C900 Momentary 19mm Push Button Vandal Switch SPST 2A 48VDC APEM

The AV191003C900 is a security vandal resistant push button switch featuring NO momentary contacts and screw terminals. The switch features a long life and nickel plated brass bushing, suitable for applications requiring a reliable and durable switch.

NO SPST contacts

Curved actuator

Long life

Screw terminals

Silver plated brass contacts

Nickel plated brass brushing

Panel cut-out: 19.2mm

Rating: 2A 48VDC

Panel thickness: 1-11mm

Dimensions: 26 x 22mm (length x diameter)
