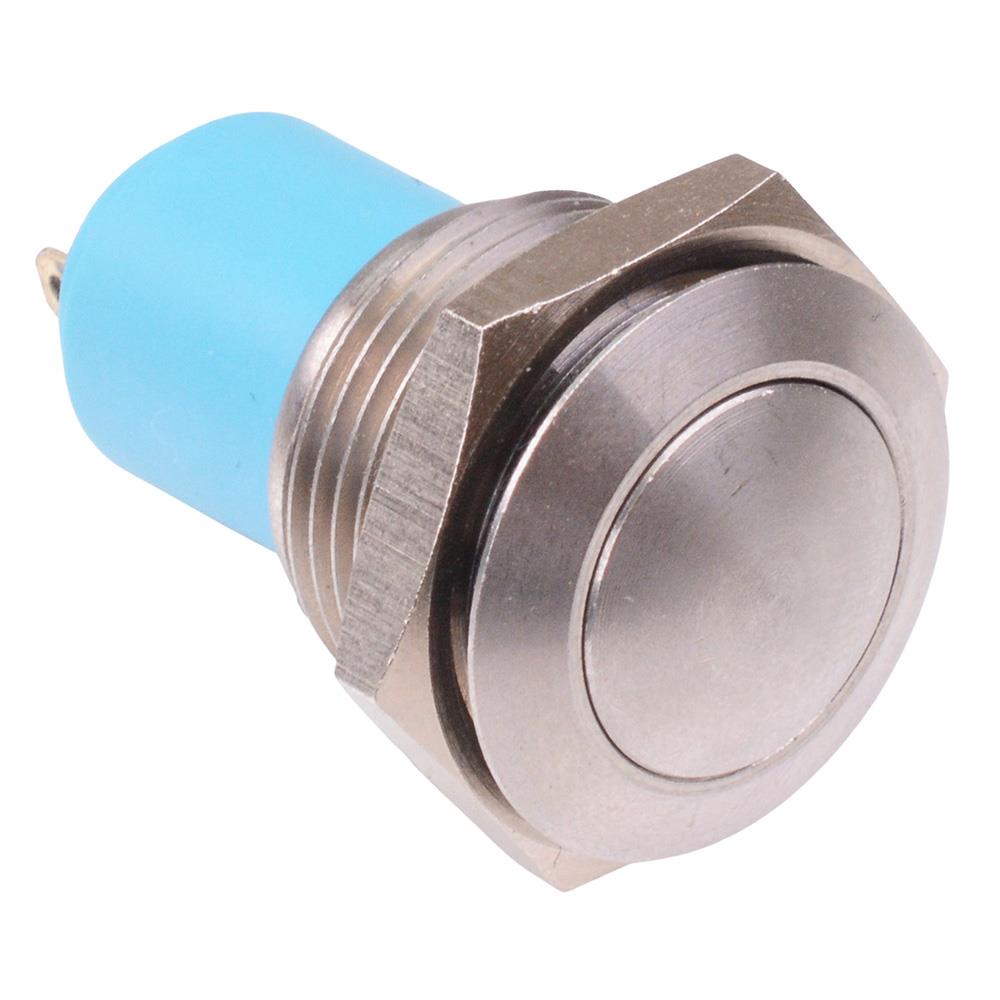

AV1611A240K APEM On-Off 16mm Latching Anti Vandal Push Button Switch SPST IP65

The AV1611A240K is a latching anti vandal push button switch by APEM featuring a stainless steel body and 16mm bushing. The switch features SPST contacts and curved actuator suitable for a wide range of applications.

SPST contacts

On-Off function

Panel cut-out: 16.2mm

Panel thickness: 1-6mm

Solder terminals

Stainless steel body

Curved actuator

IP65 protection level

Rating: 1A 24VDC
