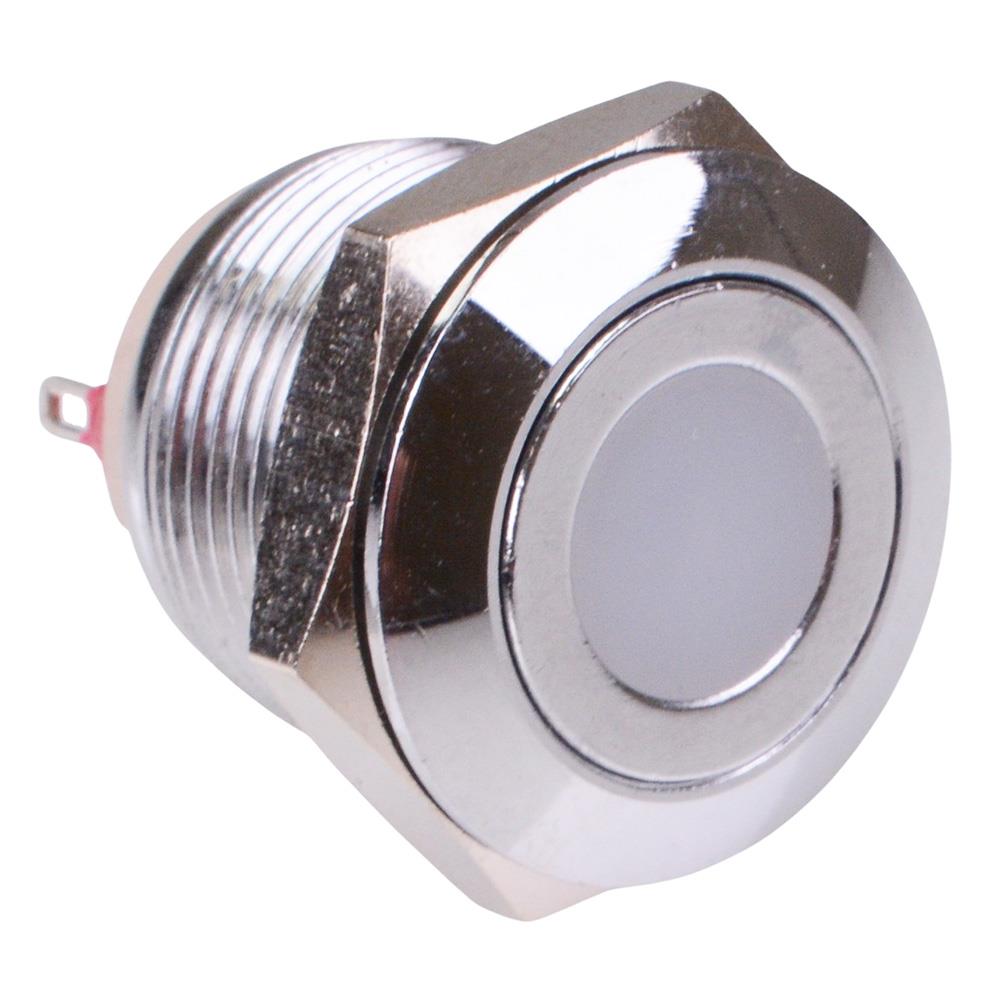

AV09C7L3D2202 APEM Red/Green LED Off-(On) Momentary 19mm Push Button Switch SPST

The AV09C7L3D2202 is an illuminated 19mm momentary anti vandal push button switch featuring SPST contacts and solder terminals. The switch features a red/green bi-colour LED which can be alternated by switching the polarity. The switch features a chrome plated brass body and is suitable for a wide range of applications.

Red/Green bi-colour 2.2V LED

Off-(On) momentary function

SPST contacts

Chrome plated brass body

Tactile feedback

Panel cut-out: 19.2mm

Panel thickness: 1-6mm

Solder terminals

Rating: 50mA 24VDC
