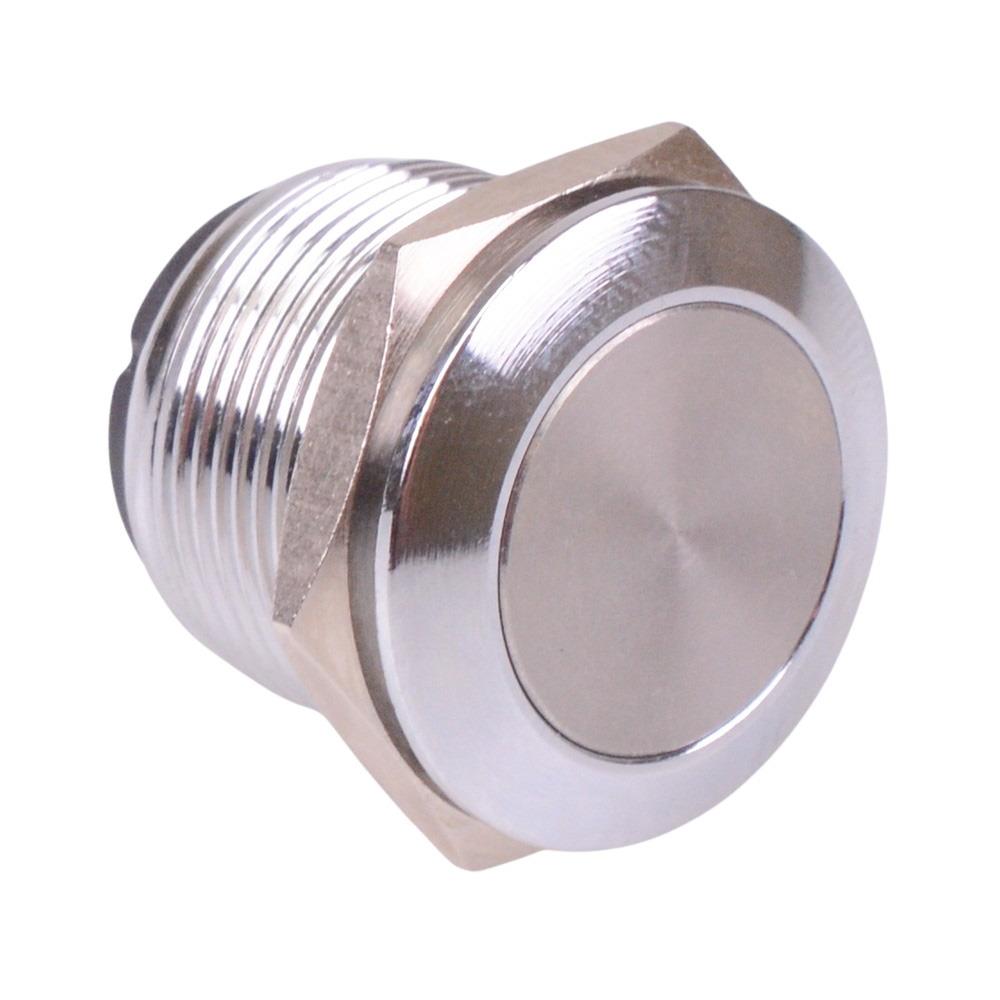

AV09C703D230 APEM NO Momentary Snap Action Vandal Push Button Switch SPST

The AV09C703D230 is a security vandal resistant push button switch featuring NO momentary contacts and solder lug terminals. The switch features a long life and chrome plated brass bushing, suitable for applications requiring a reliable and durable switch.

NO SPST contacts

Flat actuator

Long life

Solder lug terminals

Gold plated contacts

Chrome plated brass brushing

Panel cut-out: 19.2mm

Rating: 50mA 24VDC

Panel thickness: 1-6mm

Dimensions: 23.55 x 22mm (length x diameter)
