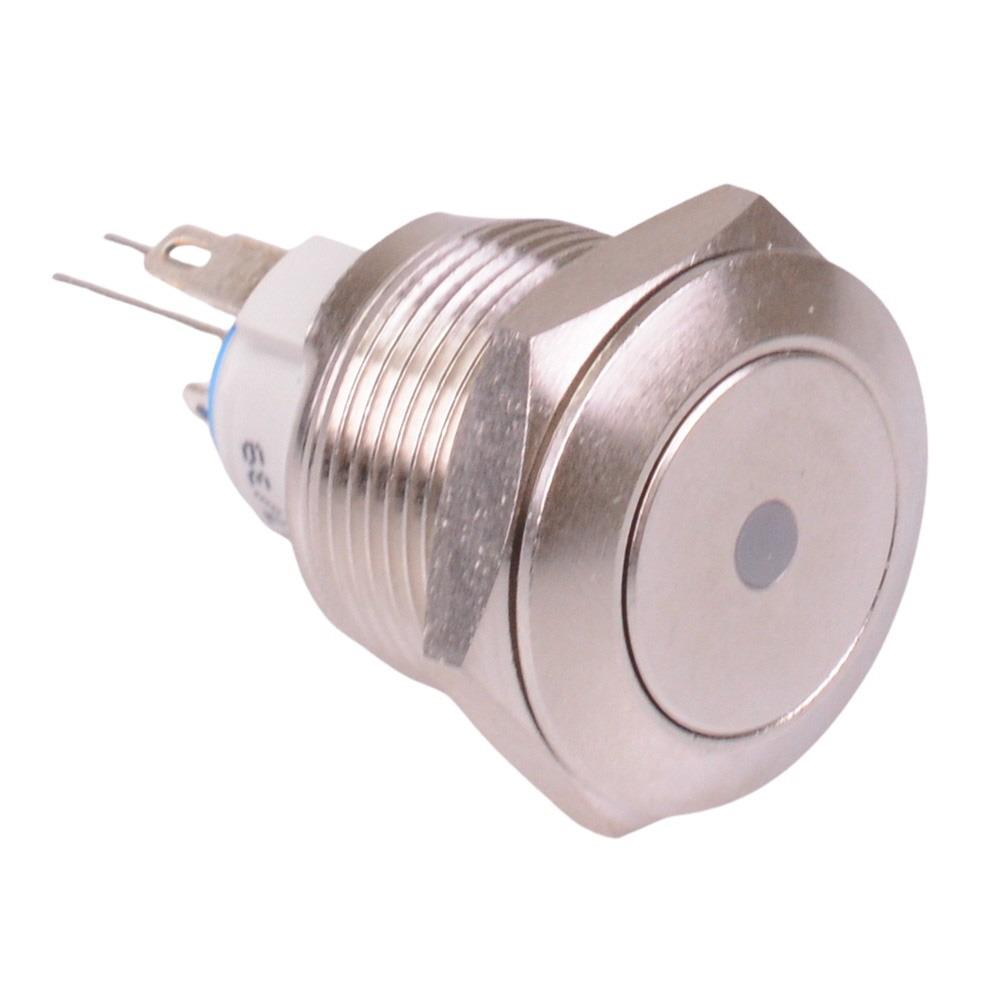

AV091L5EA200 APEM Yellow illuminated 19mm Latching Vandal Push Button Switch SPST

The AV091L5EA200 is a illuminated security vandal resistant push button switch featuring latching function and solder lug terminals. The switch features a long life and nickel plated brass bushing, suitable for applications requiring a reliable and durable switch.

2NO/2NC contacts

Flat actuator

Long life

Solder lug terminals

Silver contacts

Nickel plated brass brushing

Panel cut-out: 19.2mm

Rating: 2A 48VDC

Panel thickness: 1-9mm

Diameter: 22mm
