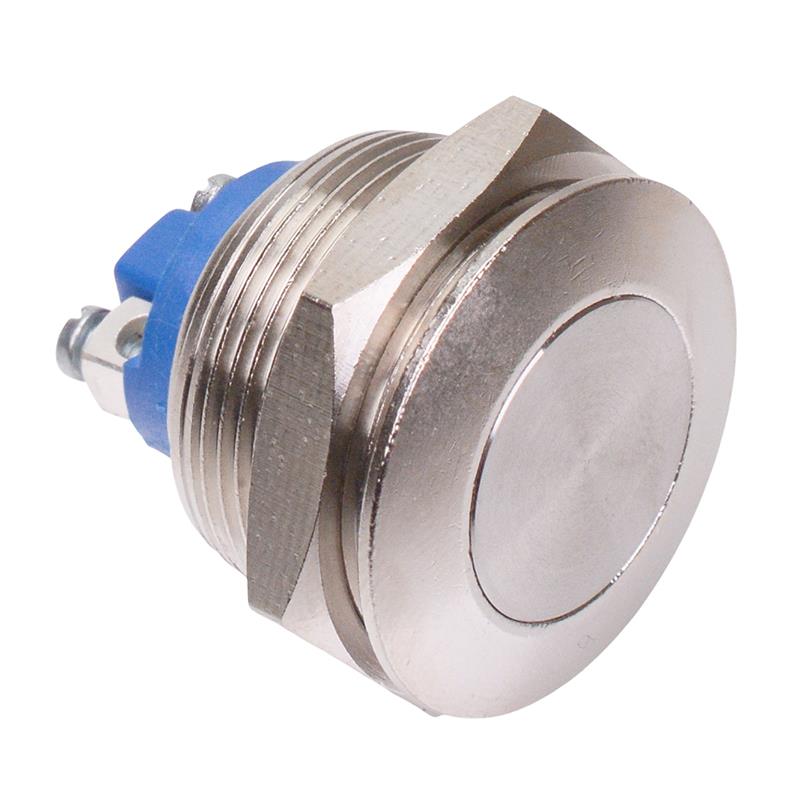

AV031003C910 Momentary 22mm Push Button Vandal Switch SPST 2A 48VDC APEM

The AV031003C910 is a security vandal resistant push button switch featuring NO momentary contacts and screw terminals. The switch features a long life and nickel plated brass bushing, suitable for applications requiring a reliable and durable switch.

NO SPST contacts

Flat actuator

Long life

Screw terminals

Silver plated brass contacts

Nickel plated brass brushing

Panel cut-out: 22.2mm

Rating: 2A 48VDC

Panel thickness: 1-11mm

Dimensions: 26 x 25mm (length x diameter)
