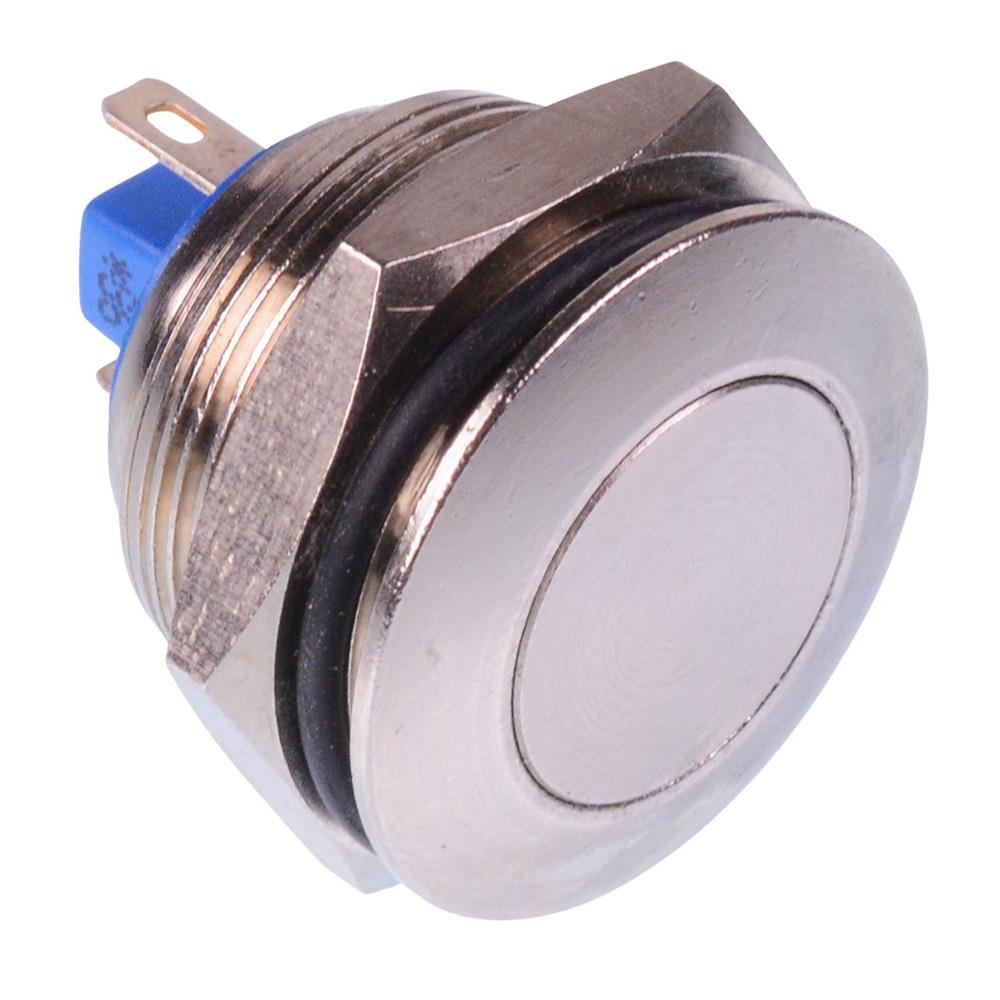

AV031003C200K APEM Off-(On) Momentary 22mm Flat Anti Vandal Push Button Switch SPST

The AV031003C200K is a 22mm anti vandal push button switch with momentary SPST-NO contacts and flat actuator. The switch features a chrome plated brass body and solder terminals making it suitable for applications requiring a reliable long-lasting switch including security.

SPST-NO contacts

Off-(On) momentary function

Solder lug/quick connect terminals

Protection level: IP65

Panel cut-out: 22.2mm

Rating: 4A 12VDC

Panel thickness: 1-11mm

Material: chrome plated brass
