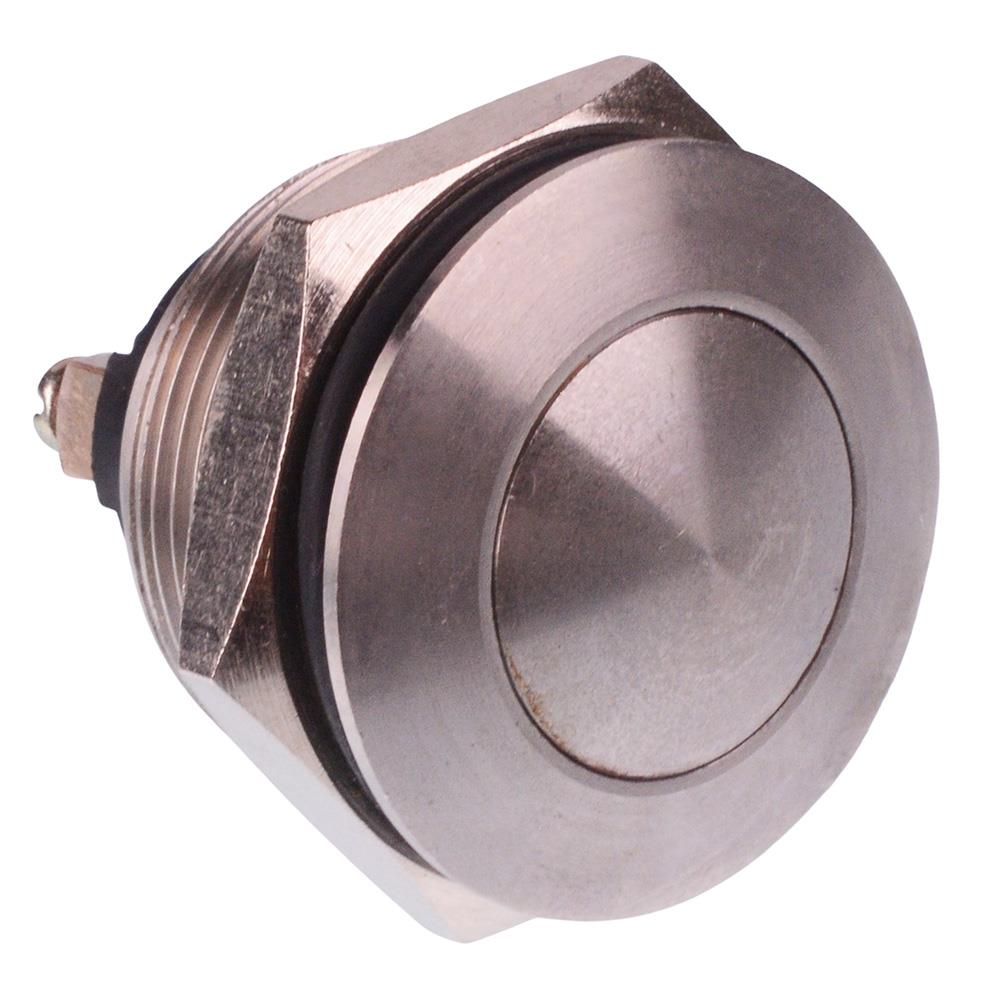

AV021003C940T APEM Off-(On) Momentary 22mm Curved Anti Vandal Push Button Switch SPST

The AV021003C940T is a 22mm anti vandal push button switch with momentary SPST-NO contacts and curved actuator. The switch features a stainless steel body and screw terminals making it suitable for applications requiring a reliable long-lasting switch including security.

SPST-NO contacts

Off-(On) momentary function

Panel cut-out: 22.2mm

Screw terminals

Rating: 4A 12VDC

Panel thickness: 1-11mm

Material: stainless steel
