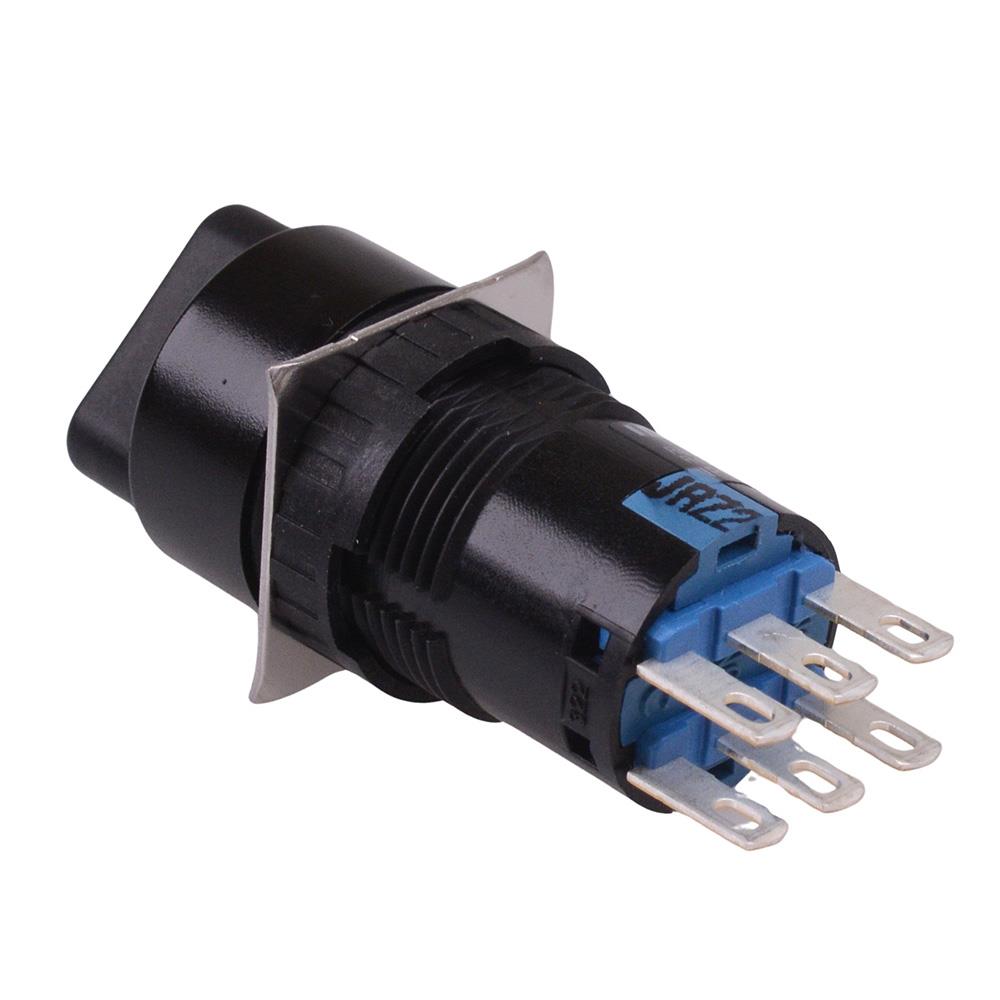

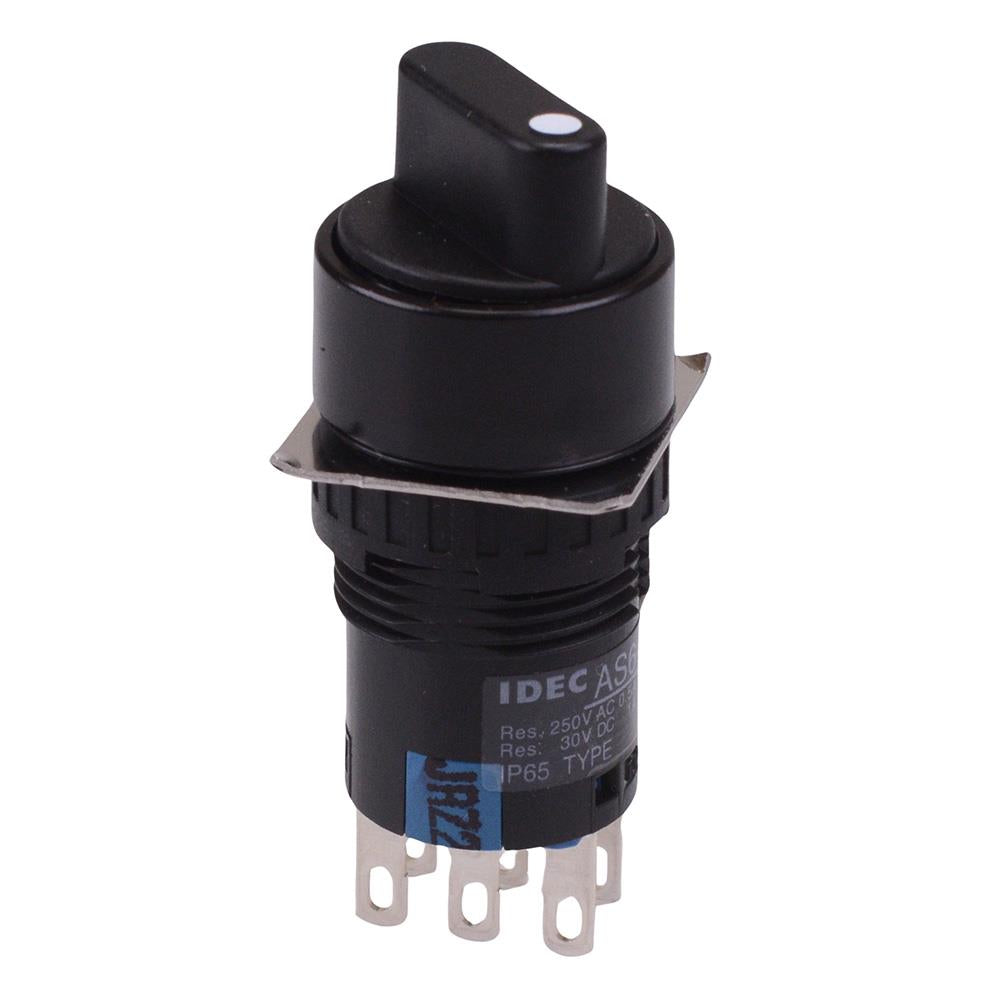

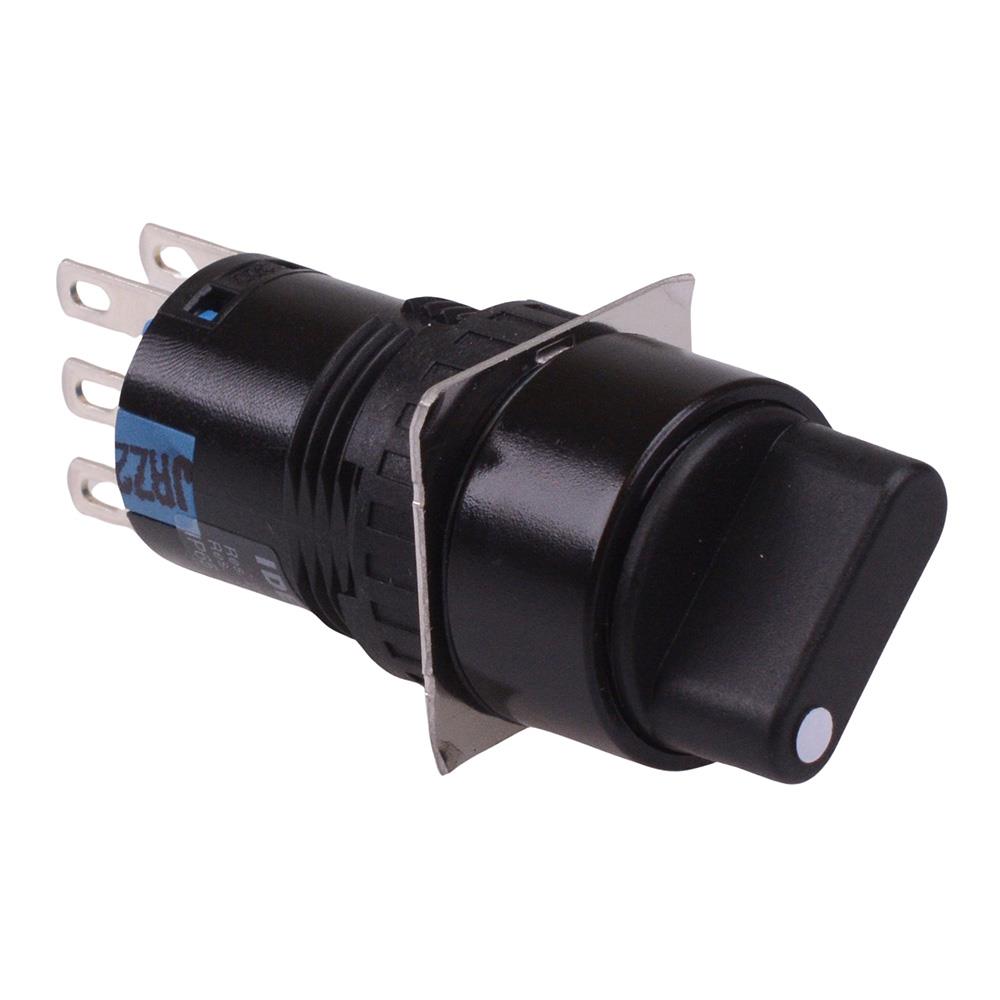

AS6M-3Y2P 3 Position 16mm Latching Round Selector Switch DPDT IDEC

The AS6M-3Y2P is a 3 position latching light duty industrial selector switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features a short 22mm body length and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation, use in factories and offices.

• Latching operation
• 45° 3 positions
• DPDT contacts
• IP65 protection rating
• Contact rating: 3A 250V
• Panel cut-out: 16.2mm
• Panel thickness: 0.5-6mm
• Solder terminals
• Dimensions: 45.5 x 18mm (length x diameter)
