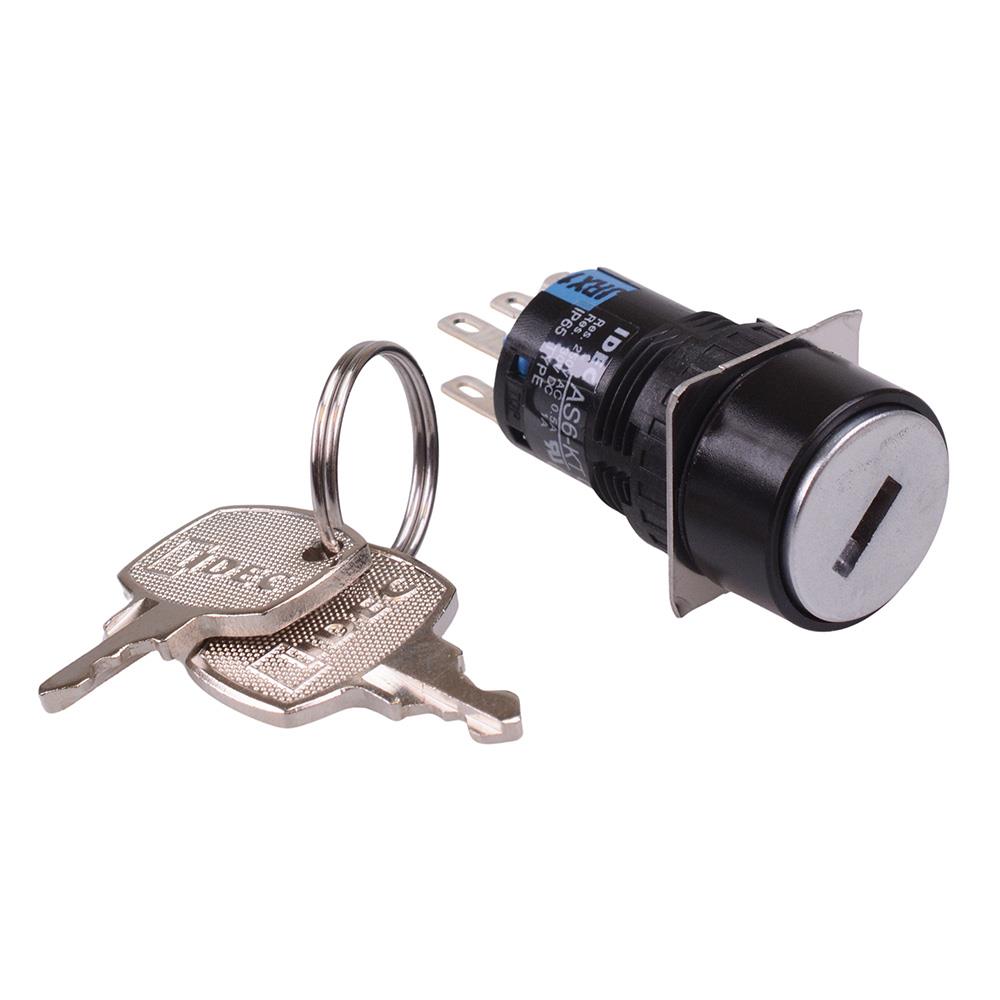

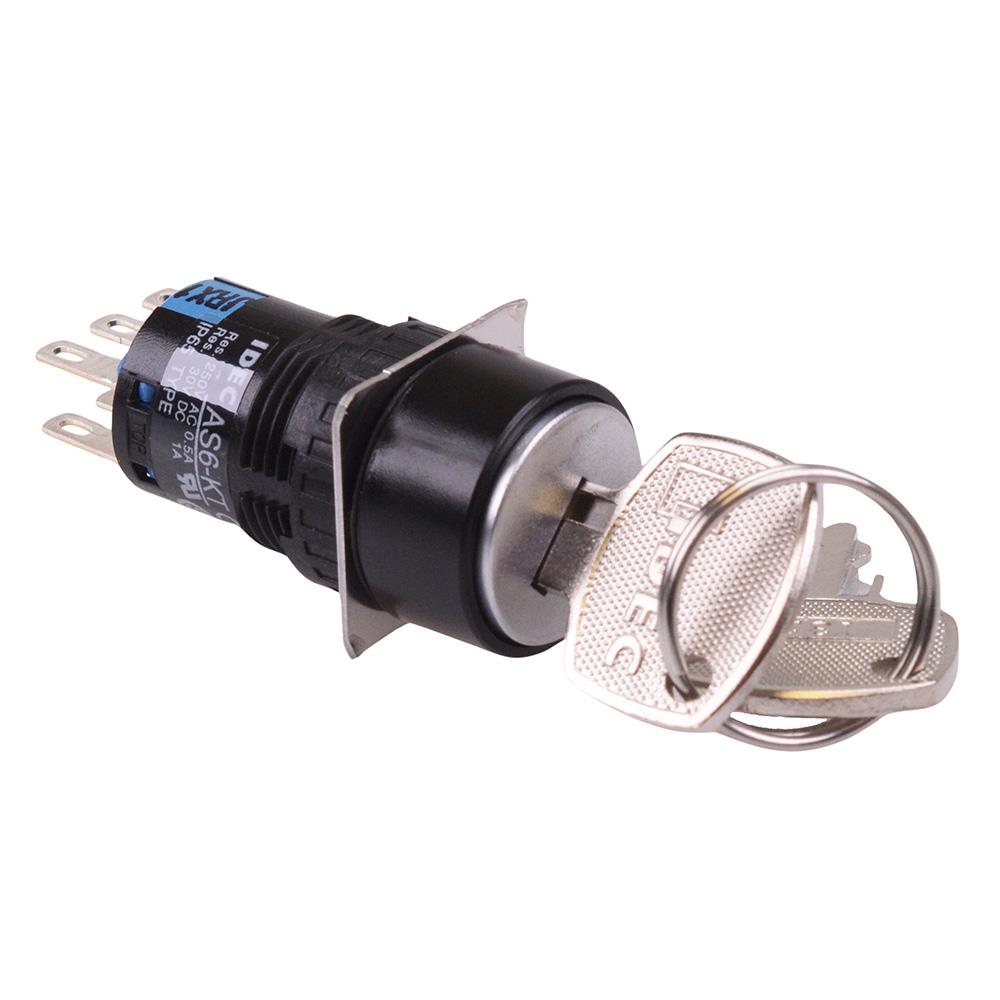

AS6M-2KT2PAC 2 Position 16mm Latching Key Switch DPDT IDEC

The AS6M-2KT2PAC is a 2 position latching light duty industrial key switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features a short 22mm body length and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation, use in factories and offices.

• Latching operation
• 90° 2 positions
• Key removable in both positions
• DPDT contacts
• IP65 protection rating
• Contact rating: 3A 250V
• Panel cut-out: 16.2mm
• Panel thickness: 0.5-6mm
• Solder terminals
• Dimensions: 39 x 18mm (length x diameter)
