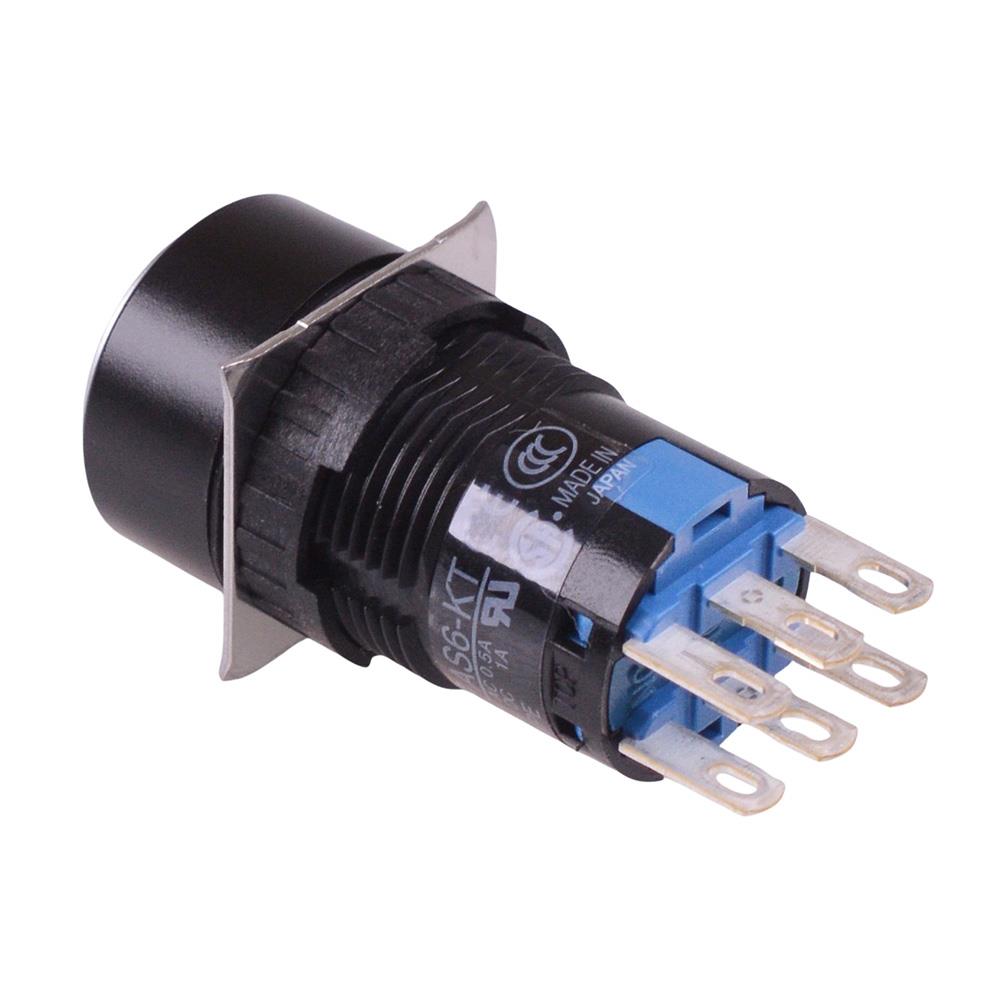

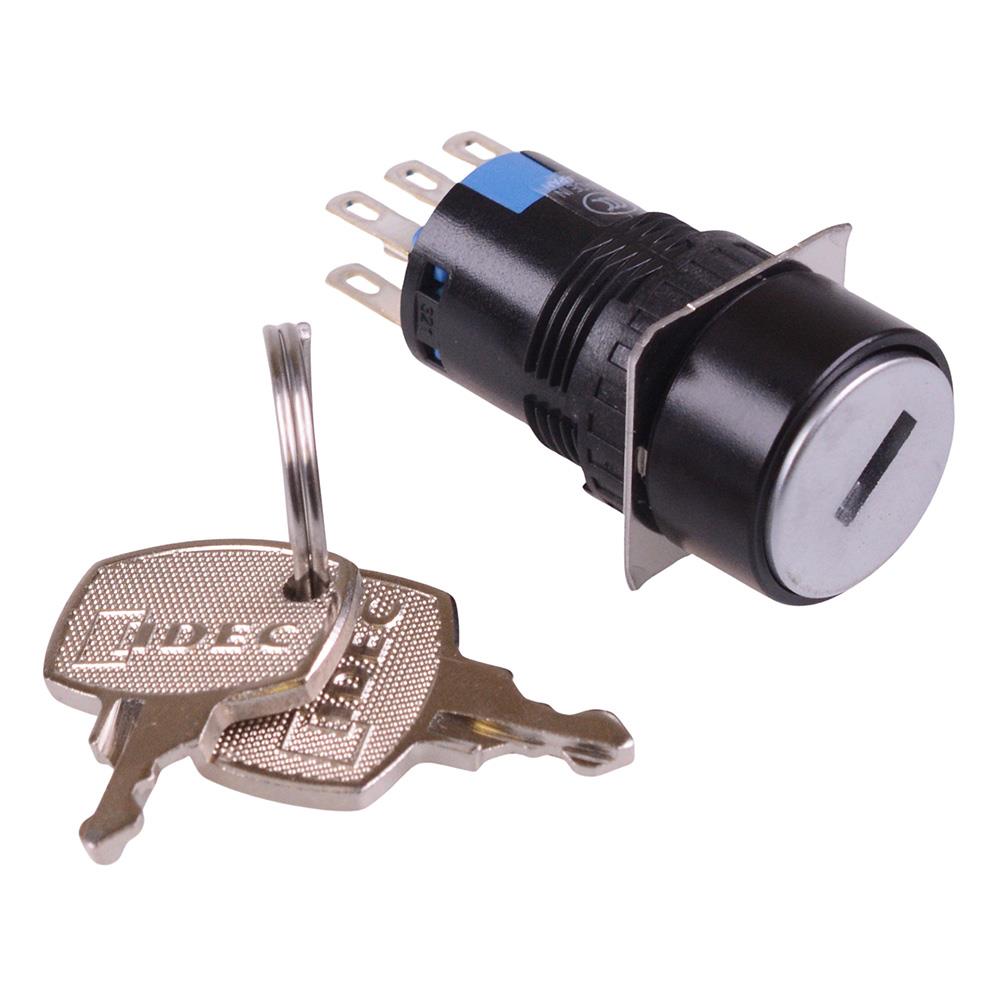

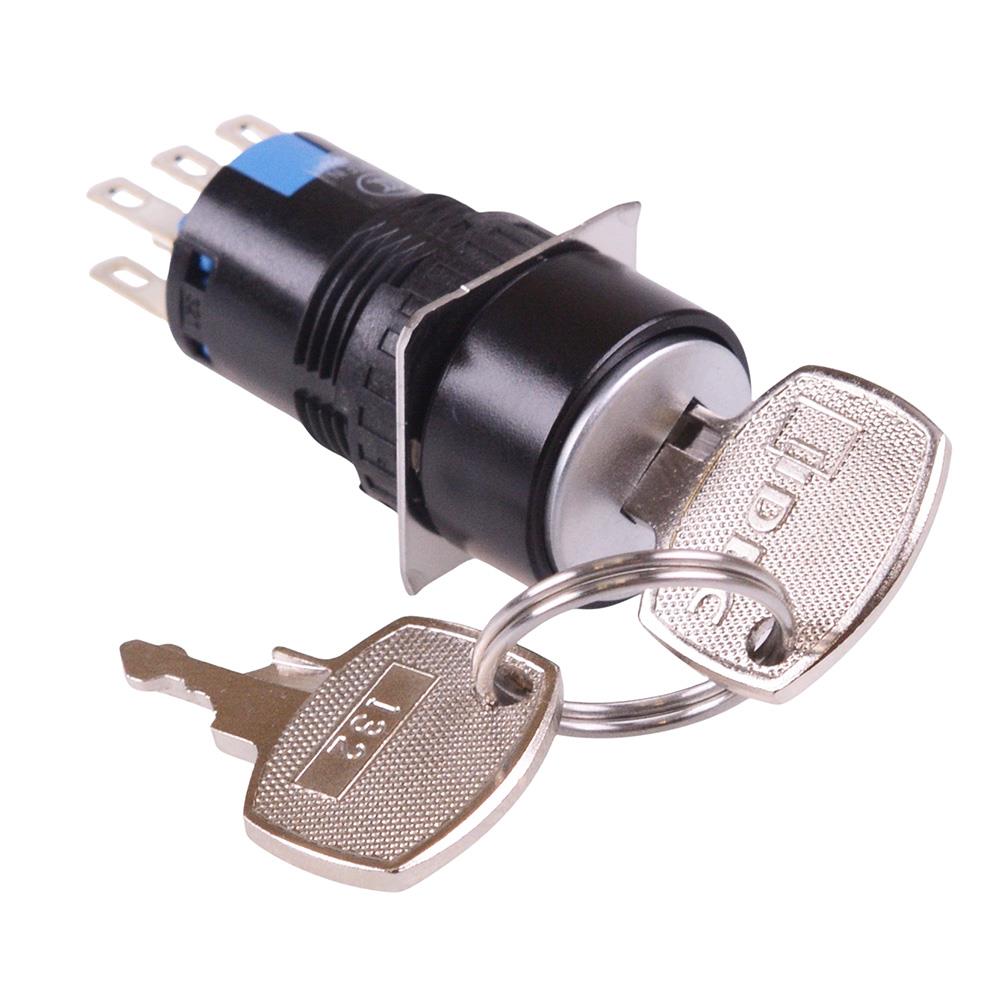

AS6M-21KT2PBC 2 Position 16mm Momentary Key Switch DPDT IDEC

The AS6M-21KT2PBC is a 2 position momentary light duty industrial key switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features a short 22mm body length and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation, use in factories and offices.

Momentary operation

90° 2 positions

Key removable in left position

Spring return from the right

DPDT contacts

IP65 protection rating

Contact rating: 3A 250V

Panel cut-out: 16.2mm

Panel thickness: 0.5-6mm

Solder terminals

Dimensions: 39 x 18mm (length x diameter)
