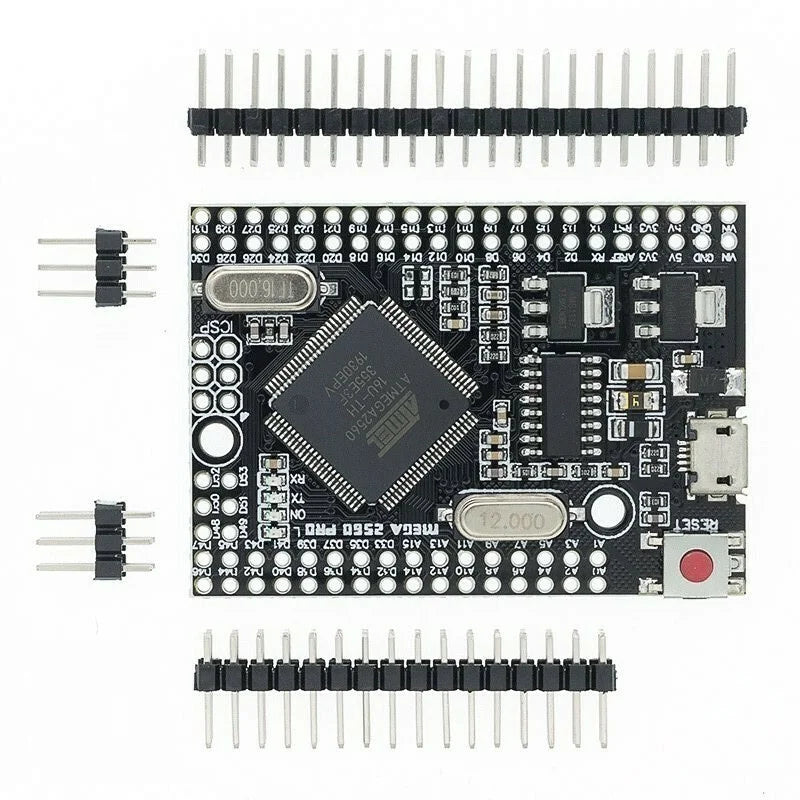

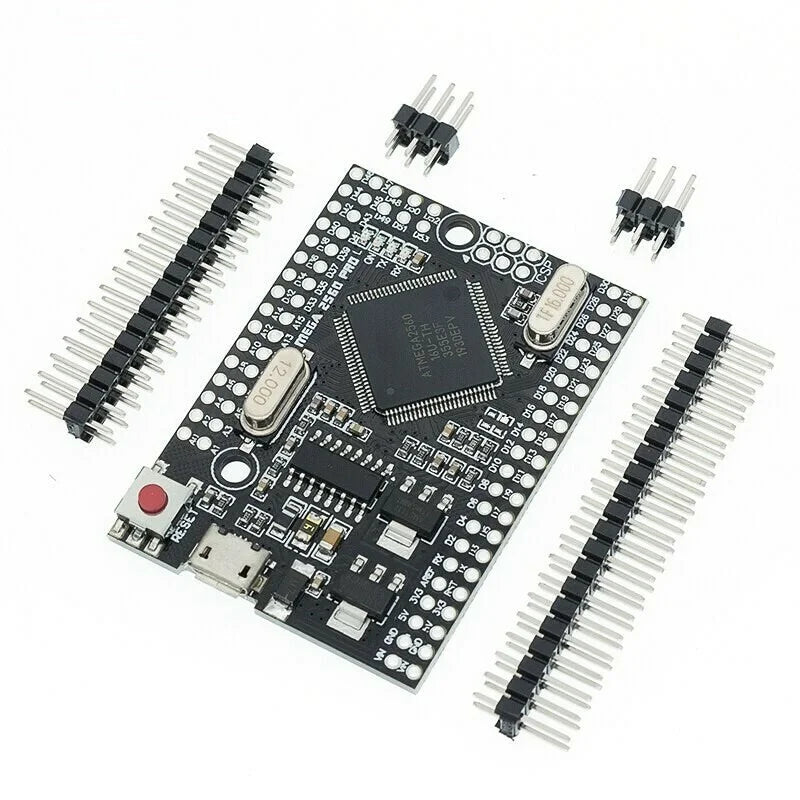

Arduino Mega 2560 PRO Compatible Development Board

High-Performance Microcontroller: At its core is the ATmega2560 microcontroller running at 16 MHz, ensuring reliable and efficient performance for a variety of applications.

Stable USB-UART Interface: Features the CH340G chip, operating at 12 MHz for a consistent and stable data exchange. Requires driver installation on your computer for optimal functionality.

Versatile Connectivity: Connects seamlessly to your computer via a microUSB cable, compatible with most Android smartphones, offering ease of use and accessibility.

Flexible Power Options: Power the board through the MicroUSB connector or pin headers. Its voltage regulator (LDO) can handle 6V to 9V (peak at 18V) DC, making it adaptable to various power sources.

Robust Power Output: Provides an output current of approximately 800mA for both 5V and 3.3V. Ideal for powering most initial projects, but note that higher input voltages result in lower outgoing current.

Expansive Digital and Analog I/O: Equipped with 70 digital I/O pins, 16 analog inputs, and 14 PWM channels, this board is ready to connect with a multitude of sensors and actuators.

Multiple Communication Interfaces: Includes 4 UART buses for serial communication, enhancing its capability to interact with other microcontrollers
or computers.

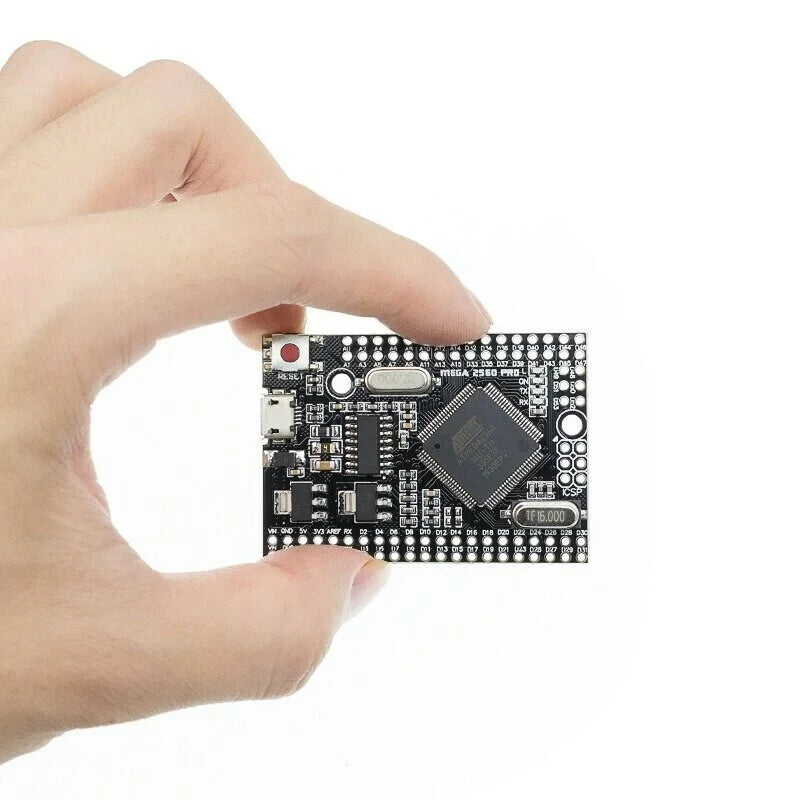

Compact Size: Measuring just 38x55mm, it’s perfect for projects where space is a premium without compromising on functionality.
