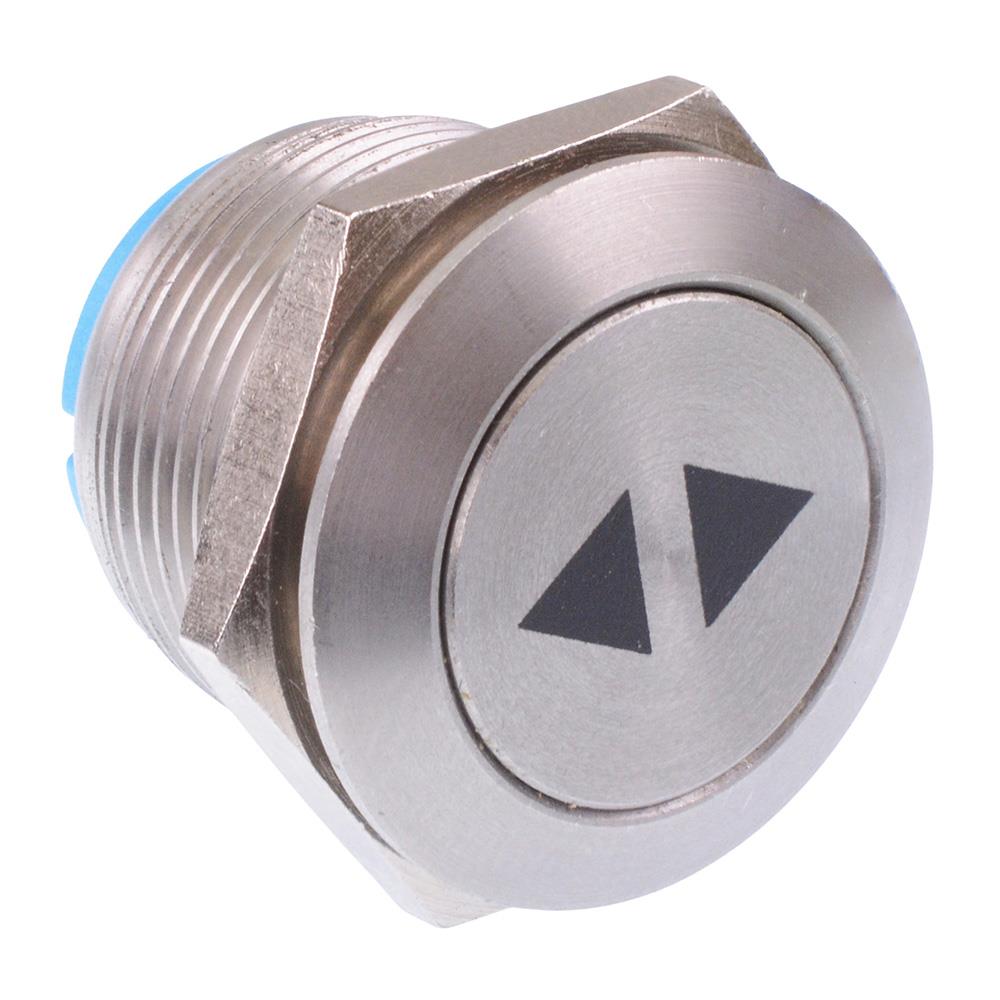

APEM Outward Arrows Off-(On) Momentary 19mm Flat Anti Vandal Push Button Switch SPST

The AV09 is a 19mm anti vandal push button switch with momentary SPST-NO contacts and flat actuator. The switch features a stainless steel body and solder terminals making it suitable for applications requiring a reliable long-lasting switch including security and door entry.

SPST-NO contacts

Off-(On) momentary function

Panel cut-out: 19.2mm

Solder terminals

Rating: 4A 12VDC

Panel thickness: 1-11mm

Material: stainless steel
