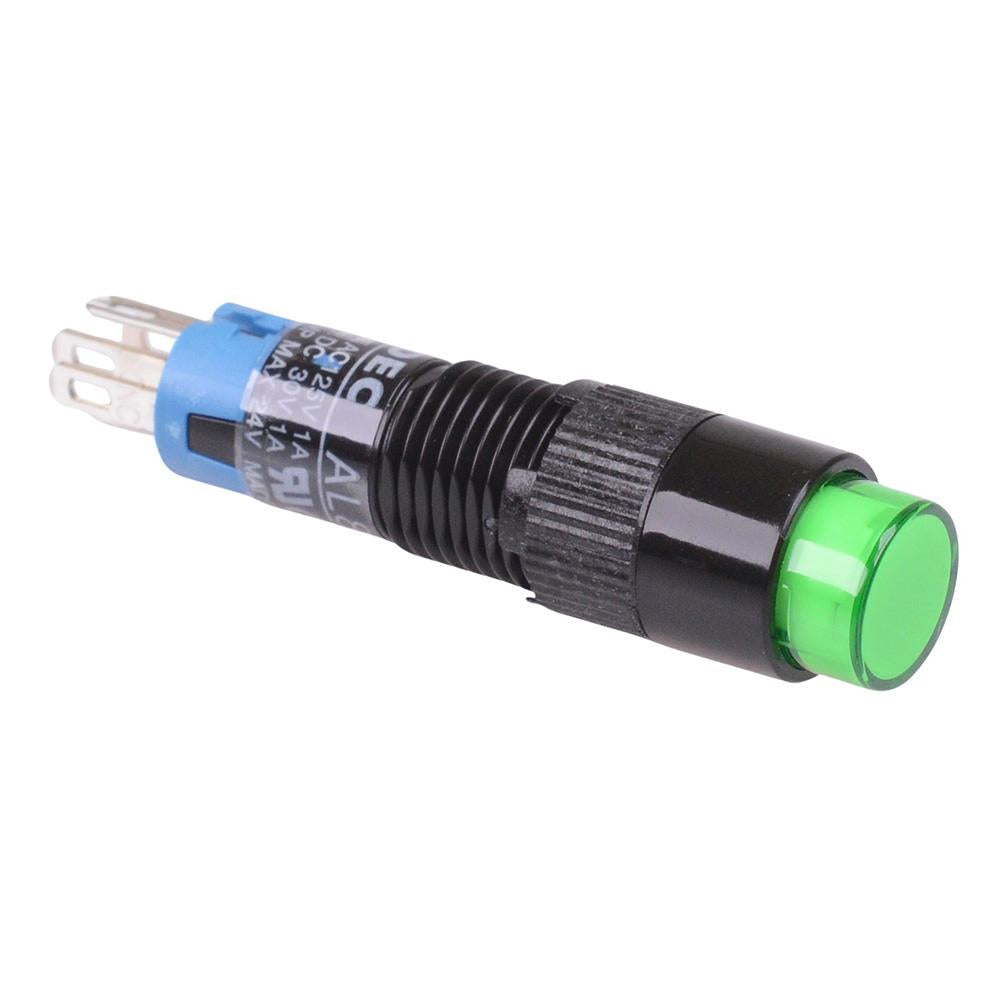

AL8M-M11G Green 8mm Illuminated Momentary Round Push Button Switch SPDT

The AL8M-M11G is a momentary industrial push button switch by IDEC, featuring SPDT contacts and IP40 protection rating. The switch features green LED illumination and is suitable for 8mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.

Momentary operation

SPDT contacts

IP40 protection rating

Green 2.9V illumination

Contact rating: 3A 250V

Panel cut-out: 8mm

Panel thickness: 0.5-6mm

Solder terminals

Dimensions: 38 x 9mm (length x diameter)
