Air Recirculation illuminated Automotive Momentary 12mm Push Button Switch SPST IP67

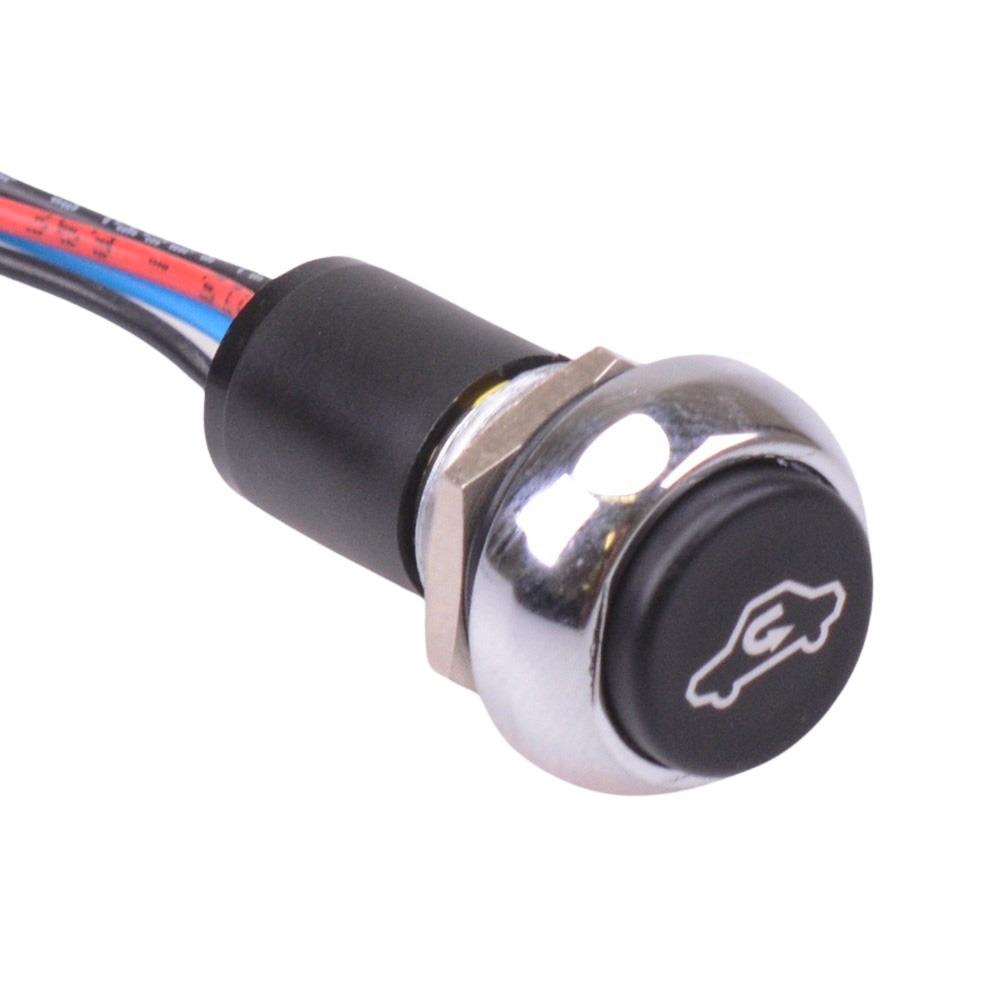

The IPP3FAD2R0Y101X1223-14 is a momentary round push button switch with a 12mm chrome bushing and illuminated with a yellow LED. The switch is prewired with 150mm flying leads and features SPST contacts. Suitable for automotive applications.

Air recirculation illuminated symbol

Momentary NO operation

Yellow LED

LED forward voltage: 2.1V

LED forward current: 20mA

150mm flying leads

SPST contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

Solder lug terminals

Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC

Panel thickness: 1.5-4mm

Dimensions: 29.8 x 17.5mm (height x diameter)
