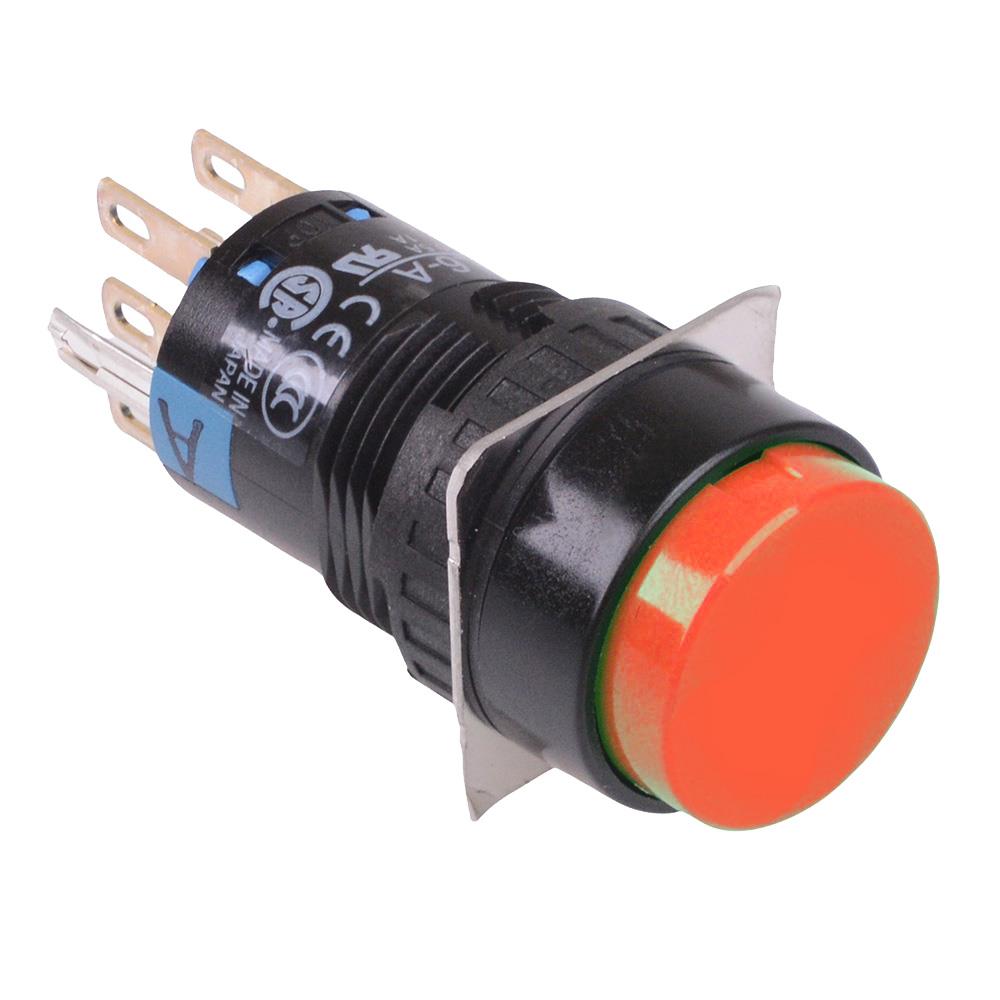

AB6M-A2PRC Red 16mm Latching Round Push Button Switch IP65 DPDT

The AB6M-A2PRC is a latching light duty industrial push button switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features a short 22mm body length and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation, use in factories and offices.

Latching operation

DPDT contacts

IP65 protection rating

Red button

Contact rating: 3A 250V

Panel cut-out: 16.2mm

Panel thickness: 0.5-6mm

Solder terminals

Dimensions: 39 x 18mm (length x diameter)
