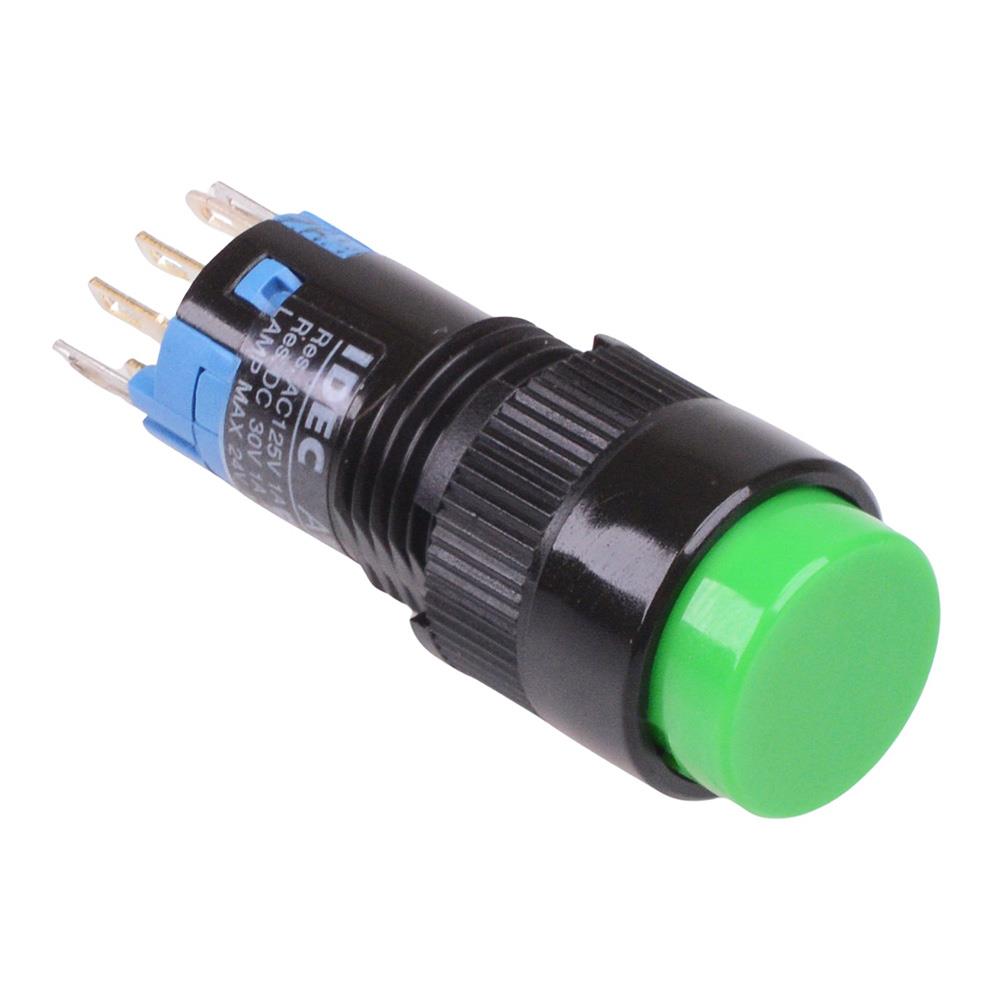

AB2M-M2PG Green 12mm Momentary Round Push Button Switch IP65 DPDT

The AB2M-M2PG is a momentary industrial push button switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features a green button and is suitable for 12mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.

Momentary operation

DPDT contacts

IP65 protection rating

Contact rating: 3A 250V

Panel cut-out: 12mm

Panel thickness: 0.5-6mm

Solder terminals

Dimensions: 36.5 x 14mm (length x diameter)
