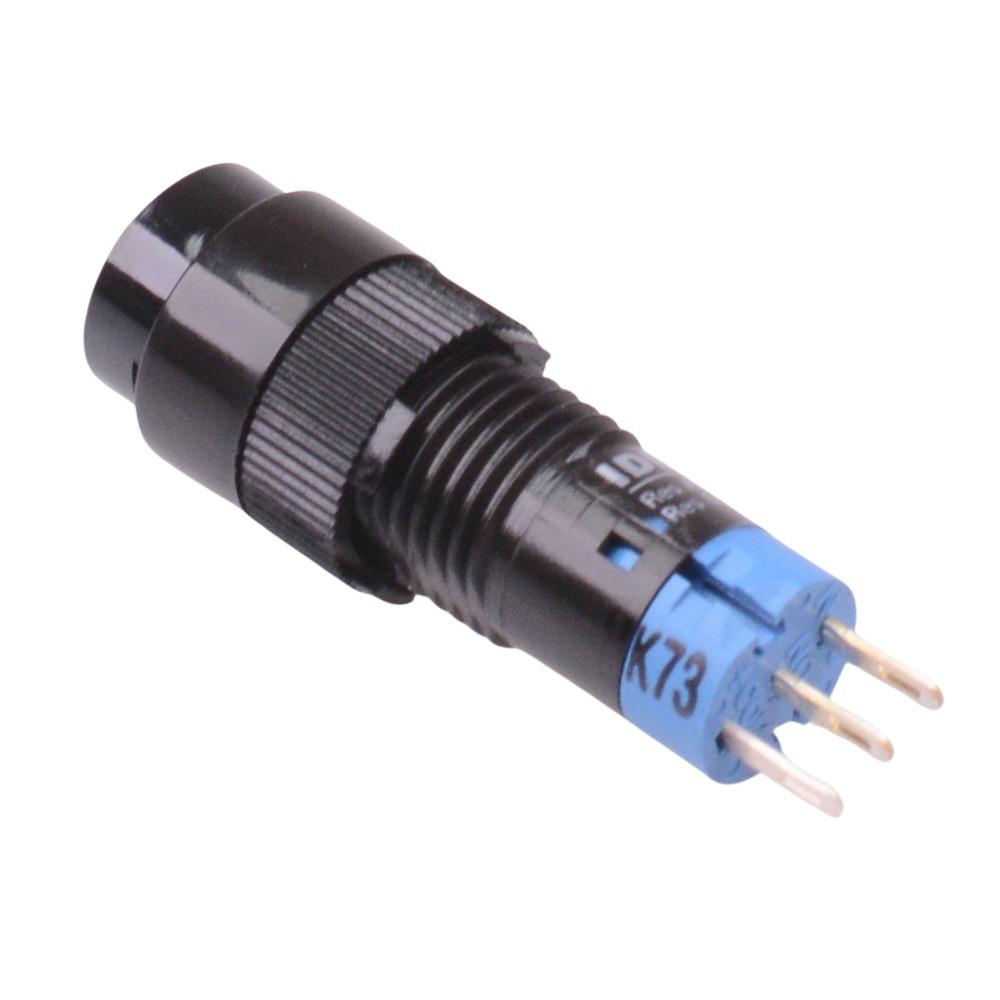

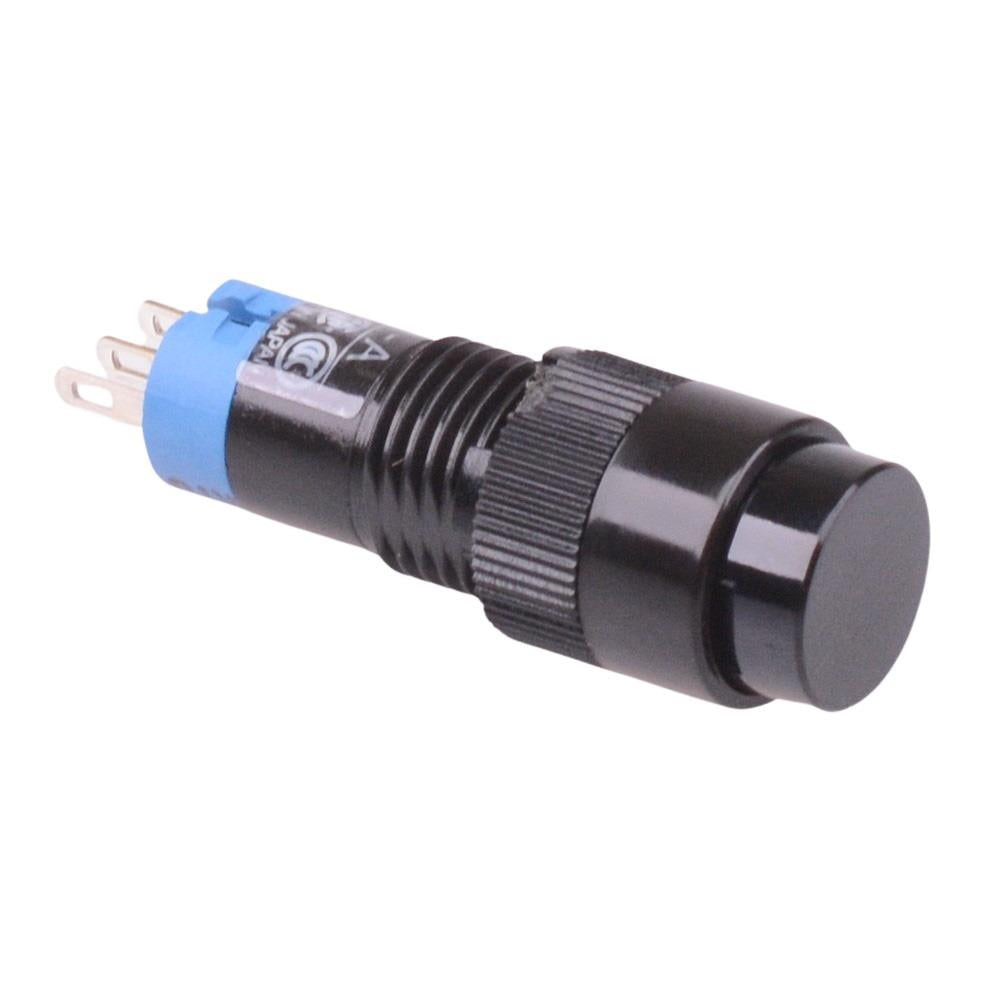

AB1M-A1B Black 10mm Latching Round Push Button Switch IP40 SPDT

The AB1M-A1B is a latching industrial push button switch by IDEC, featuring SPDT contacts and IP40 protection rating. The switch features a black button and is suitable for 10mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.

Latching operation

SPDT contacts

IP40 protection rating

Contact rating: 3A 250V

Panel cut-out: 10mm

Panel thickness: 0.5-6mm

Solder terminals

Dimensions: 36.5 x 12mm (length x diameter)
