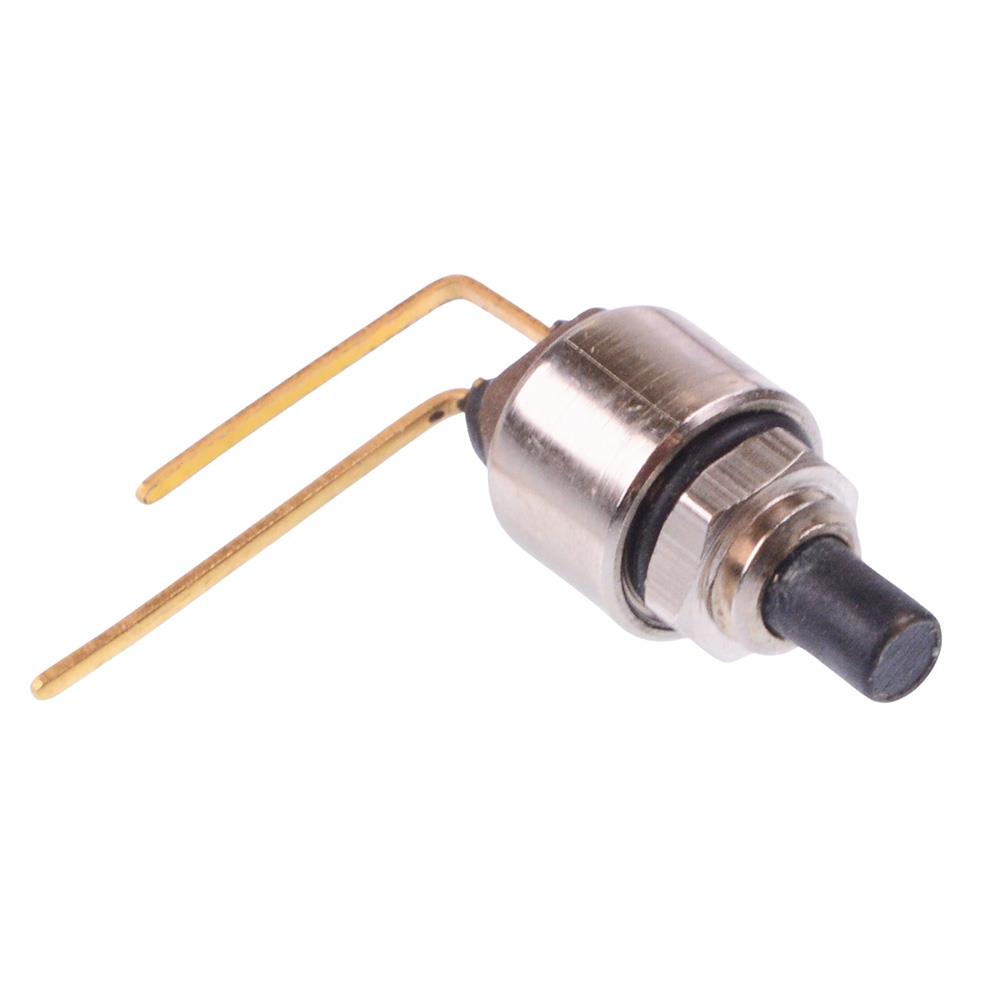

9133WWCDKX1000 APEM Subminiature Right Angle Momentary Normally Open Push Button Switch SPST

The 9133WWCDKX1000 is a right angle subminiature momentary push button switch manufactured by APEM, with SPST contacts and 4mm bushing. The switch features solder terminals and is suitable for low power panel mount applications.

SPST-NO contacts

4mm threaded bushing

Gold plated brass terminals

Rating: 0.1A 30VDC

Panel cut-out: 4.2mm

Panel thickness: 1.5mm max
