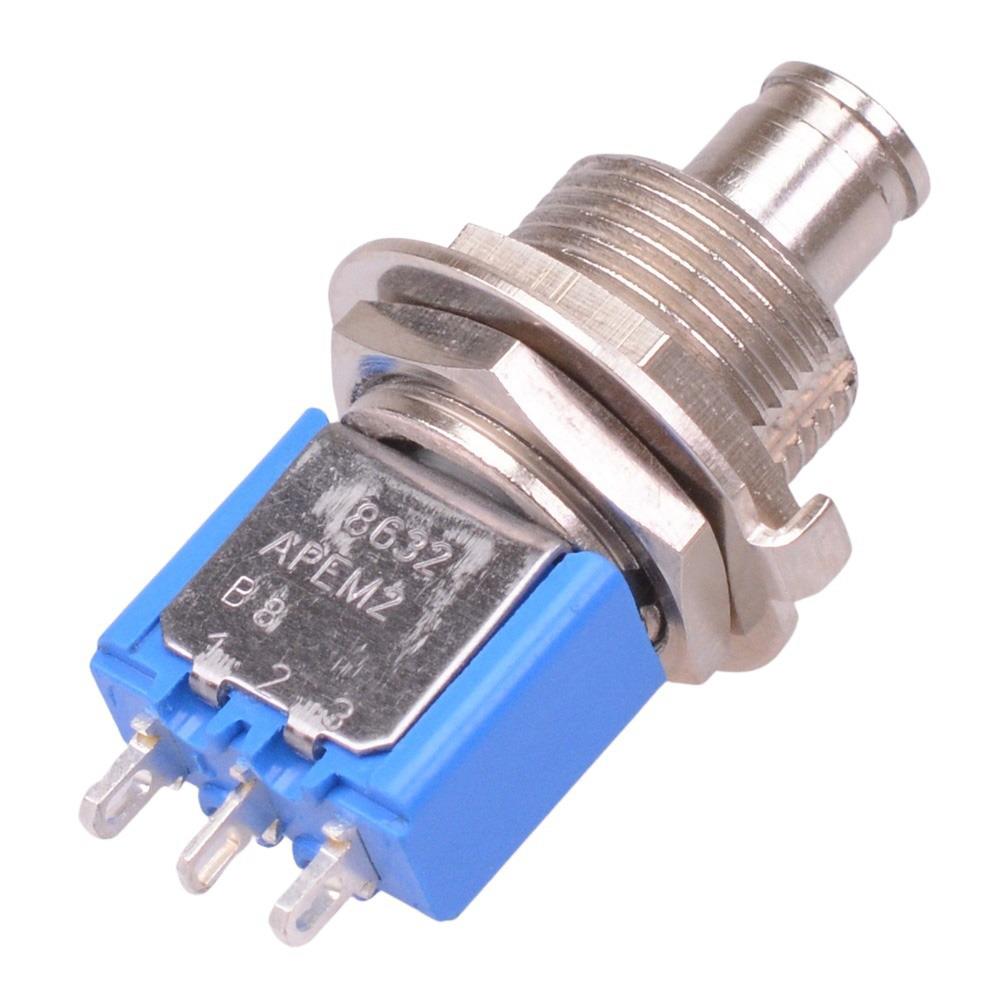

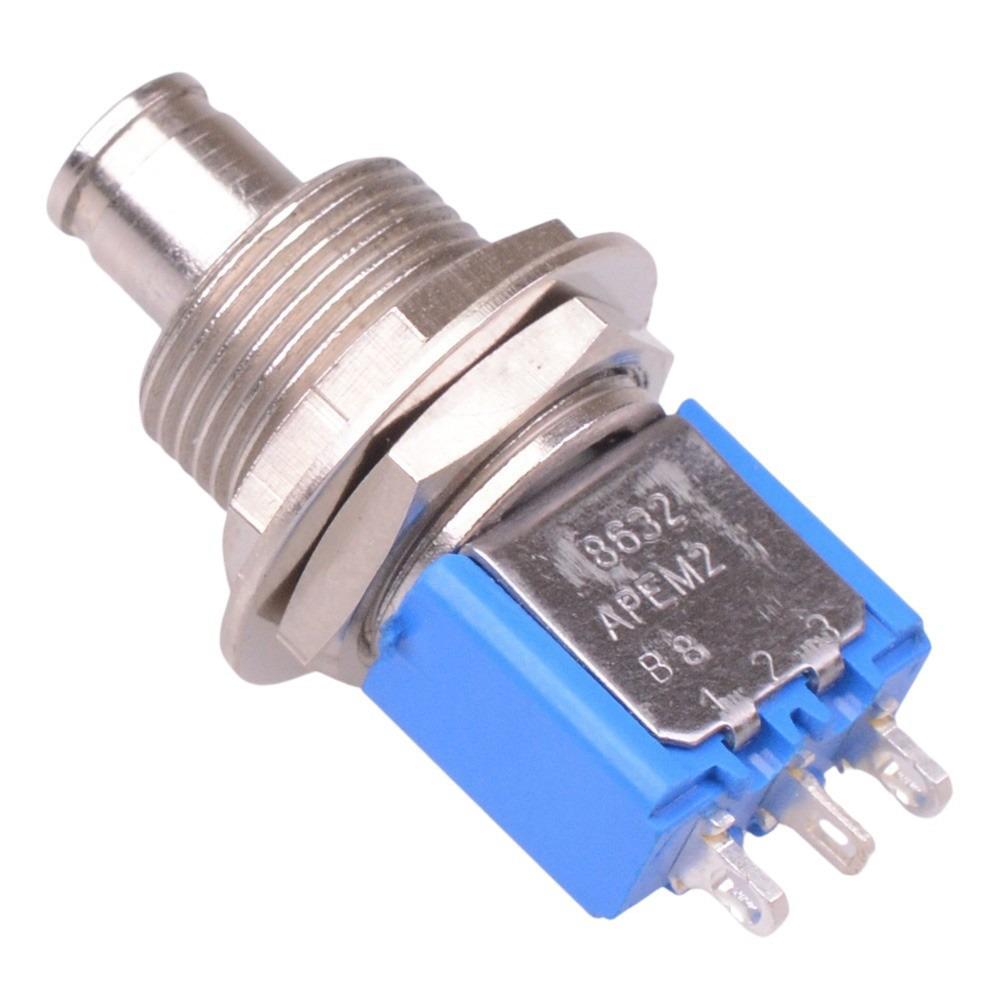

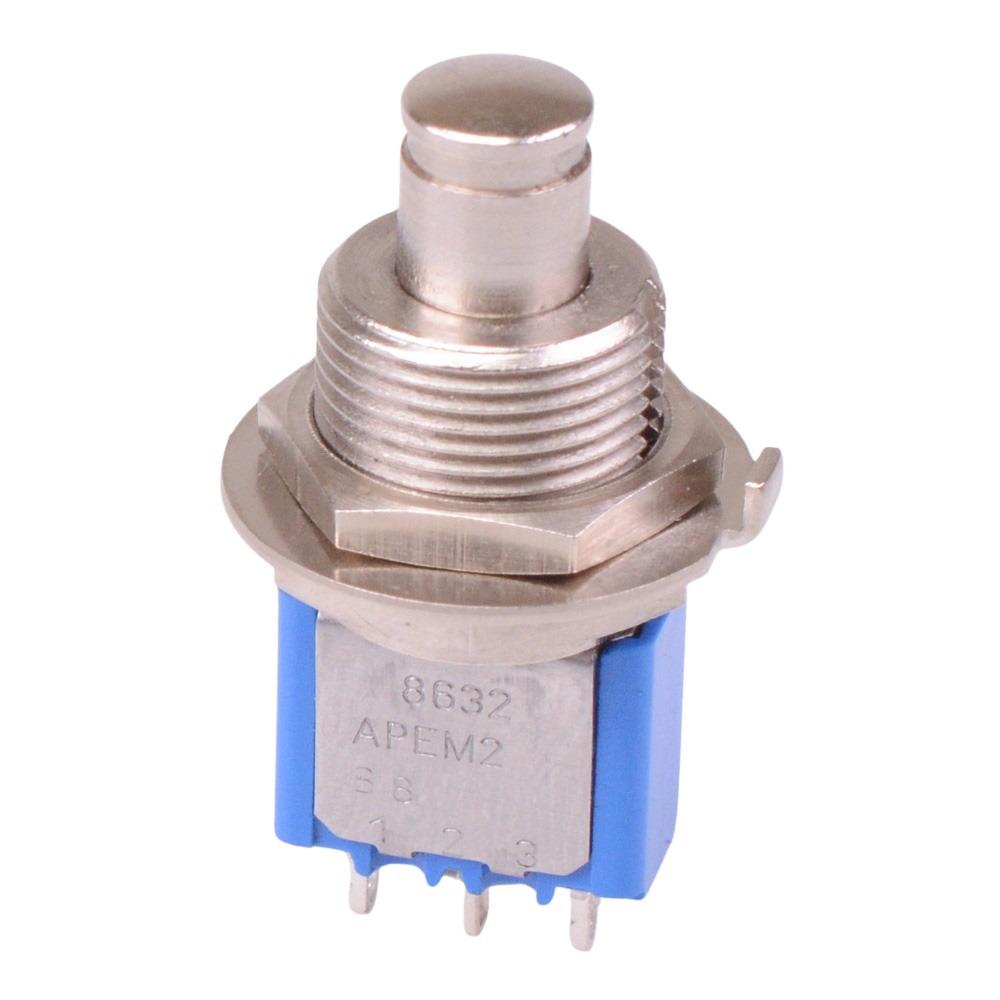

8632A-6X718 APEM On-(On) Momentary Miniature Push Button Switch SPDT 4A 30VDC APEM

The 8632A-6X718 is a momentary miniature push button switch featuring SPDT contacts and standard 11.9mm bushing. The switch features a 4A 30VDC rating and solder lug terminals making it suitable for a wide range of low voltage applications.

On-(On) momentary action

SPDT contacts

11.9mm bushing

7mm bushing height

Solder lug terminals

Rating: 4A 30VDC, 6A 125VAC, 3A 250VAC

Panel cut-out: 12.5mm

Dimensions: 35.2 x 10 x 13.2mm (height x width x depth)
