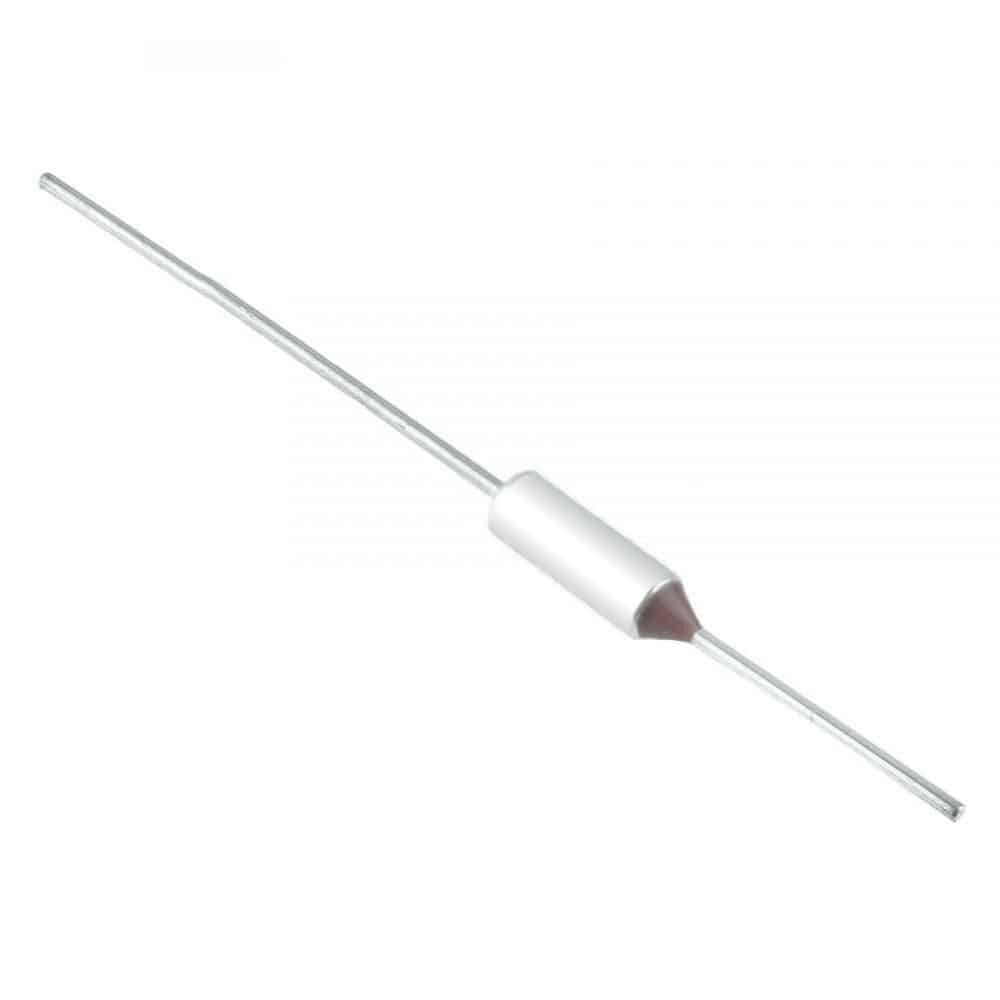

84°C Thermal Fuse

84°C Thermal Fuse

Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop

Regular price £1.79
Regular price Sale price £1.79
Sale Sold out
Shipping calculated at checkout.
Contact us for availability
Order Code: 14-067

Thermal fuse provides protection for your electrical appliances by interrupting the circuit if the operating temperature is exceeded. The fuse has rigid connections and is suitable for surface or panel mounting applications.

Specifications
Voltage250V
Current10A
Contact Resistance≤28mΩ
Insulation Resistance>2MΩ
Leakage Current≥0.2mA
Dielectric Strength1500VAC @ 1 Min
ContactsNormally Closed
Length66.5mm
Body Diameter4.2mm
Body Length11mm
Terminal TypeAxial
