6V DC 10A SPDT PCB Relay 250V AC
6V DC 10A SPDT PCB Relay 250V AC
Regular price
£3.49
Regular price
Sale price
£3.49
Order Code: 04-152
Delivery calculated at checkout.
Quantity
Low stock: 1 left
Couldn't load pickup availability
Product Description

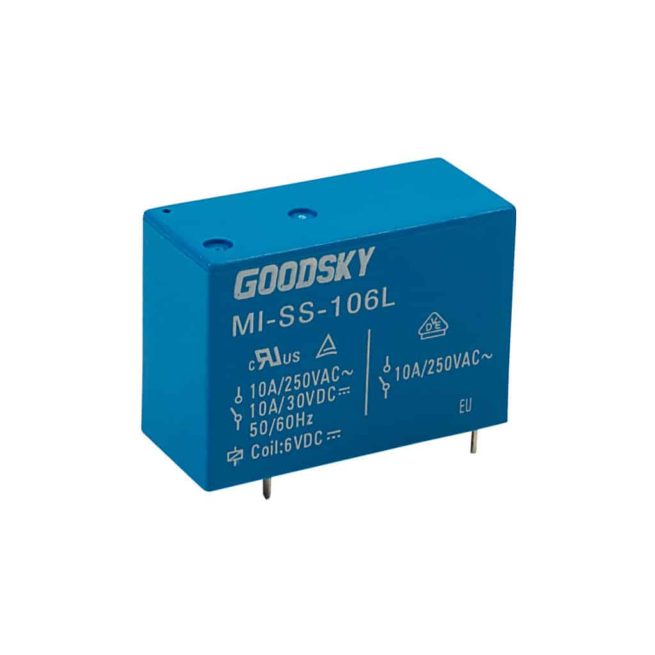

Vertical PCB or socket mounting general purpose 6V DC SPDT relay. Rated at 10A 250V AC with 5kV insulation and 8mm creepage and clearance.
Specifications
| Coil Voltage (DC) | 6V |
| Switching Voltage Max (AC) | 250V |
| Switching Current Max | 10A |
| Contacts | SPDT |
| Switching Power | 2500VA |
| Coil Resistance | 68Ω |
| Coil Current | 120mA |
| Operating Temperature | -30 to +55°C |

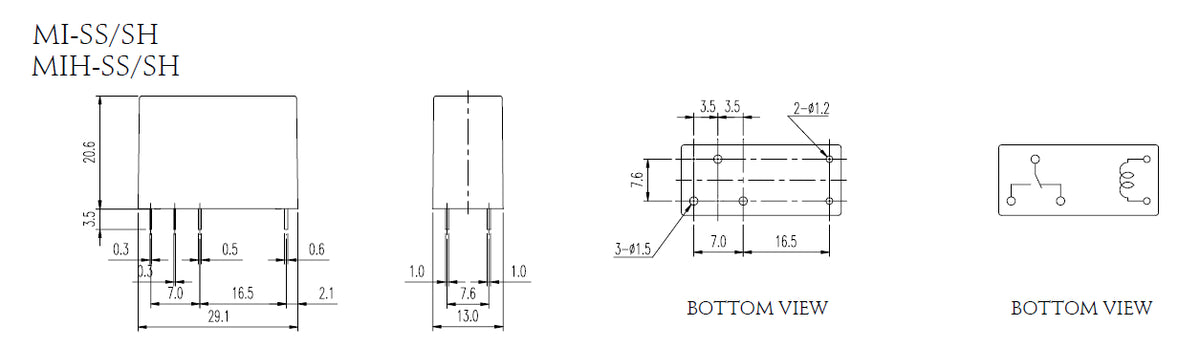

| Mounting | PCB (3.5mm pitch) |
| Insulation | 5KV |
| Dimensions (LxWxH) | 29.1mm x 13mm x 20.6mm |
