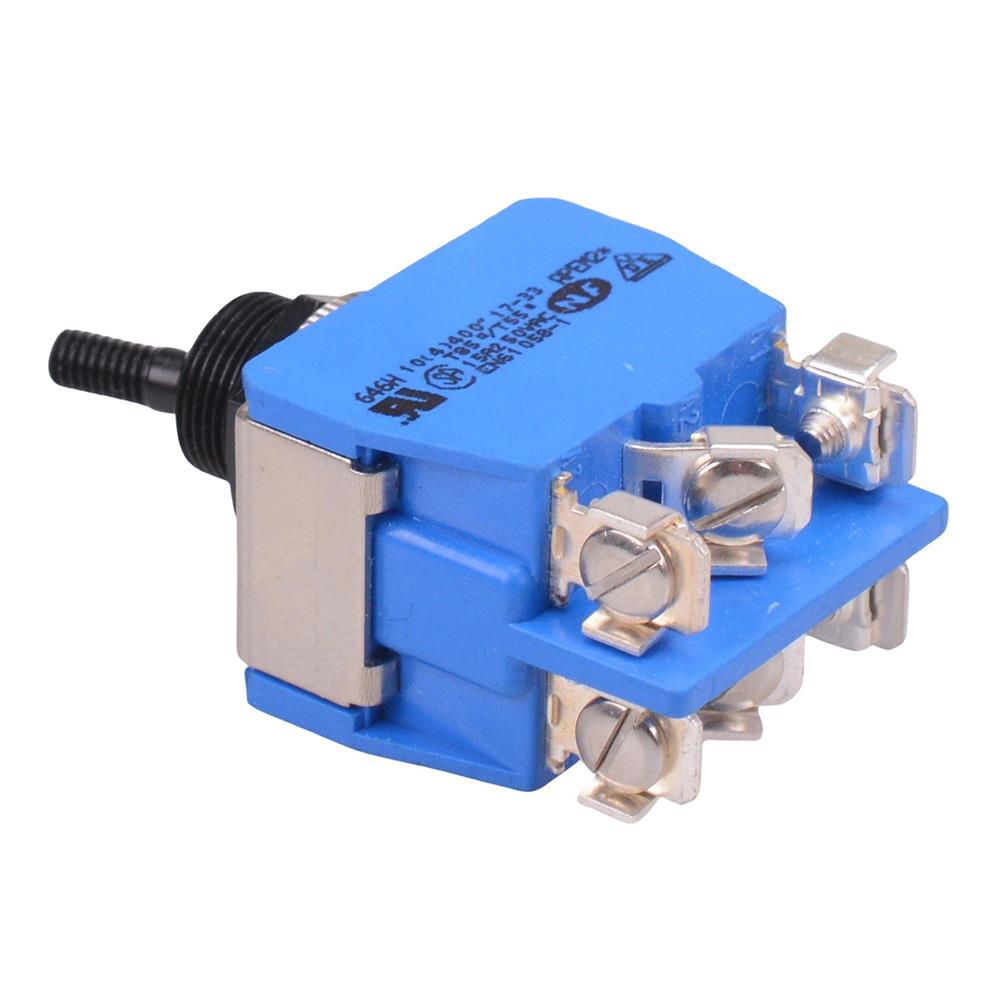

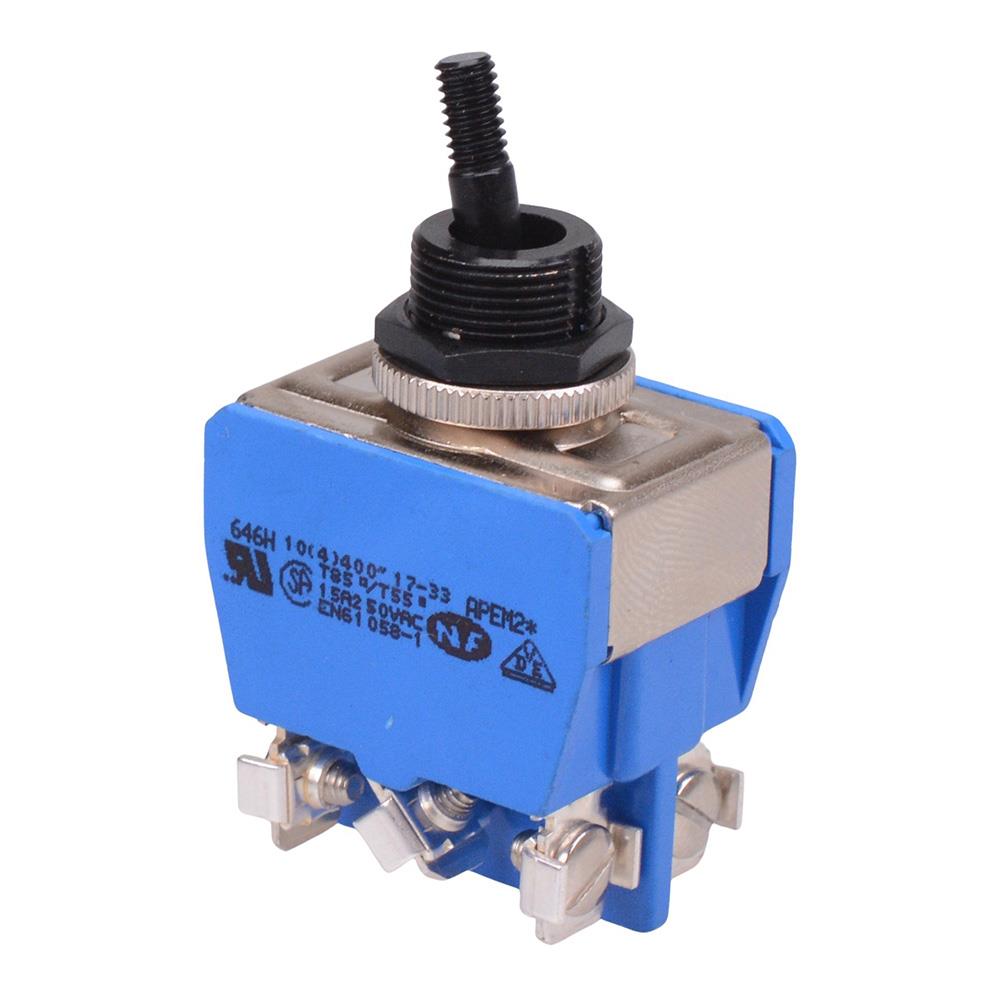

646HGX2330 APEM On-On 12mm Toggle Switch DPDT 15A 250VAC

The 646HX2330 is a high amperage On-On toggle switch featuring a threaded lever and DPDT contacts. The switch features screw terminals and are popular for a wide range of applications due to there reliability and rugged design.

On-On operation

DPDT contacts

Screw terminals

Threaded 4x0.75mm lever

Black 12x0.75mm bushing

Rating: 10A 250VAC

Panel cut-out: 12.2mm

Maximum panel thickness: 4.5mm

UL, CSA and NF-VDE approved
