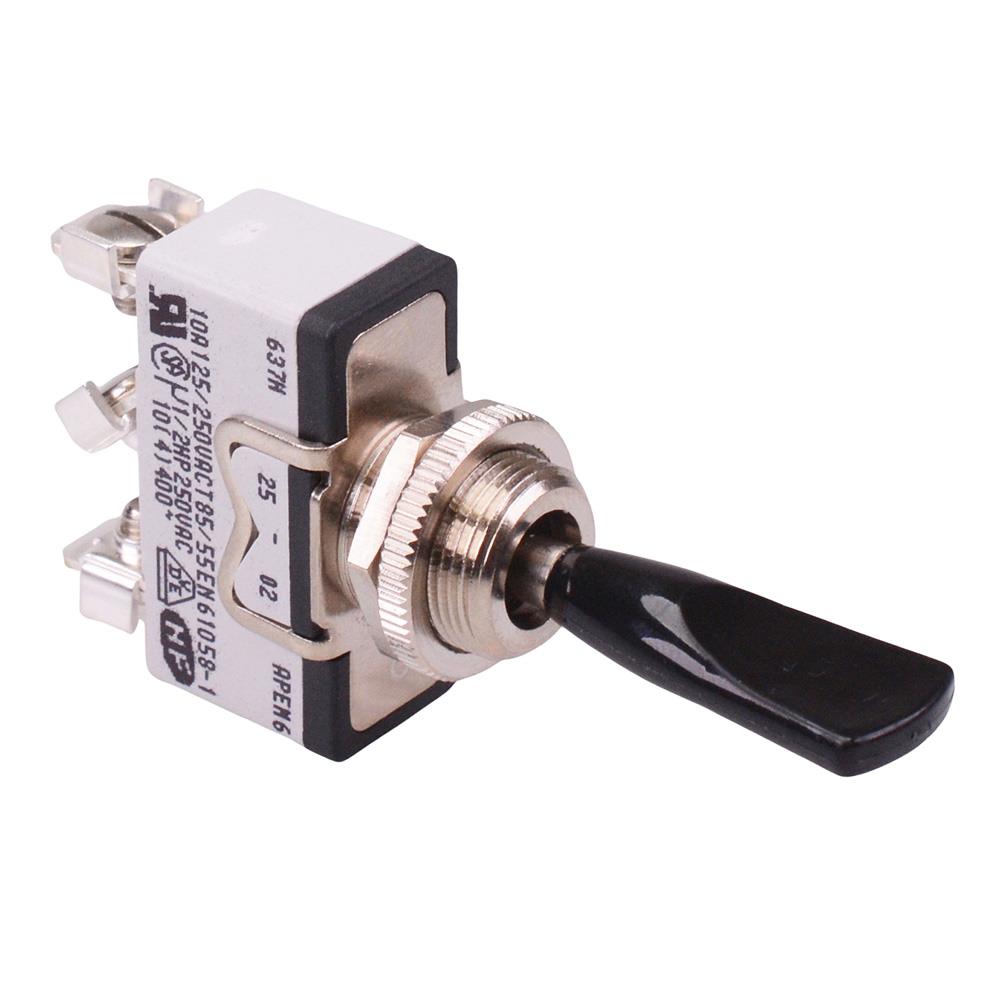

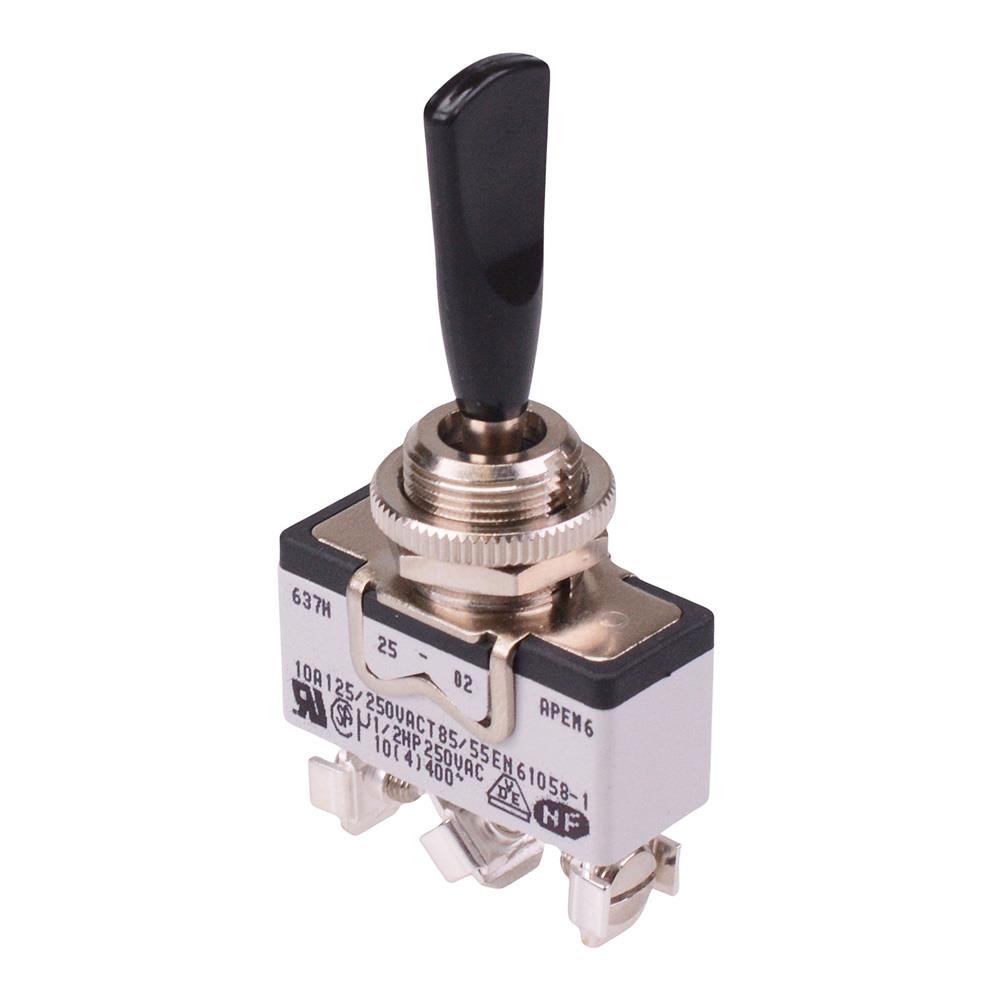

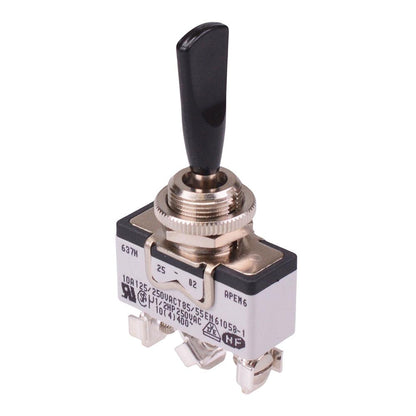

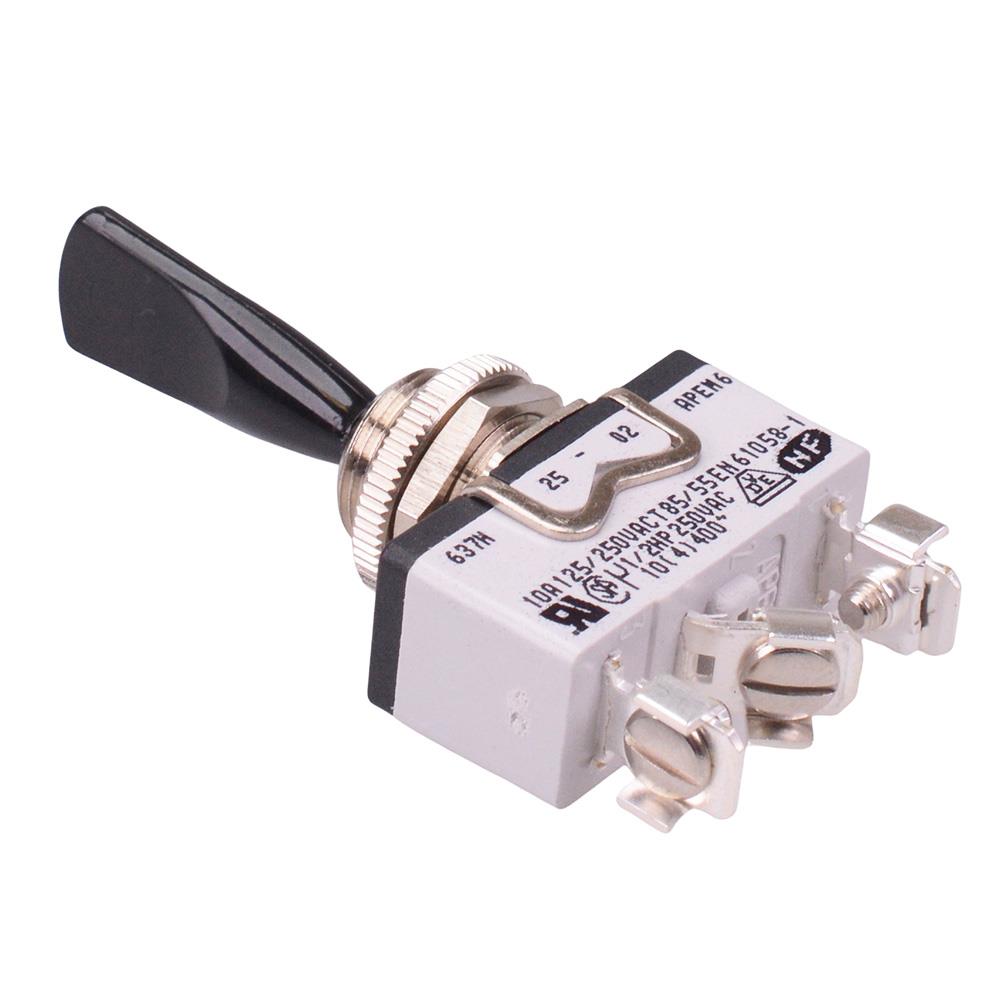

637HX2595 (On)-Off-(On) Momentary Black Duckbill Lever 12mm Toggle Switch SPDT 15A APEM

637HX2595 (On)-Off-(On) Momentary Black Duckbill Lever 12mm Toggle Switch SPDT 15A APEM

£15.87
£13.11 £15.87
Sale Sold out

Order Code: 490494

Delivery calculated at checkout.
Available Online Only

2 in stock
View full details

Product Description

The 637HX2595 is a high amperage (On)-Off-(On) momentary toggle switch featuring a robust construction and SPDT contacts. The switch features screw terminals and duckbill lever making it popular for a wide range of applications including automotive and marine.

  • (On)-Off-(On) momentary operation
  • SPDT contacts
  • Screw terminals
  • Rating: 15A 125VAC, 12A 250VAC, 5A 24VDC
  • Peak current: 30A max. during 1/2 sine, 250VAC
  • Panel cut-out: 12.2mm
  • Maximum panel thickness: 4.5mm
  • Dimensions: 62.8 x 29.5 x 14mm (height x width x depth)
  • UL, CSA and NF-VDE approved
