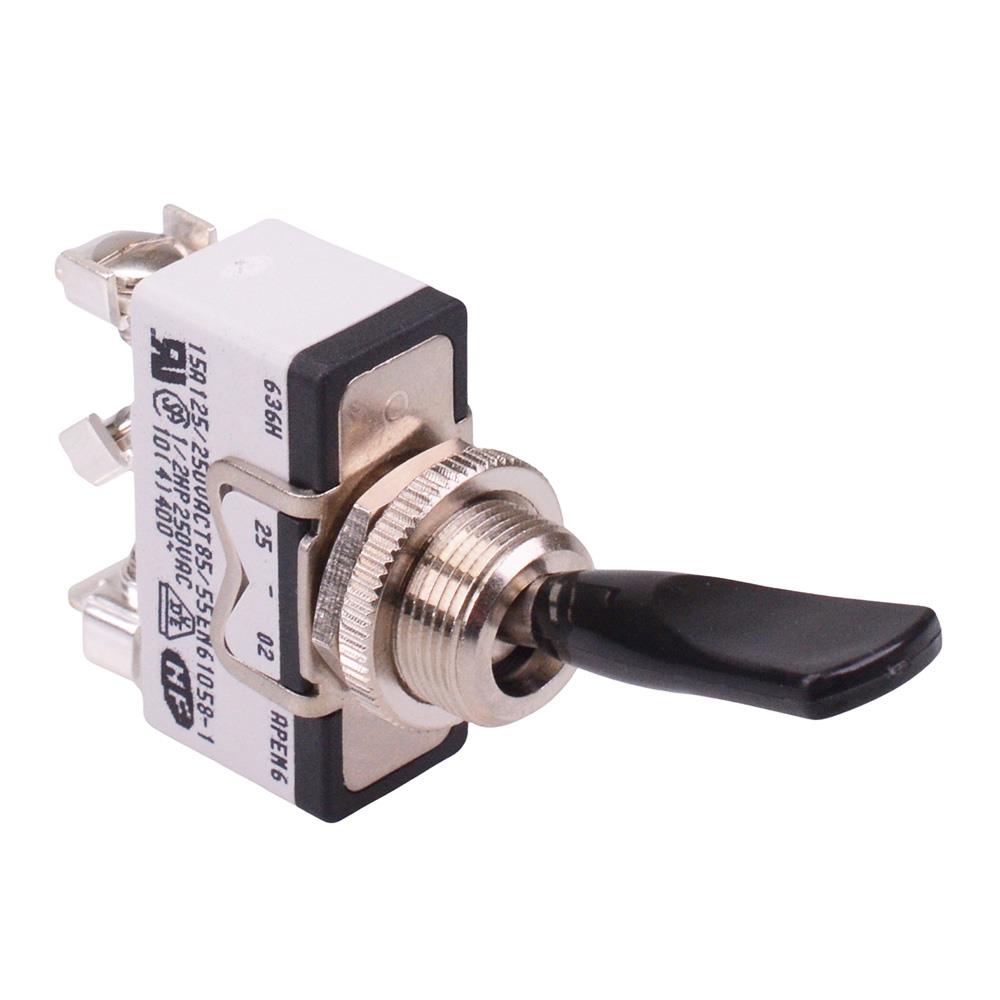

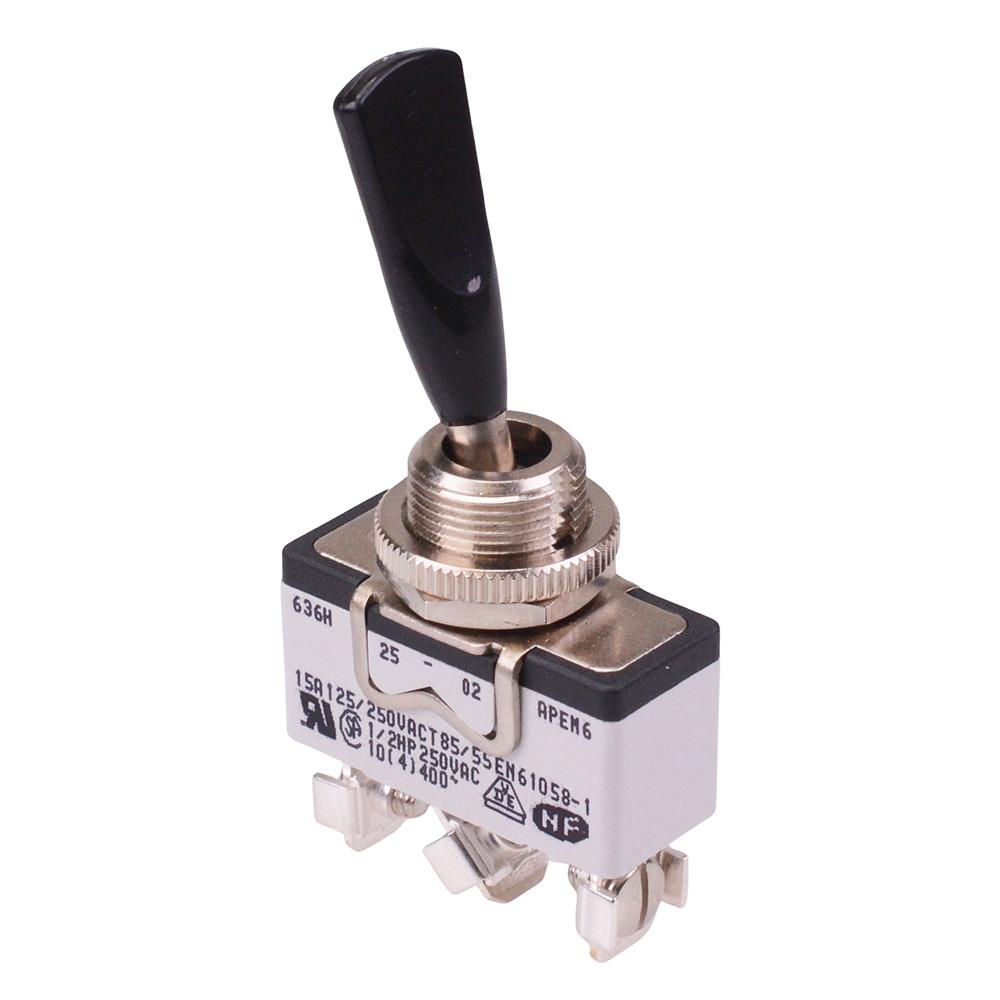

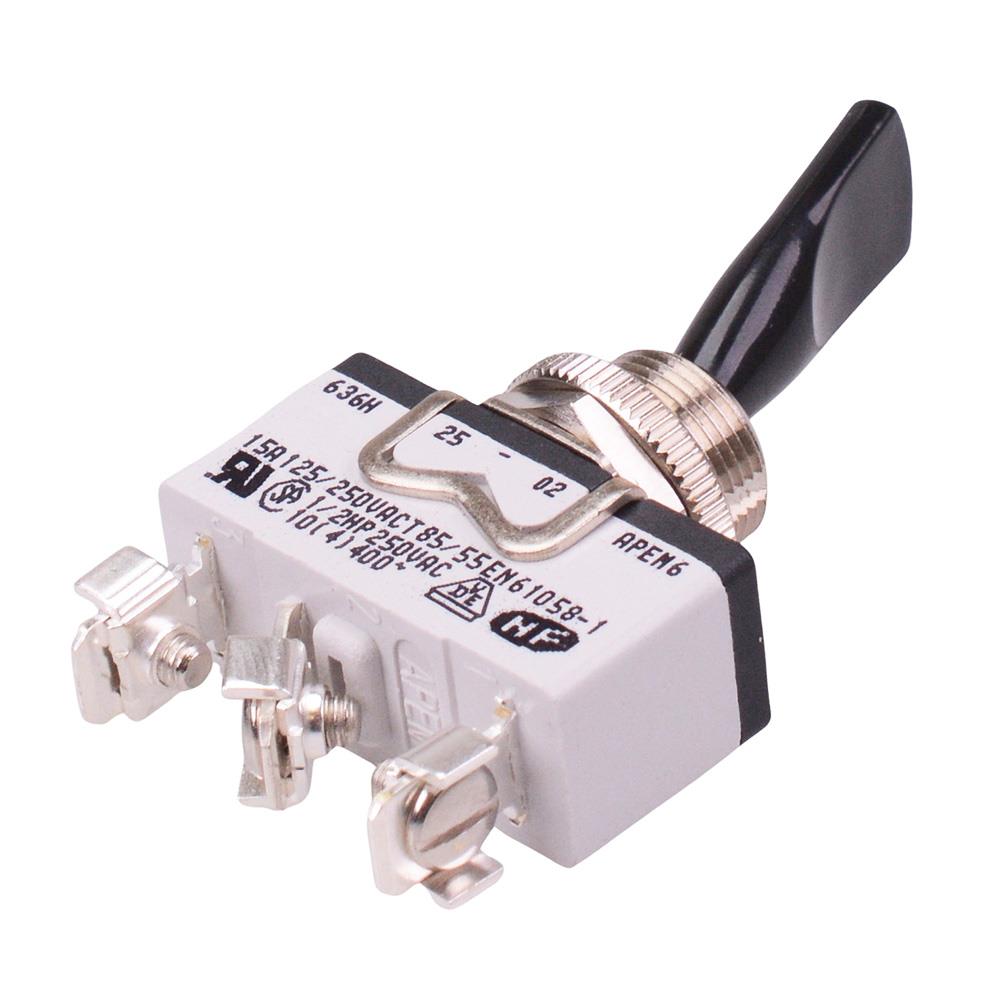

636HX2595 On-On Black Duckbill Lever 12mm Toggle Switch SPDT 15A APEM

The 636HX2595 is a high amperage On-On toggle switch featuring a robust construction and SPDT contacts. The switch features screw terminals and duckbill lever making it popular for a wide range of applications including automotive and marine.

On-On operation

SPDT contacts

Screw terminals

Rating: 15A 250VAC, 10A 24VDC, 15A 12VDC

Peak current: 30A max. during 1/2 sine, 250VAC

Panel cut-out: 12.2mm

Maximum panel thickness: 4.5mm

Dimensions: 62.8 x 29.5 x 14mm (height x width x depth)

UL, CSA and NF-VDE approved
