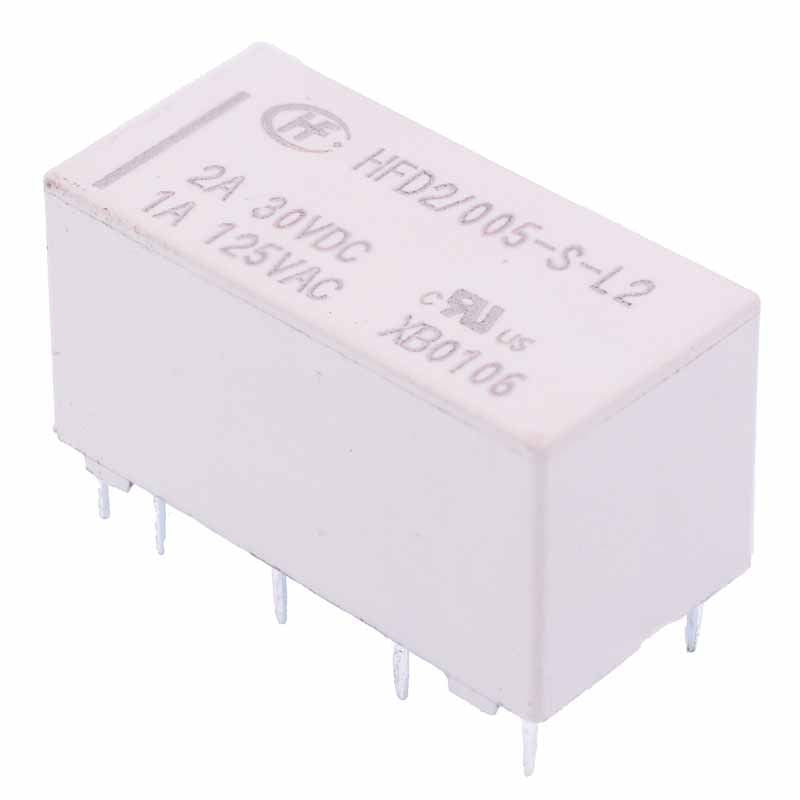

5V Miniature Latching Relay DPDT HFD2/005-S-L2

5V miniature latching relay manufactured by HongFa featuring DPDT contacts and high sensitivity. The relay is epoxy sealed and is compatible with standard 16-pin IC sockets or through hole PCB mounting.

Coil Voltage: 5VDC

Maximum switching current: 3A

Maximum switching voltage: 220VDC / 250VAC

Contact rating: 2A 30VDC / 1A 125VAC

Coil power: 150mW

Dimensions: 20.2 x 10 x 10.2mm (L x W x H)
