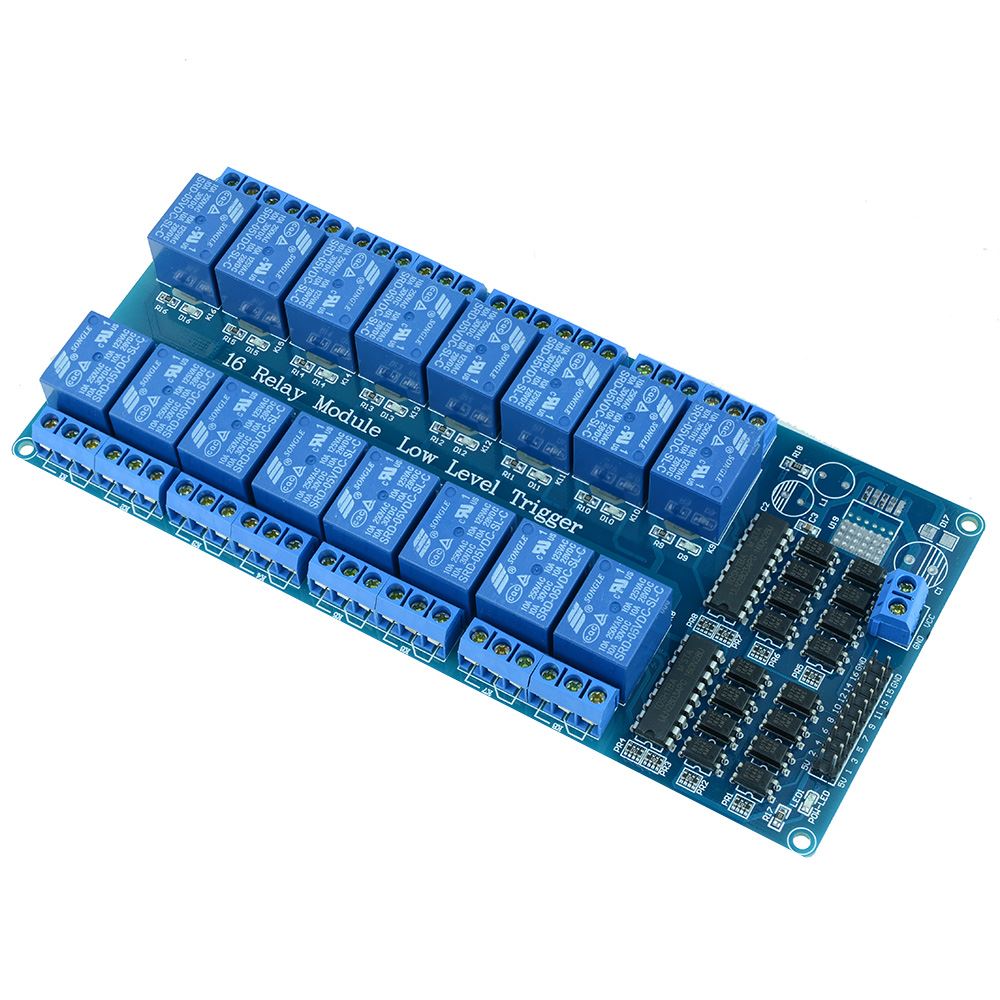

5V 16-Channel Relay Board Module Low Trigger

5V 16-Channel Relay Board Module Low Trigger

£35.45
£31.26 £35.45
Sale Sold out

Order Code: 309026

Delivery calculated at checkout.
Available Online Only

49 in stock
View full details

Product Description

Active low relay board with 5V relays capable of being switched on-off by an opto-isolated digital input. The relays are controlled by a microcontroller connected to the output pin and require a minimum 1V to switch the inputs ON. Suitable for 5V and 3.3V devices, these boards are perfect for Raspberry Pi, Arduino, PIC and various other microcontrollers.

  • 16 Channel
  • Maximum switching voltage: 250VAC / 30VDC
  • Maximum switching current: 10A
  • Module operating voltage: 5V
  • Each relay features an LED indicator
  • Dimensions: 179 x 80 x 19mm (Length x Width x Height)
