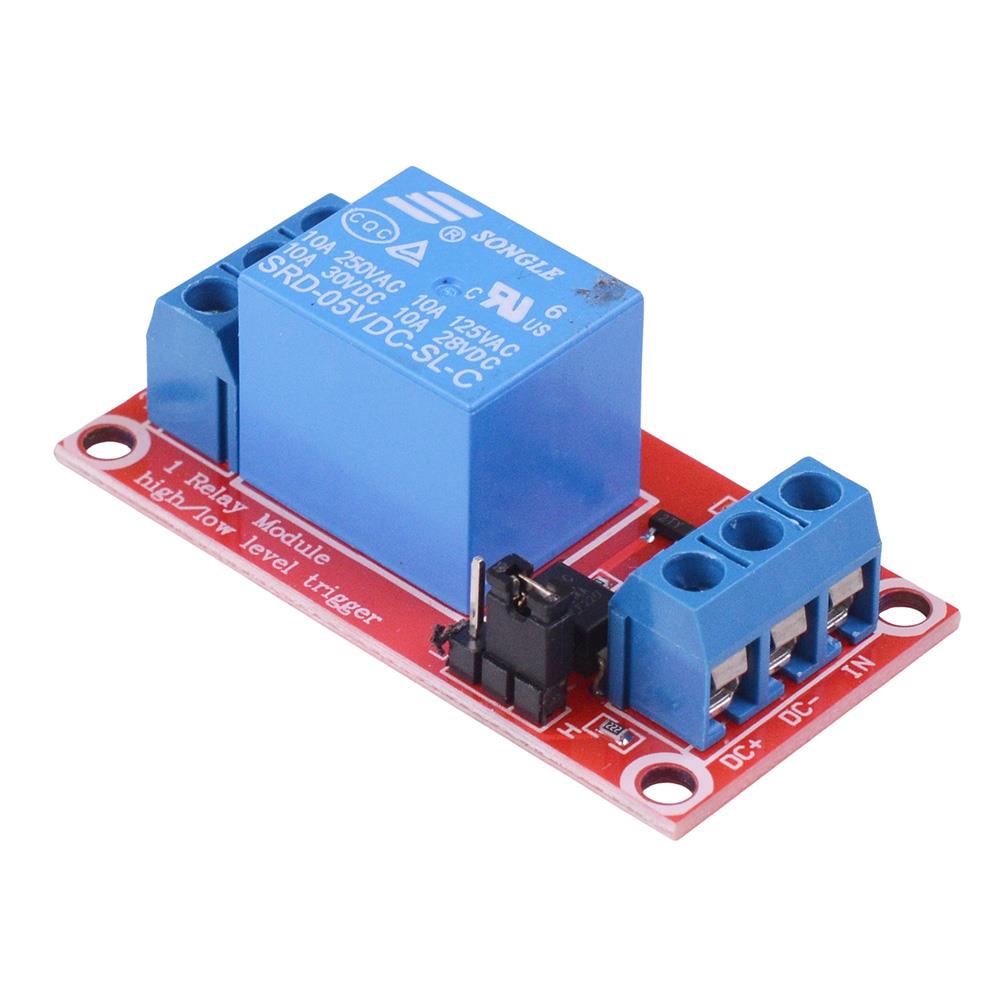

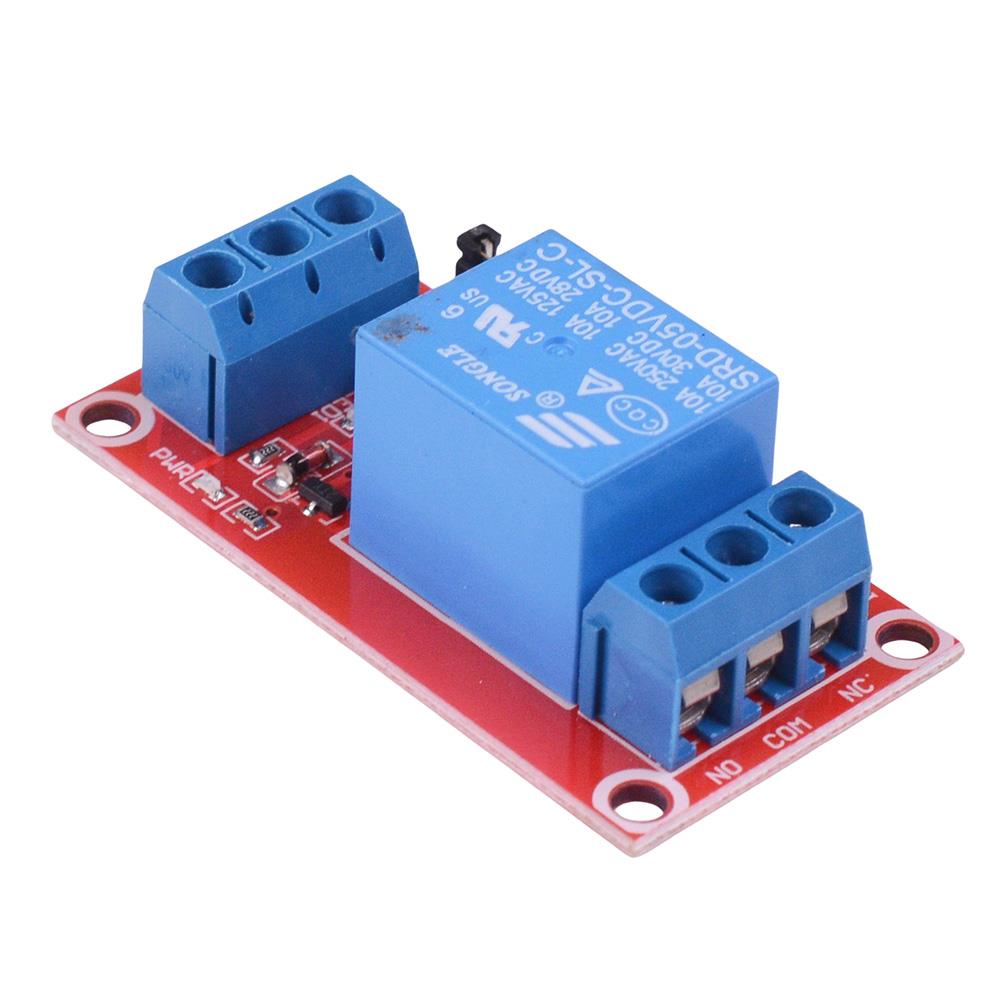

5V 1 Channel Relay Board Module Active Low - Terminal Blocks

1 channel active low relay board with 5V relays capable of being switched on-off by an opto-isolated digital input. The relays are controlled by a microcontroller connected to the output pin and require a minimum 1.5V to switch the inputs ON. The modules can be controlled directly by a microcontroller and are suitable for 5V applications.

1 Channel

Maximum switching voltage: 250VAC / 30VDC

Maximum switching current: 10A

Module operating voltage: 5V

Each relay features an LED indicator

Dimensions: 53 x 18 x 19mm (Length x Width x Height)
