Product Description

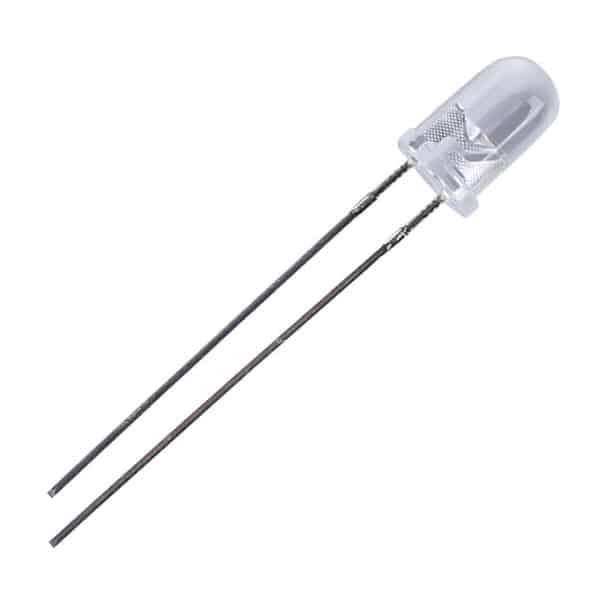

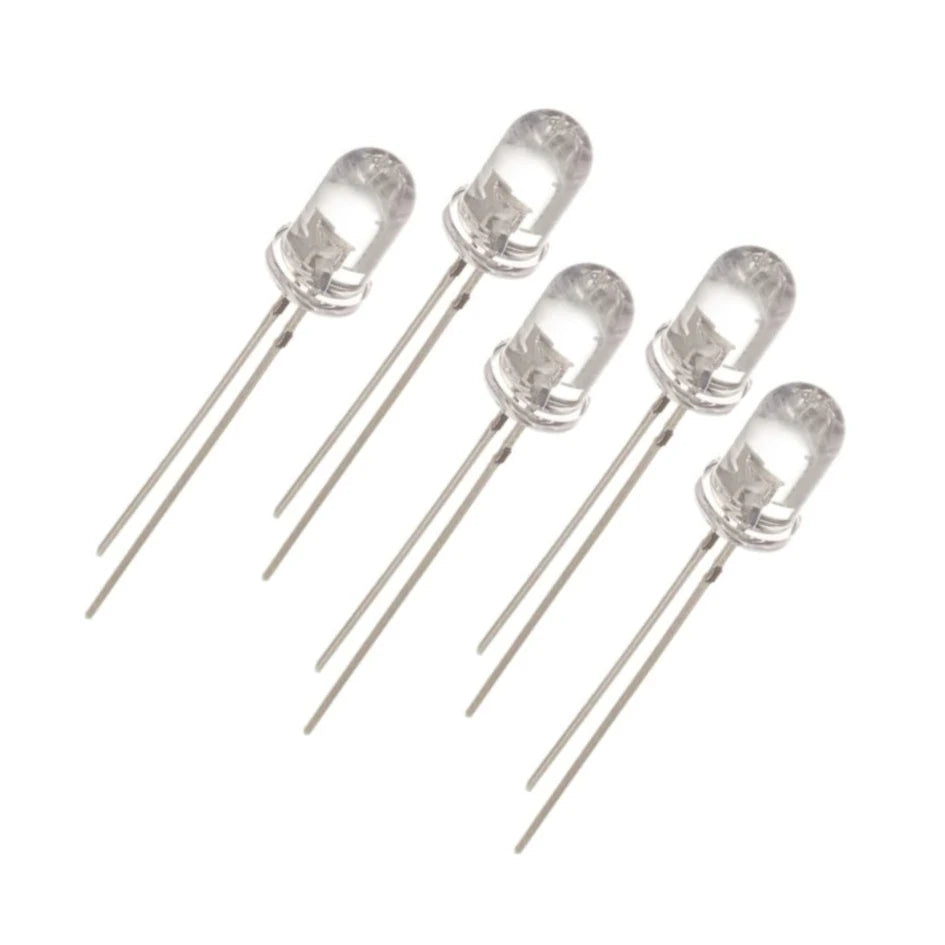

This T1 3/4 (5mm) 3.5V 2200mcd blue LED employs the latest technology to produce a lamp that is highly visible and therefore suitable for a wide variety of applications. The rugged design adds to the long life reliability. Overall, these LEDs, along with low power consumption, offer excellent value and are a clear leader in their field. Cathode identified by flat on body.
Suitable for signalling applications and as an alternative to filament lamps. General purpose leads. Reliable and rugged. Long life solid state reliability. IC compatible. RoHS compliant.
Specifications
| Colour / Type | Blue Clear |
| Size | 5mm |
| Forward Voltage Minimum | 3.5V |
| Forward Voltage Maximum | 4V |
| Reverse Voltage | 5V |
| Forward Current | 30mA |
| DC Reverse Current | 10uA |
| Power dissipation | 105mW |
| Brightness | 2200mcd |
| Wavelength | 470nm |
