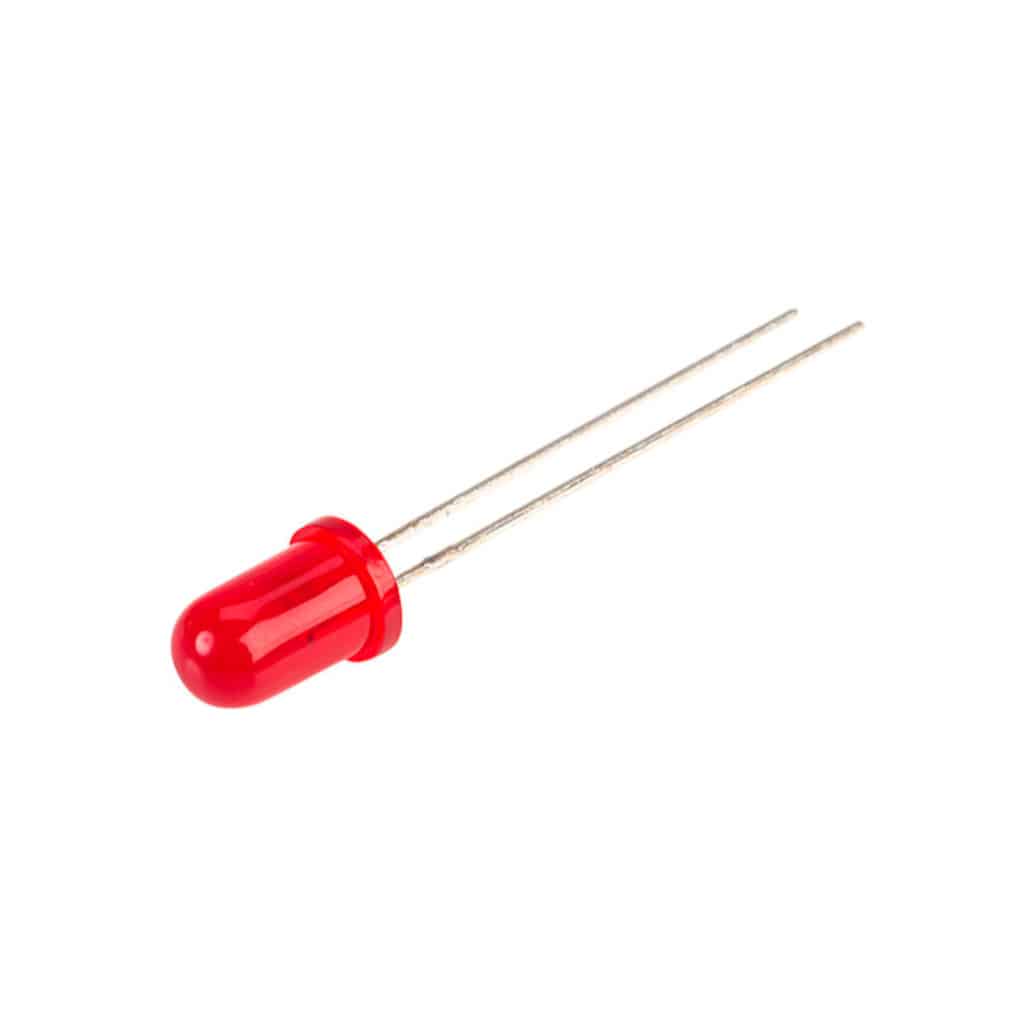

5mm 12V Red LED Diode, 3 Pack
5mm 12V Red LED Diode, 3 Pack
Regular price
£2.49
Regular price
Sale price
£2.49
Order Code: 04-126
Delivery calculated at checkout.
Quantity
Couldn't load pickup availability
Product Description
Miniature solid state 5mm 12V high efficiency red LED. Inbuilt series resistor enabling the LED to be directly connected to a 12V supply line. Low power consumption, reliable and rugged, long life, solid state reliability.
Specifications
| Colour / Type | Red Diffused |
| Size | 5mm |
| Forward Voltage Minimum | 12V |
| Forward Voltage Maximum | 30V |
| Reverse Voltage | 5V |
| Forward Current | Min 8.5mA Max 11.5mA |
| DC Reverse Current | 10uA |
| Pulse forward current | |
| Power dissipation | 120 mW |
| Brightness | 30mcd |
| Viewing Angle | 30° |
| Wavelength | 625nm |
| Working Temperature | -40°C to +70°C |
