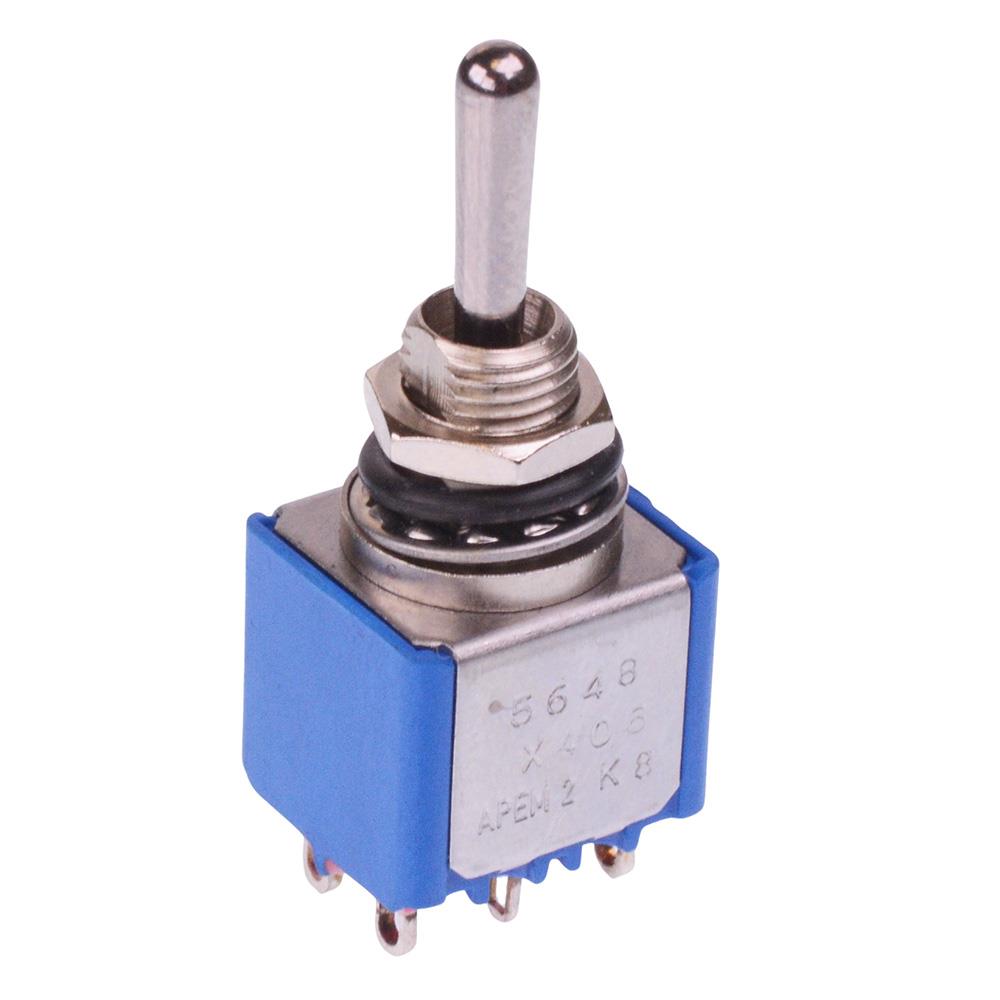

5648AB13X408 APEM On-Off-(On) Momentary 6.35mm Miniature Toggle Switch DPDT 4A 30VDC

The 5648AB13X408 is a miniature toggle switch featuring a 6.35mm bushing and On-Off-(On) momentary DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.

DPDT contacts

On-Off-(On) momentary operation

Solder terminals

Lever: round 12.5mm length

Rating: 4A 30VDC

Panel cut-out: 6.5mm

Epoxy sealed terminals

APEM 5000 series
