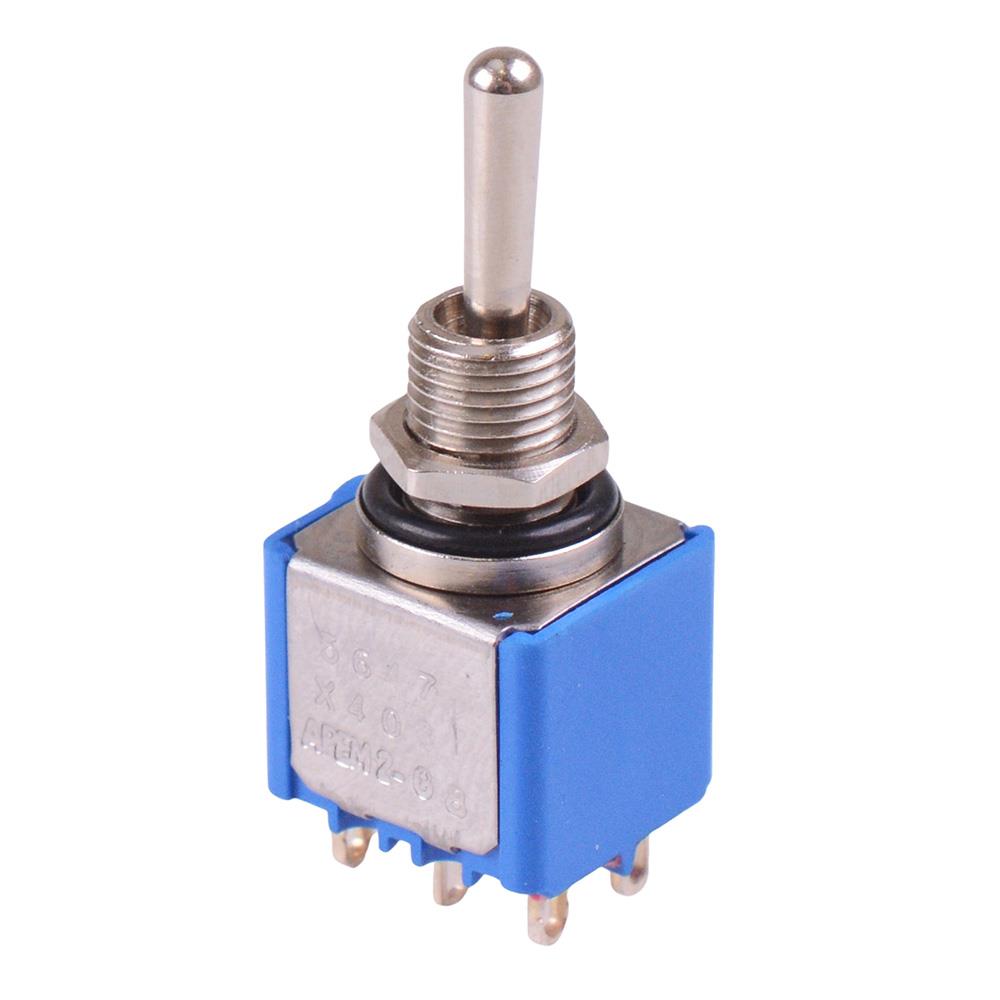

5647ABX408 APEM (On)-Off-(On) Momentary Miniature Toggle Switch DPDT

The 5647ABX408 is a miniature toggle switch featuring (On)-Off-(On) DPDT contacts and black finish, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

Solder lug terminals

Contact rating: 4A 30VDC

Panel cut-out: 6.5mm

10.5mm length lever

Silver contacts

Epoxy sealed terminals

Front panel sealing by two O-rings

Dimensions: 34.2 x 12.0 x 13.2mm (height x depth x length)

UL, CSA, CECC approved

APEM 5000 series
