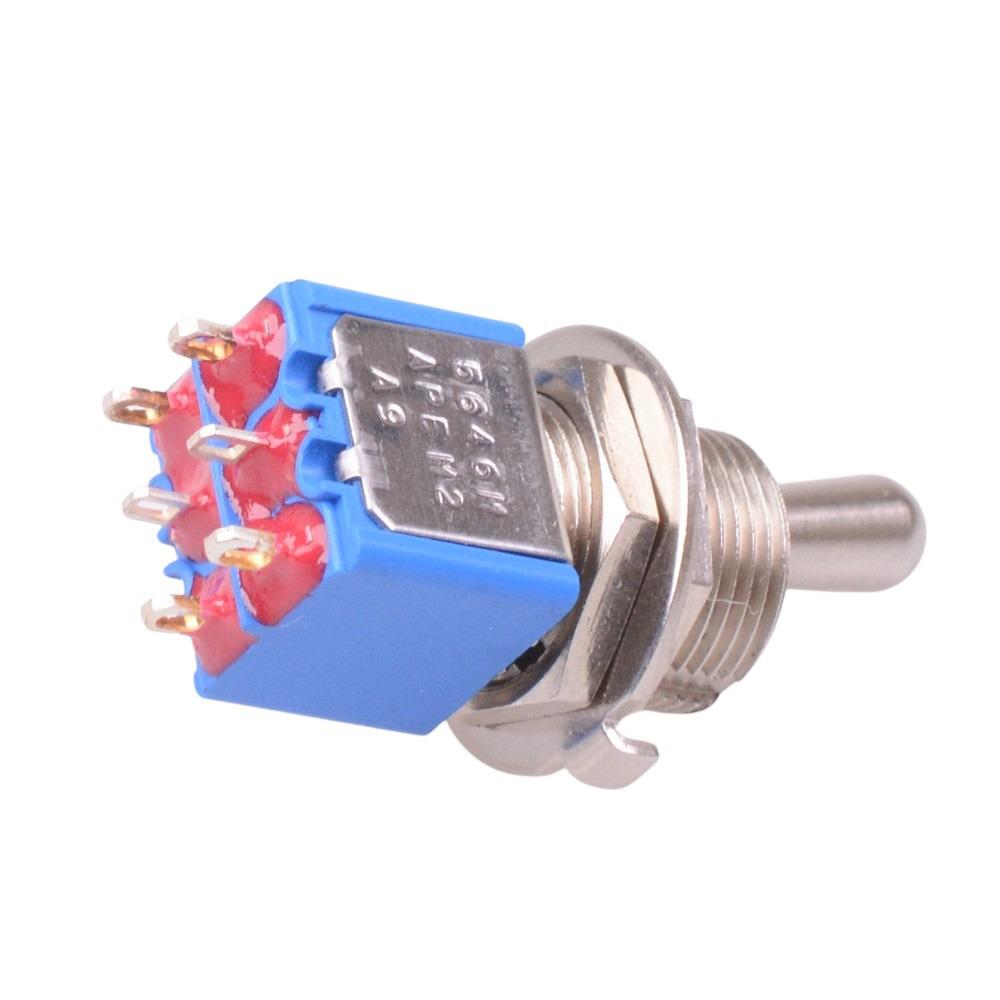

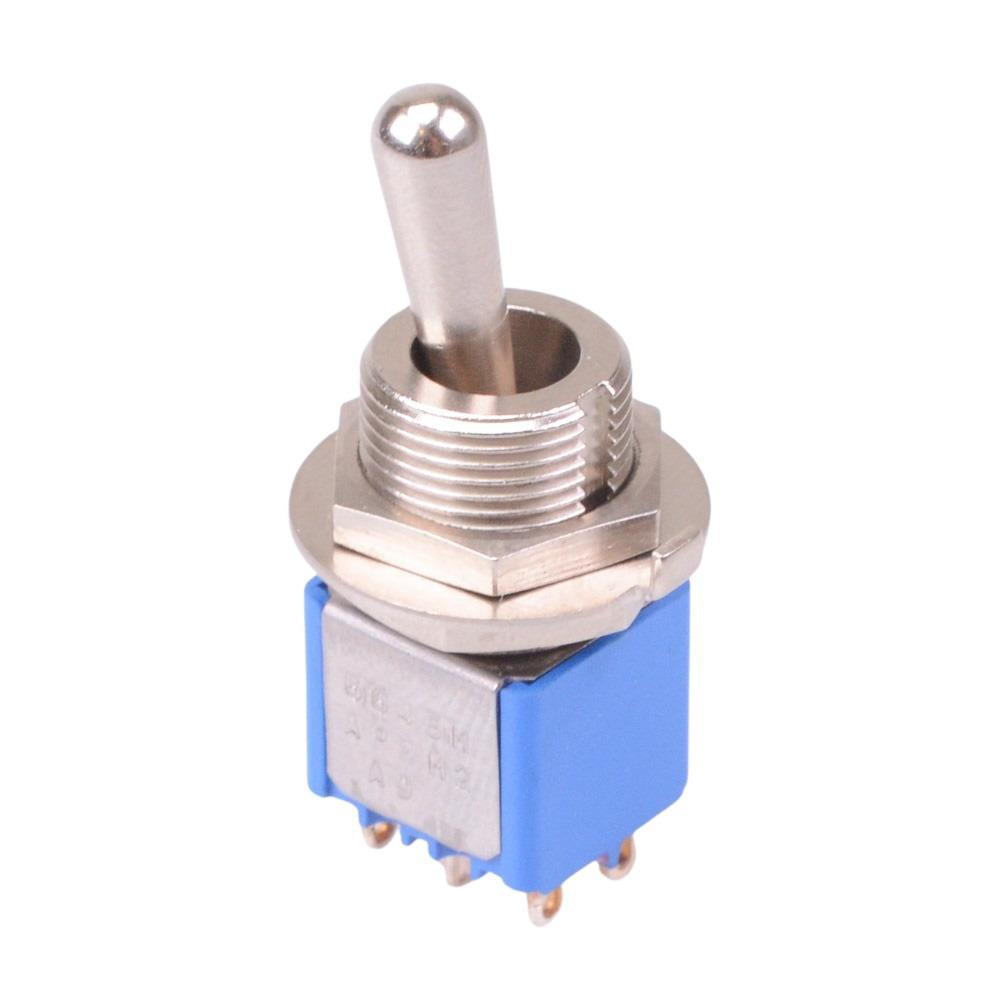

5646MAB-27 APEM On-On Miniature Toggle Switch 11.9mm Bushing DPDT

The 5646MAB-27 is a miniature toggle switch featuring On-On DPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 11.9mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

Solder lug terminals

Contact rating: 4A 30VDC

Panel cut-out: 12.5mm

Silver contacts

Epoxy sealed terminals

11.7mm round lever

Dimensions: 38.3 x 12.0 x 13.2mm (height x depth x length)

UL, CSA, CECC approved

APEM 5000 series
