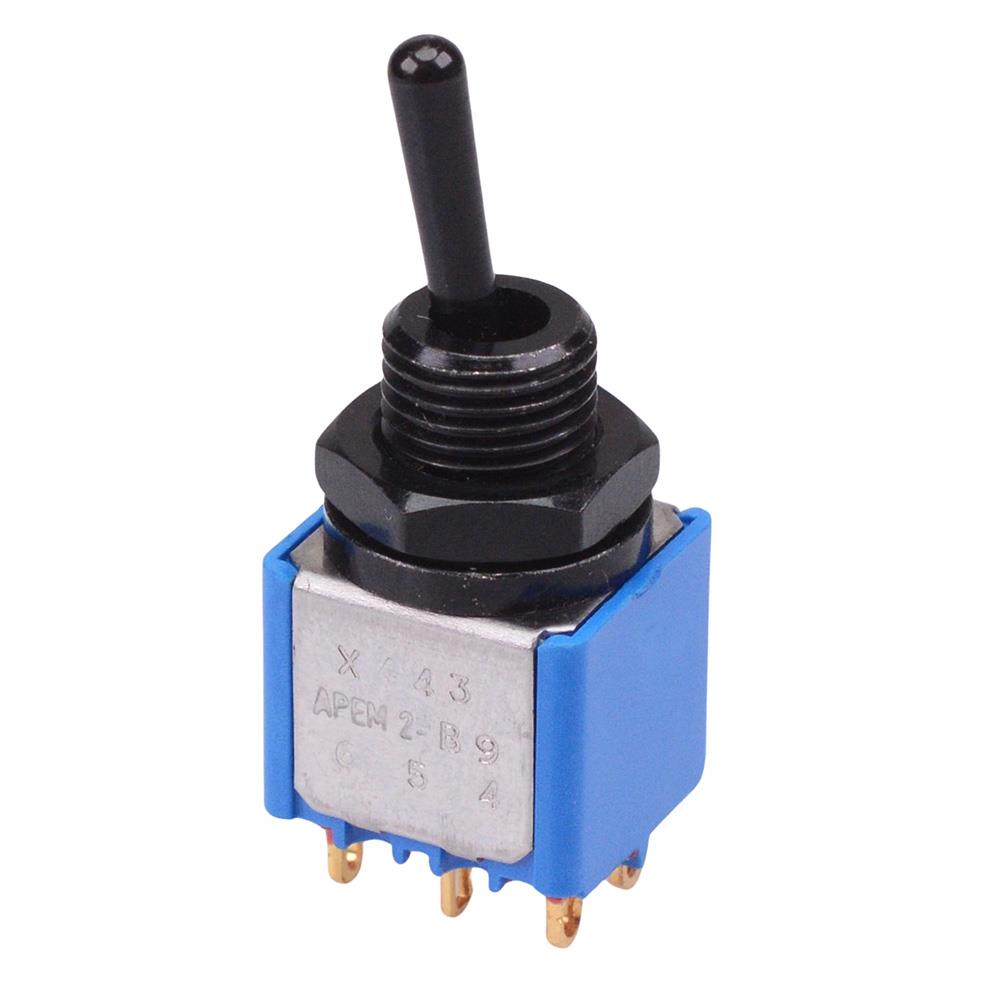

5646AD2GBX443 APEM Black On-On Miniature Toggle Switch Sealed DPDT

The 5646AD2GBX443 is a miniature black toggle switch featuring On-Off DPST contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 8mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

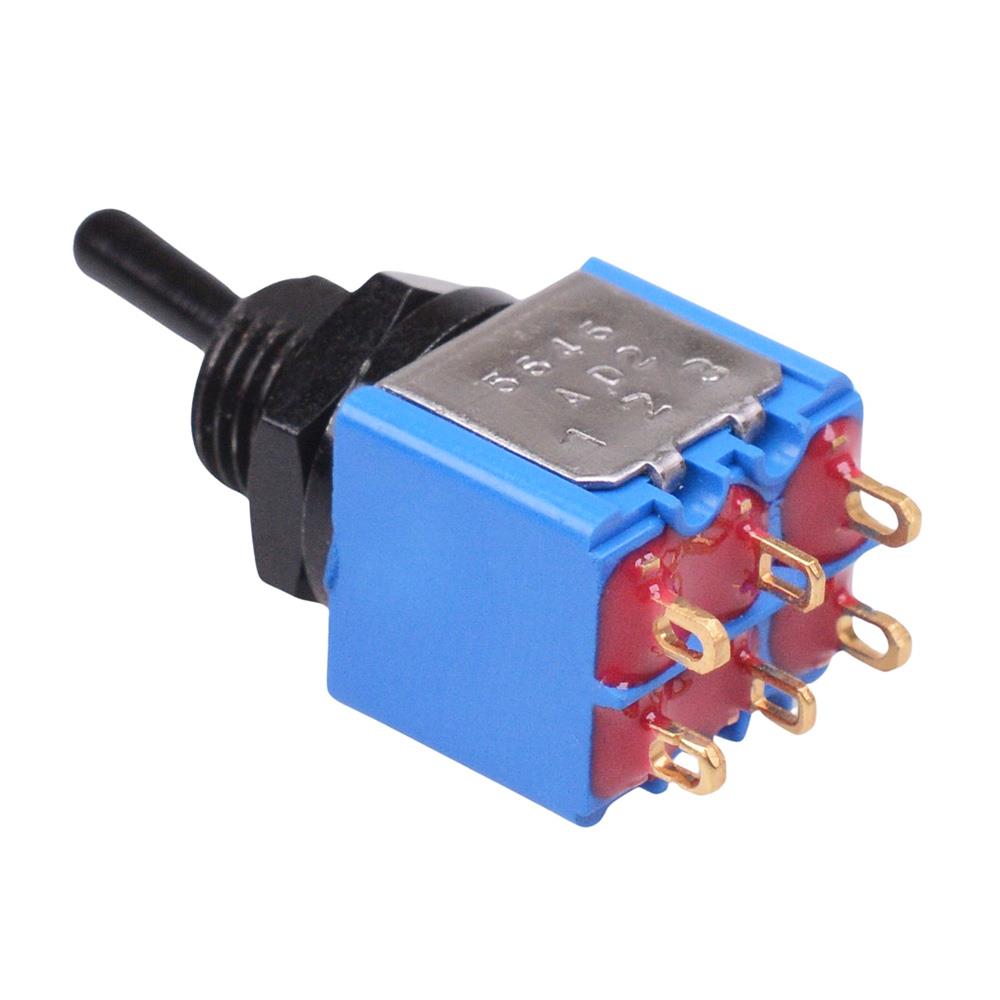

Solder lug terminals

Contact rating: 4A 30VDC

Panel cut-out: 8mm

Gold plated silver contacts

Epoxy sealed terminals

Round 10.5mm round lever

Dimensions: 33.3 x 12.0 x 13.2mm (height x depth x length)

UL, CSA, CECC approved

APEM 5000 series
